Asus ts700-e7-rs8 [182/198] Chapter 7

7-22

Chapter 7: Driver installation

Chapter 7

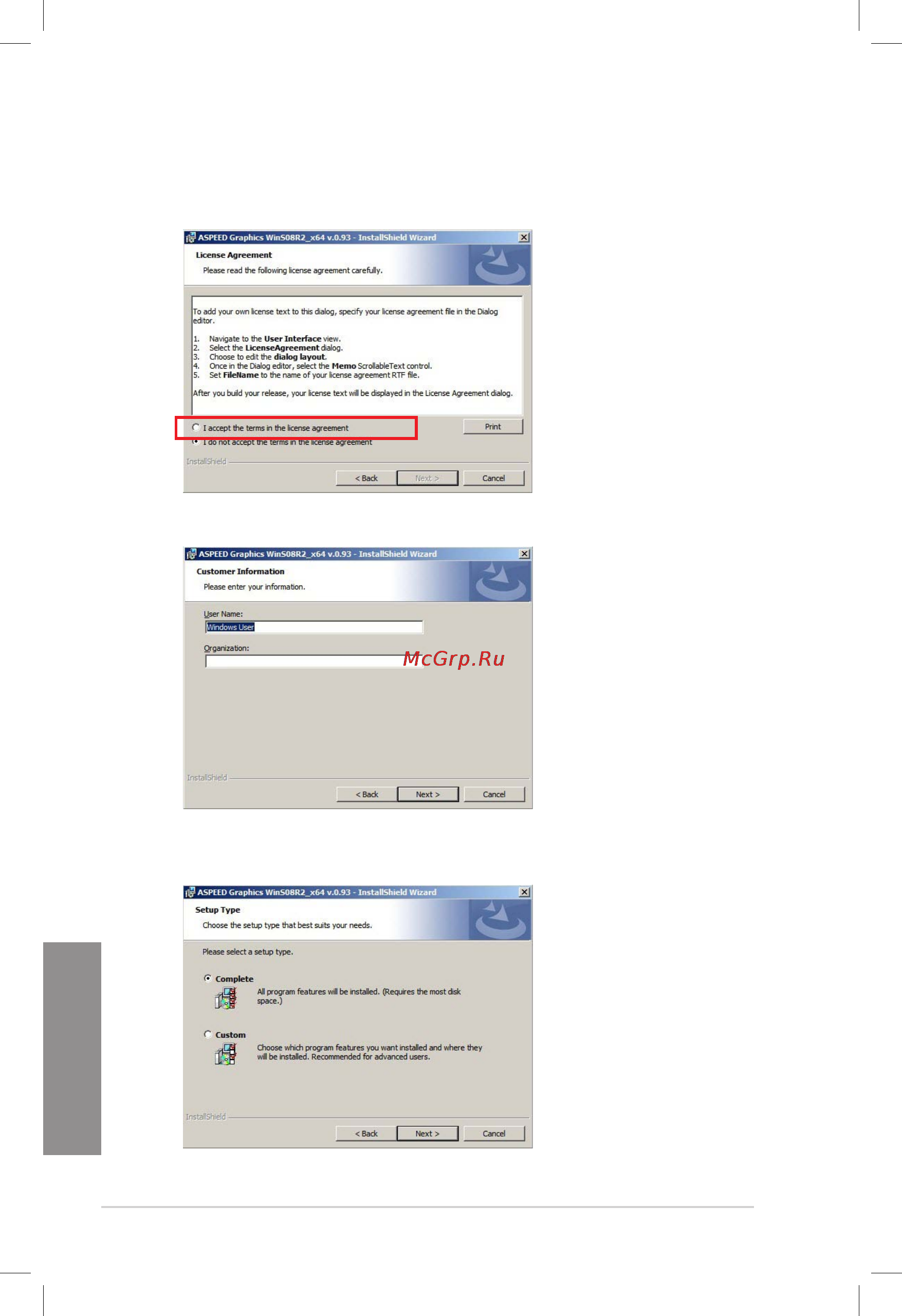

6. Enter the user information and click Next to continue.

5. Toggle I accept the terms in the license agreement and click Next to

continue.

7. Select a setup type and click Next to continue.
