6-14
Chapter 6: RAID conguration
Chapter 6

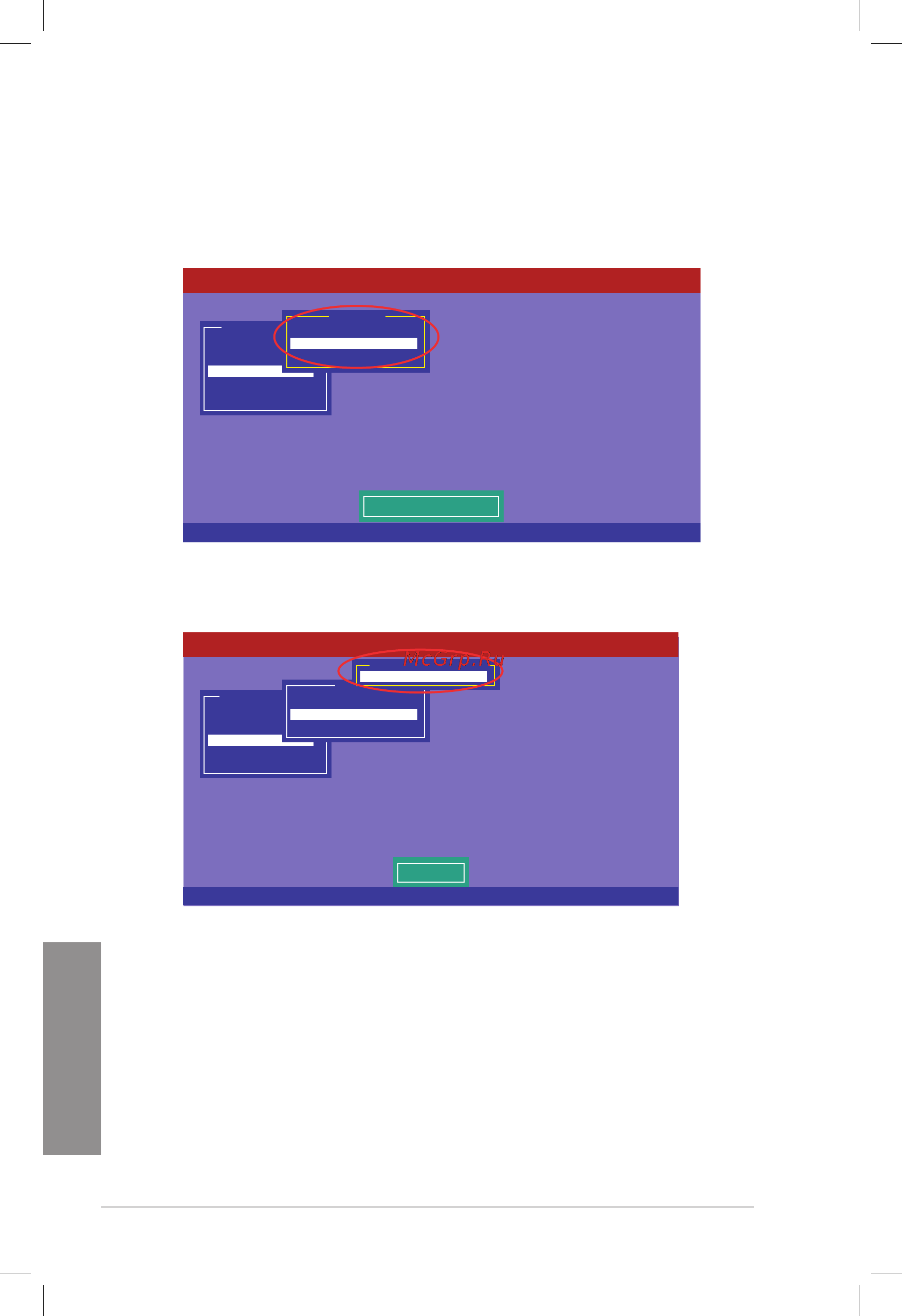

Using the Objects command
To initialize the virtual drives using the Objects command:
1. From the Management Menu, select Objects > Virtual Drive, and press
<Enter>.
Management
Congure
Initialize
Objects
Rebuild
Check Consistency
Change VD Parameters
Objects
Adapter
Virtual Drive
Physical Drive
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
2. Select the virtual drive to initialize from the Virtual Drives submenu, and then
press <Enter>.
Management Menu
Congure
Initialize
Objects
Rebuild
Select VD
Objects
Adapter
Virtual Drive
Physical Drive
Virtual Drive(1)
Virtual Drive 0
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
Press ENTER To Select A VD, <Del> To Delete A VD
