Asus ts700-e7-rs8 [22/198] Chapter 2

2-2

Chapter 2: Hardware setup

Chapter 2

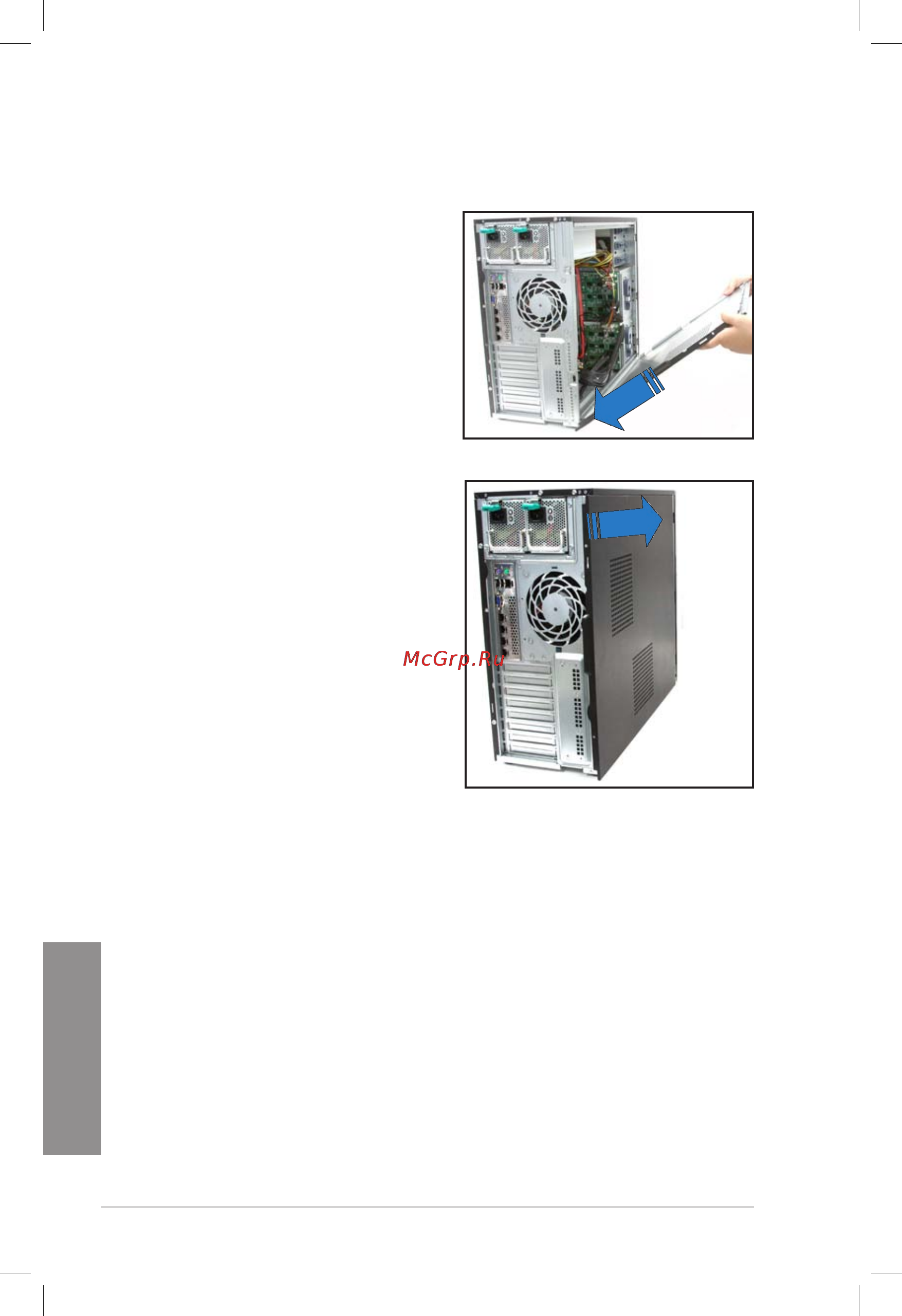

2.1.2 Reinstalling the side cover

To reinstall the side cover:

1. Match and insert the lower sliding

edge of the side cover to the

corresponding chassis edge.

2. Slide the side cover toward the front

panel until it snaps in place.

3. Drive in the two screws you

removed earlier to secure the side

cover.
