Asus ts700-e7-rs8 [42/198] Chapter 2

2-22

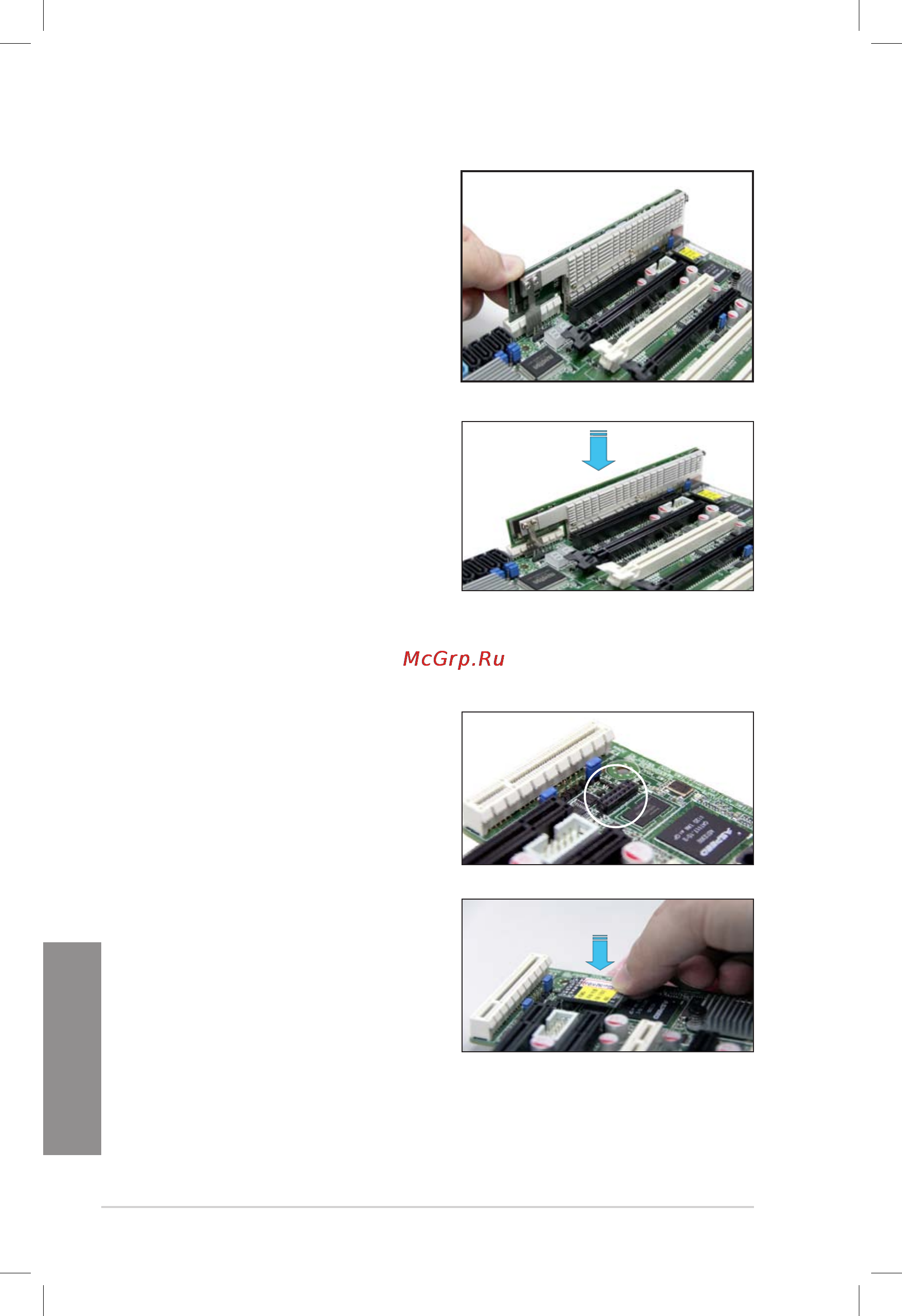

Chapter 2: Hardware setup

Chapter 2

2. Align the golden ngers of the PI�E

RAID card with the PIKE RAID card

slot.

3. Insert the PIKE RAID card into the

PIKE RAID card slot. Ensure it is

completely seated on the PIKE

RAID card slot.

2.7.3 Installing ASMB6 management board

Follow the steps below to install an optional ASMB6 management board on your

motherboard.

1. Locate the ASMB6 header on the

motherboard.

2. Orient and press the ASMB6

management card in place.
