TS700-E7/RS8
6-15
Chapter 6

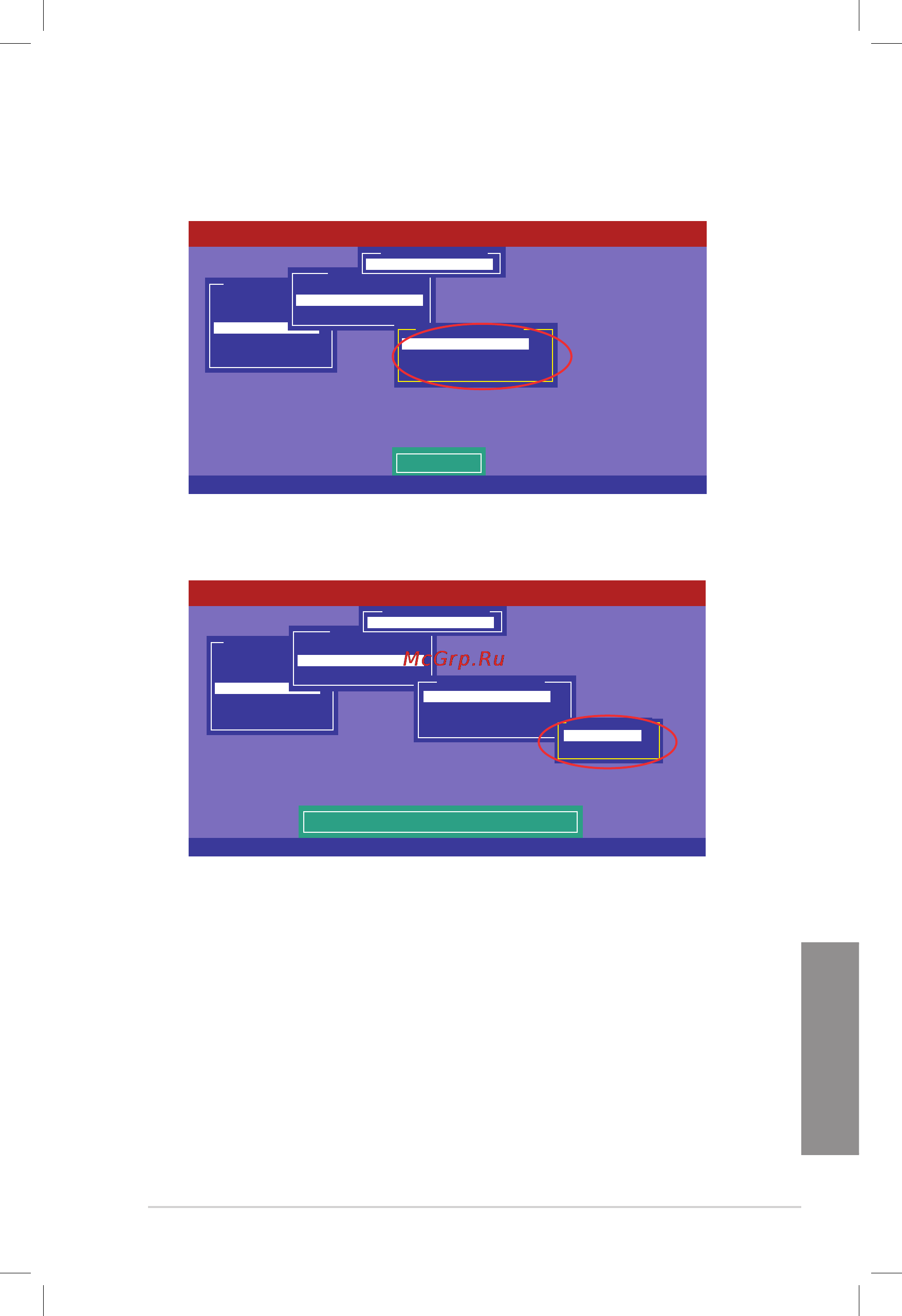

3. Select Initialize from the pop-up menu, and then press <Enter> to start
initialization.
4. When prompted, press the <Space> to select Yes from the Initialize? dialog
box, and press <Enter>.
5. A progress bar appears on screen. If desired, press <Esc> to abort the
initialization process. When initialization is completed, press <Esc>.
Management Menu
Congure
Initialize
Objects
Rebuild
Check Consistency
Initilize VD
Objects
Adapter
Virtual Drive
Physical Drive
Virtual Drive(1)
Virtual Drive 0
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
Virtual Drive(0)
Initialize
Check Consistency
View/Update Parameters
Management Menu
Congure
Initialize
Objects
Rebuild
Check Consistency
Init Will Destroy Data On Selected VD(s)
Objects
Adapter
Virtual Drive
Physical Drive
Virtual Drive(1)
Virtual Drive 0
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
Virtual Drive(0)
Initialize
Check Consistency
View/Update Parameters
Initialize?
Yes
No
