29
... English
Installation

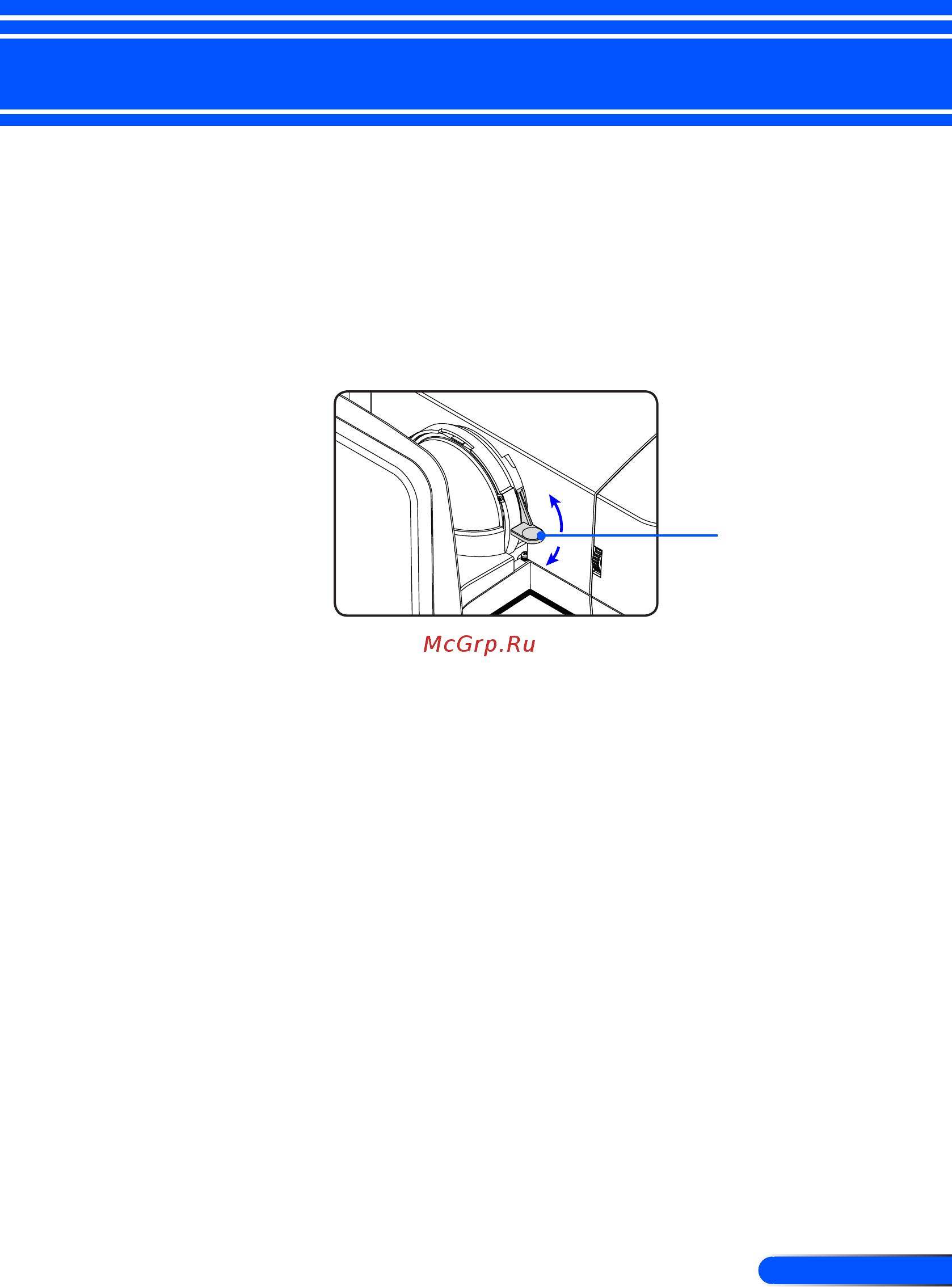

Focus Lever
Adjusting the Projector Focus
Adjusting Projection Image Size
To focus the image, rotate the focus lever until the image is
clear.
U300X/U250X series: The projector will focus at distances
from 5” to 12”/130 to 314 mm .
U310W/U260W series: The projector will focus at distances
from 6” to 12”/148 to 311 mm .
U300X/U250X series: Projection Image Size from 63” to 85”
(1.600 to 2.159 meters).
U310W/U260W series: Projection Image Size from 77” to
100” (1.956 to 2.540 meters).
