Nec U250X [59/82] Options lamp filter settings
![Nec U250X [59/82] Options lamp filter settings](/views2/1205524/page59/bg3b.png)
52
English ...
User Controls

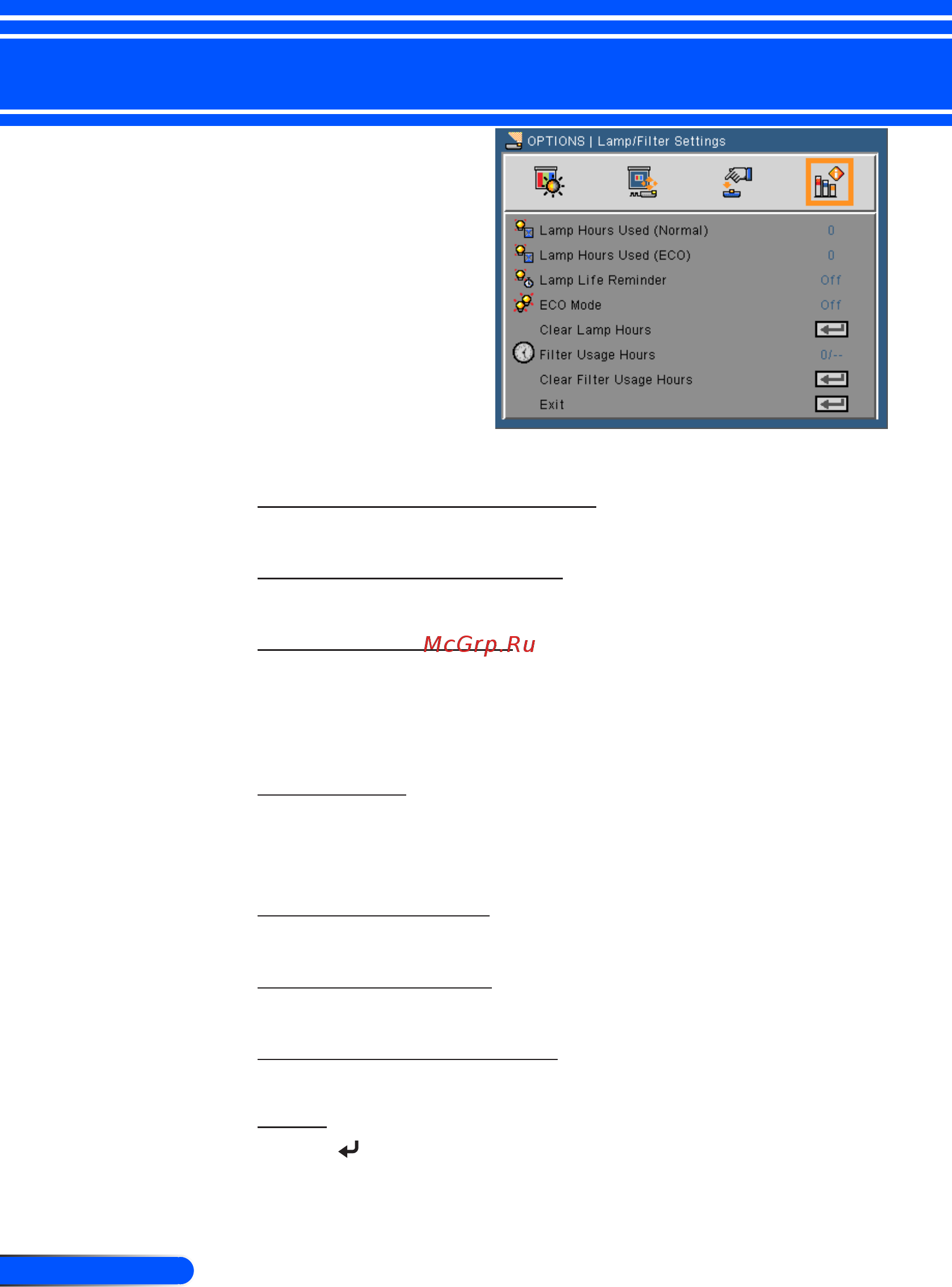

OPTIONS |
Lamp/Filter
Settings
Lamp Hours Used (Normal)
Display the projection time for normal mode.
Lamp Hours Used (ECO)
Display the projection time for ECO mode.
Lamp Life Reminder
Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement
of lamp.
ECO Mode
Choose “On” to dim the projector lamp which will lower power
consumption and extend the lamp life. Choose “Off” to return to
normal mode.
Clear Lamp Hours
Reset the lamp hour counter after replacing the lamp.
Filter Usage Hours
Display the projection time for using lter.
Clear Filter Usage Hours
Reset the lter hour counter after replacing the lter.
Exit
Press to return to the previous menu.
