31
... English
User Controls
The Projector has a multilingual On Screen Display that allows
you to make image adjustments and change a variety of set-
tings. The projector will automatically detect the source.
How to operate
1. To open the OSD, press the MENU button on the Remote Control.
2. When OSD is displayed, use the buttons to select any item
in the main menu. While making a selection on a particular page,
press the button to enter sub menu.
3. Use the buttons to select the desired item in the sub menu
and adjust the settings by using the or button.
4. If the setting has icon, you could press the ENTER button to
enter another sub menu. Press the MENU button to close the sub
menu after adjustment.
5. After adjusting the settings, press the MENU button go back to the
main menu.
6. To exit, press the MENU button again. The OSD will be closed and
the projector will automatically save the new settings.

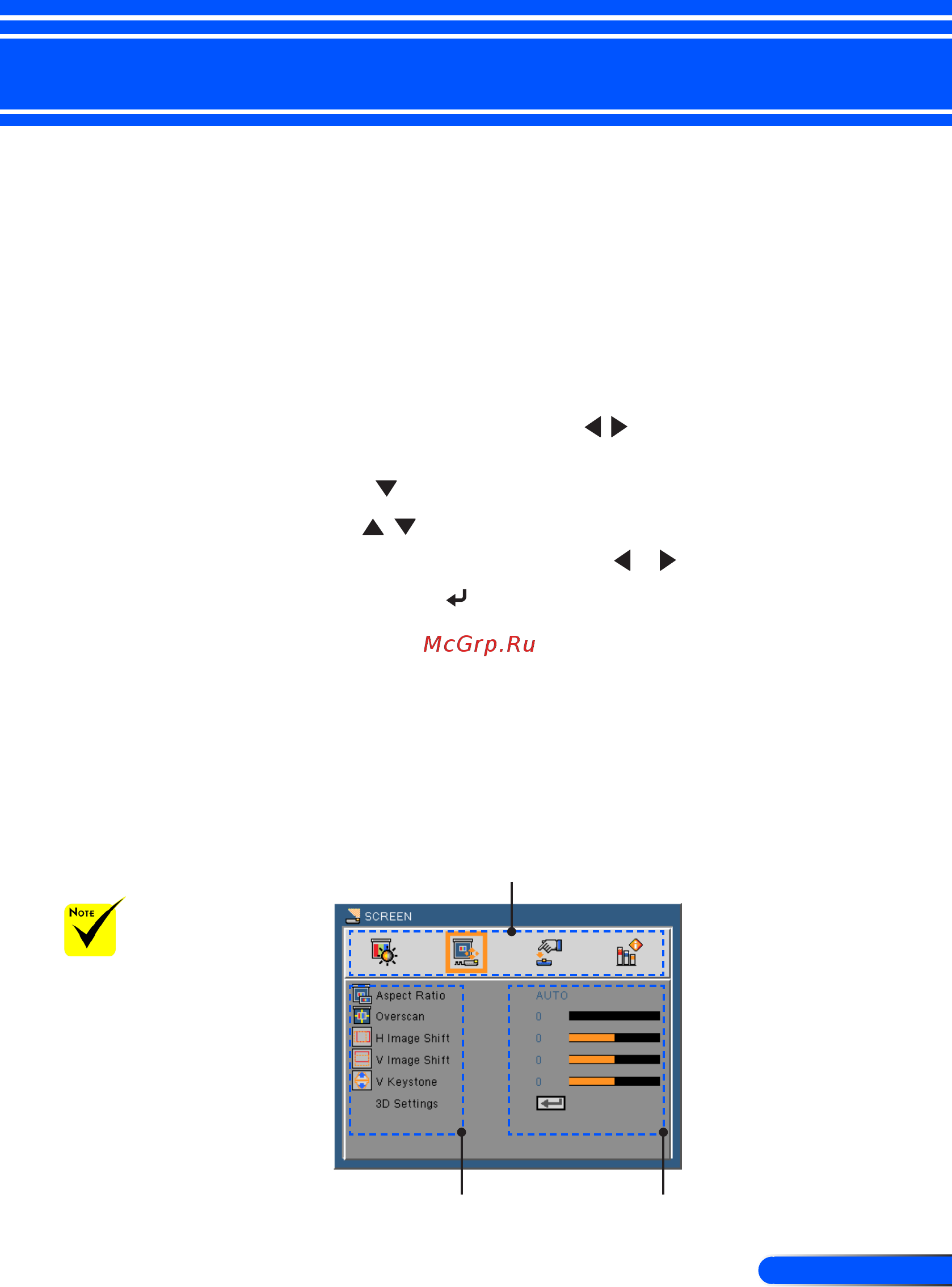

On Screen Display
Main Menu
Sub Menu
If no button operation
is made for 30 seconds,
the OSD will be closed
automatically.
Setting
