Nec U250X [68/82] Replacing the lamp
![Nec U250X [68/82] Replacing the lamp](/views2/1205524/page68/bg44.png)
61
... English
Appendices

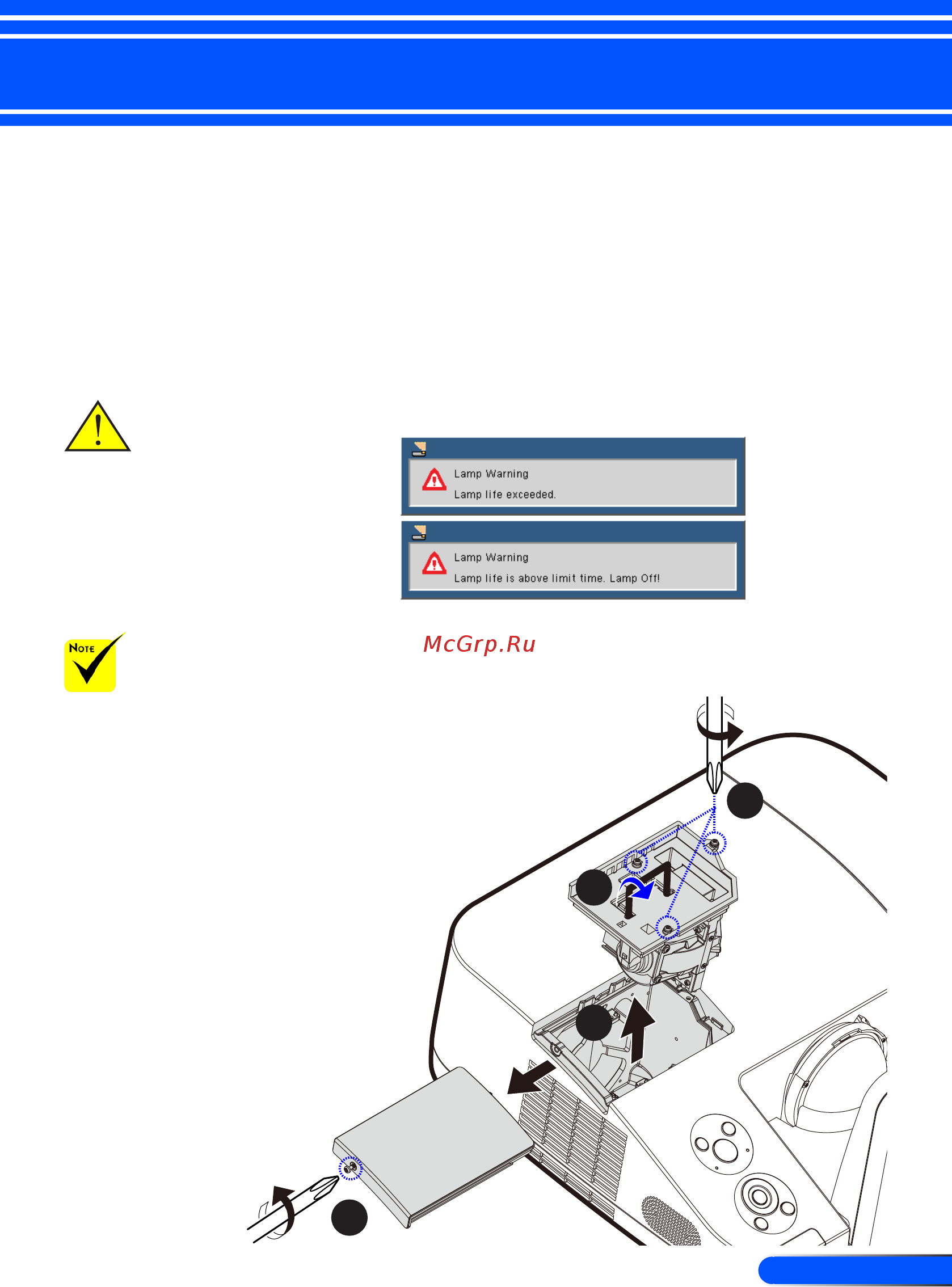

Replacing the lamp
(optional lamp NP19LP(U250X/U260W)/NP20LP(U300X/
U310W))
The projector will detect the lamp life at 2500 hours (U250X/
U260W) /2500 hours (U300X/U310W) in Normal mode. When
the “Power” LED indicator ashes red and the message below
displays on-screen, the projector has detected that the lamp is
approaching its end of life. (Refer to page 27) It will show you
a warning message
When you see this message, change the lamp as soon as pos-
sible. Make sure the projector has been cooled down for at
least 60 minutes before changing the lamp.
Warning: To avoid
burns, allow the projec-
tor to cool for at least
60 minutes before you
replace the lamp!
1
3
4
2
The lamp life in Eco
Mode On: up to
3000 hours (U300X/
U310W) and up to
4000 hours (U250X/
U260W).
