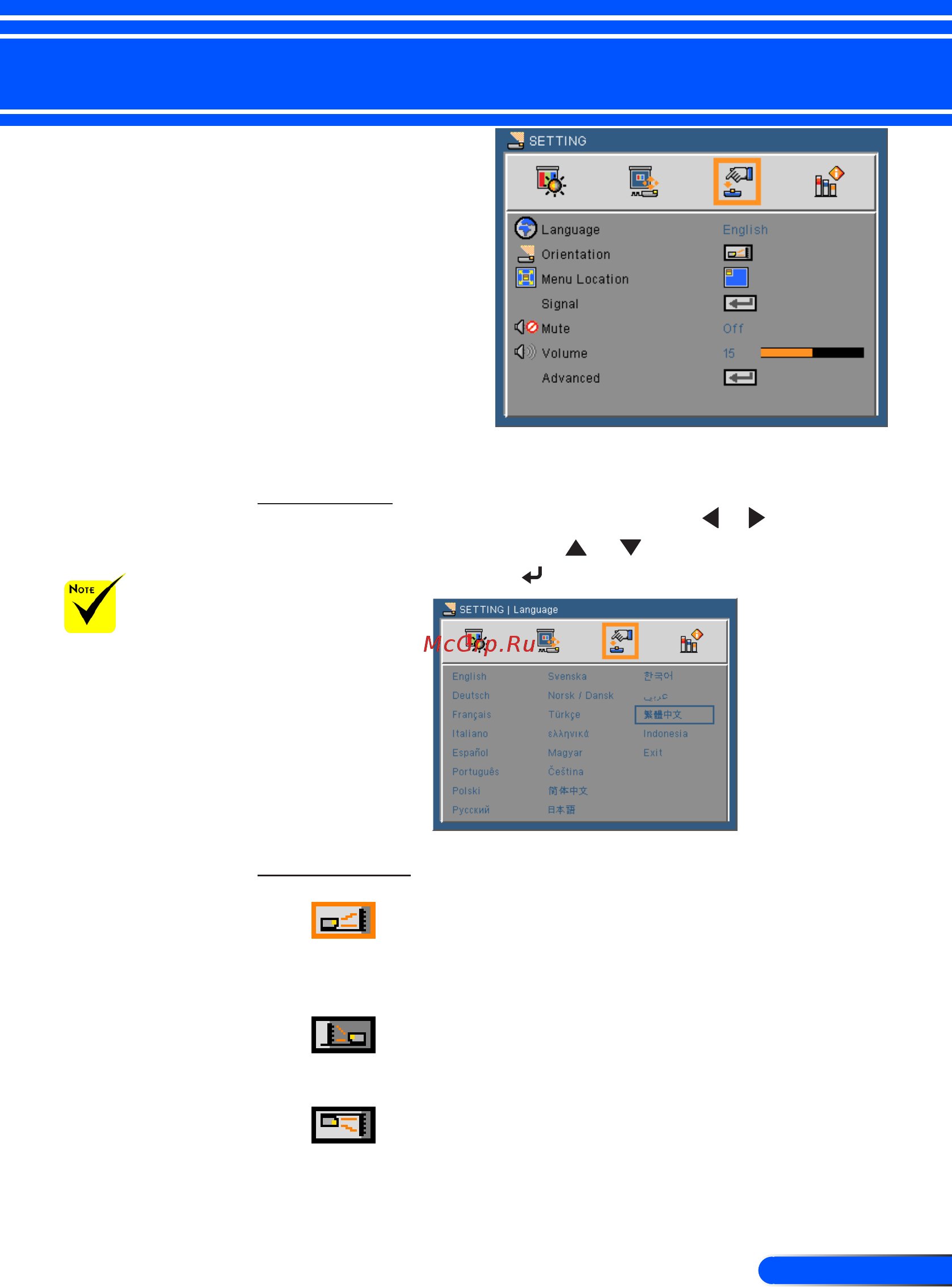

User Controls
SETTING
Language
Choose the multilingual OSD menu. Press the or button into
the sub menu and then use the or button to select your
preferred language. Press to nalize the selection.
Orientation
Desktop Front
This is the default selection. The image is projected straight on
the screen.
Desktop Rear
When selected, the image will appear reversed.
Ceiling Front
When selected, the image will turn upside down.
Rear-Desktop and
Rear-Ceiling are
to be used with a
translucent screen.
