40
English ...
User Controls
TIP: 3D supported signal
• For PC Signal :
640x480@120Hz, 640x480@60Hz,
800x600@120Hz, 800x600@60Hz,
1024x768@120Hz,1024x768@60Hz
1280x720@120Hz,1280x720@60Hz
• For Video Signal :
480i@60Hz,480p@60Hz,720p@60Hz
3D
Choose “On” to turn this item on for 3D images.
3D Invert
Choose “On” to invert left and right frame contents.
Choose “Off” for default frame contents.
3D Over/Under
Choose “On” to invert over and under frame contents.
Choose “Off” for default frame contents.
Exit
Press to return to the previous menu.
“3D Invert”
and “3D Over/
Under”only avail-
able when 3D is
enabled.
Compatible 3D
source, 3D content
and active shutter
glasses are required
for 3D viewing.

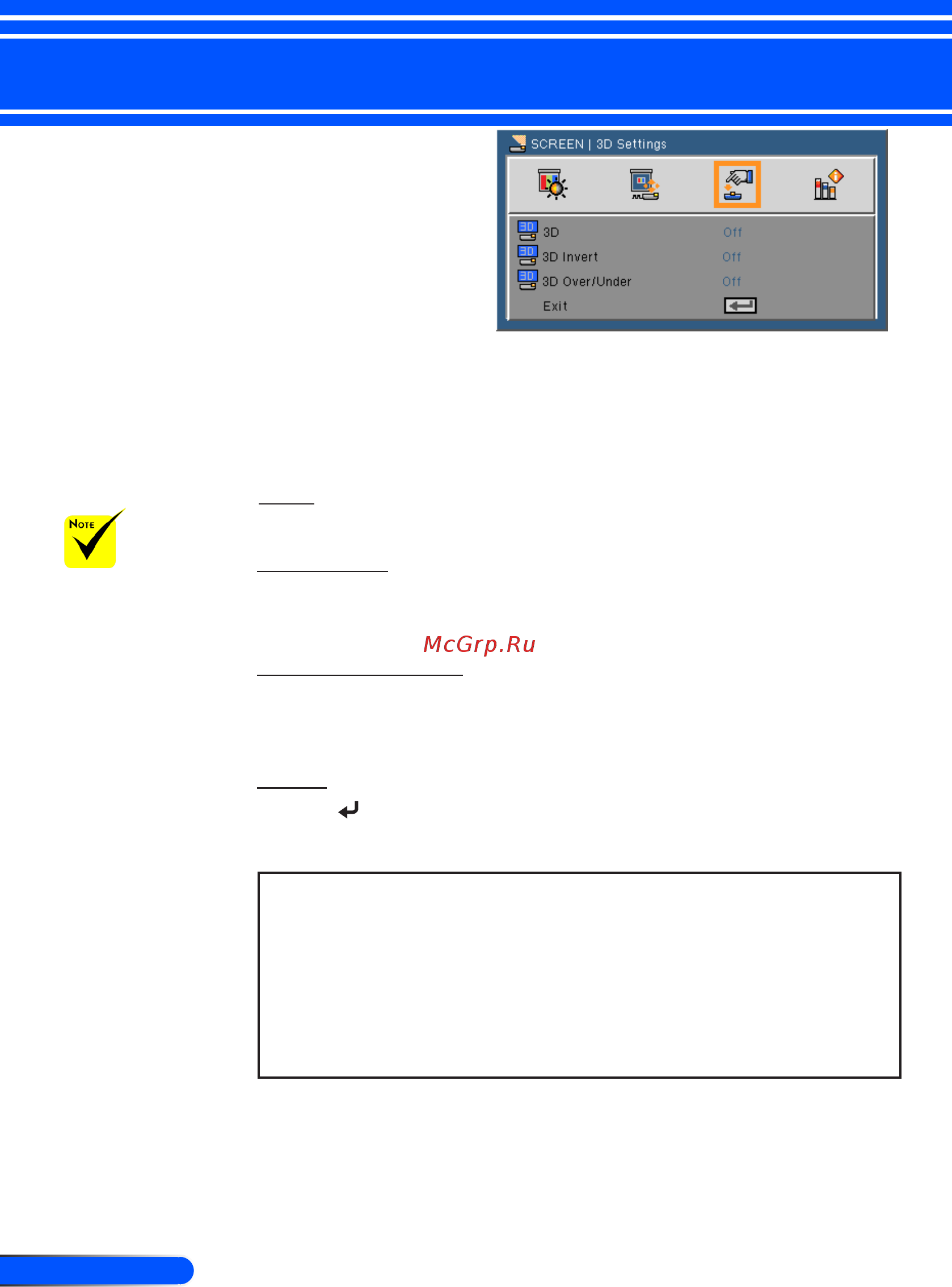

SCREEN | 3D
Settings
