37
... English
User Controls

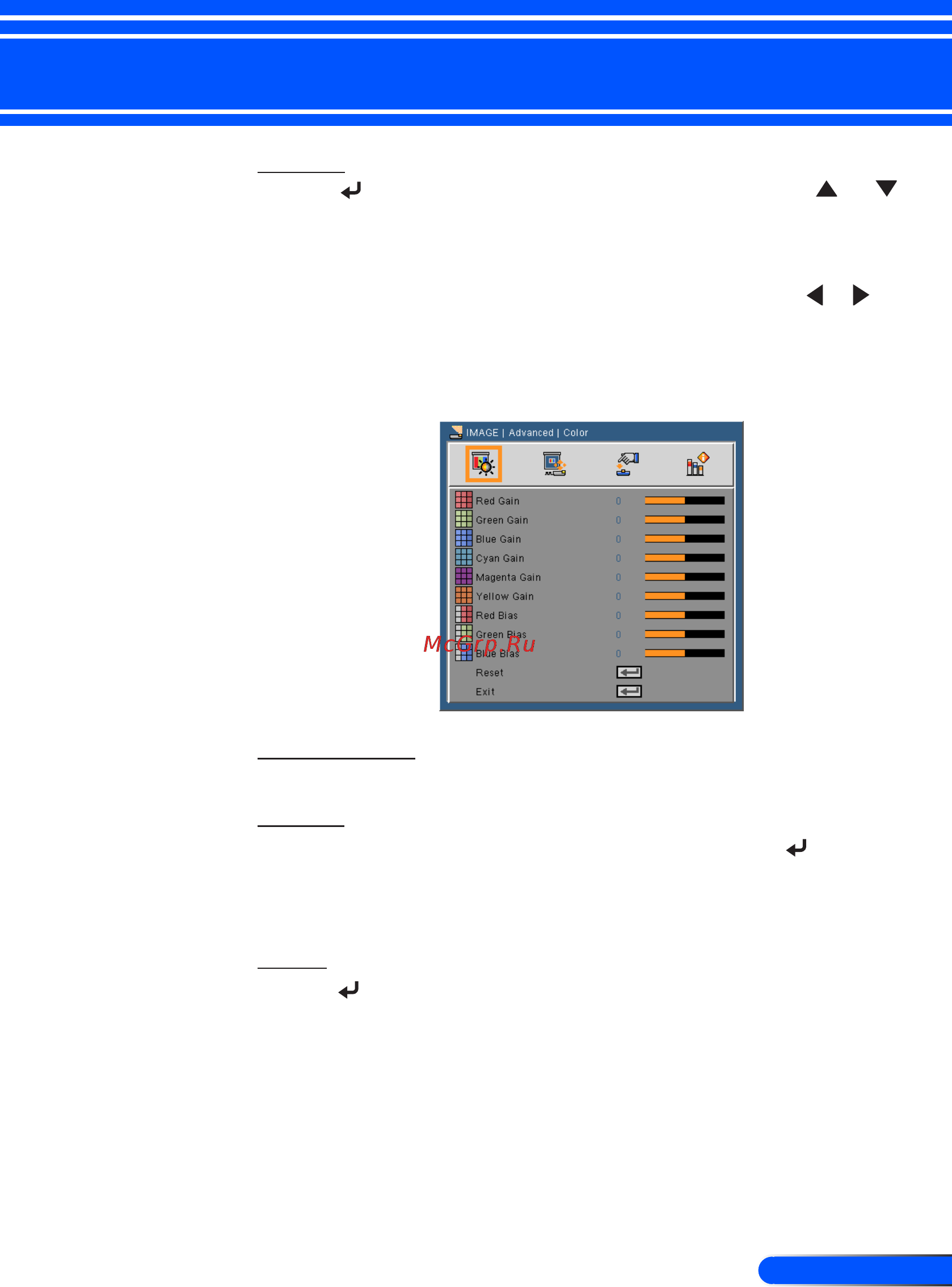

Color
Press into the next menu as below and then use the
or
button to select item.
Red Gain/Green Gain/Blue Gain/Red Bias/Green Bias/Blue
Bias/Cyan Gain/Magenta Gain/Yellow Gain: Use the or
button to select Red, Green, Blue, Cyan, Magenta and Yellow
Colors.
Reset: Choose “Yes” to return the factory default settings for
color adjustments.
Color Space
Select an appropriate color matrix type from AUTO, RGB or YUV.
Input
Use this option to enable / disable input sources. Press to enter
the sub menu and select which sources you require. Press the EN-
TER button to finalize the selection. The projector will not search for
inputs that are not selected.
Exit
Press to return to the previous menu.
