7.2 Port Config

On this page you can configure the parameters of the ports for CIST.

Choose the menu Spanning Tree→Port Config to load the following page.

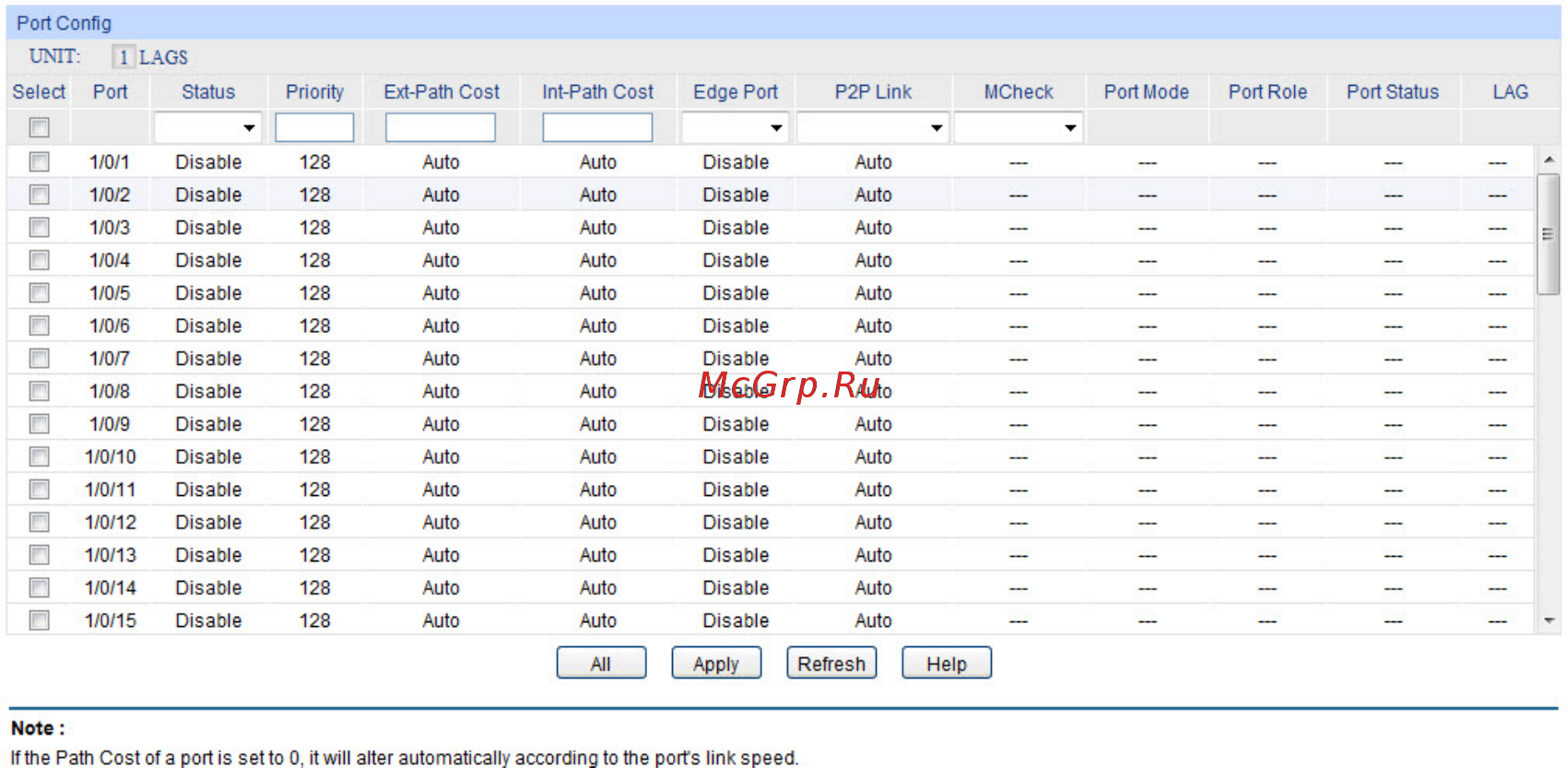

Figure 7-6 Port Config

The following entries are displayed on this screen:



Port Config

UNIT:1/LAGS: Click 1 to configure the physical ports. Click LAGS to configure the

link aggregation groups.

Select: Select the desired port for STP configuration. It is multi-optional.

Port: Displays the port number of the switch.

Status: Select Enable /Disable STP function for the desired port.

Priority:

Enter a value from 0 to 240 divisible by 16. Port priority is an

important criterion on determining if the port connected to this port

will be chosen as the root port. The lower value has the higher

priority.

ExtPath Cost:

ExtPath Cost is used to choose the path and calculate the path costs

of ports in different MST regions. It is an important criterion on

determining the root port. The lower value has the higher priority.

IntPath Cost: IntPath Cost is used to choose the path and calculate the path costs

of ports in an MST region. It is an important criterion on determining

the root port. The lower value has the higher priority.

Edge Port:

Select Enable/Disable Edge Port. The edge port can transit its state

from blocking to forwarding rapidly without waiting for forward delay.

P2P Link:

Select the P2P link status. If the two ports in the P2P link are root port

or designated port, they can transit their states to forwarding rapidly

to reduce the unnecessary forward delay.

MCheck:

Select Enable to perform MCheck operation on the port. Unchange

means no MCheck operation.
