configure the link aggregation groups.

Select: Select the port you want to configure.

Port: Displays the port number.

MLD Snooping: Select Enable/Disable MLD snooping for the desired

port.

Fast Leave: Select Enable/Disable Fast Leave feature for the

desired port. If Fast Leave is enabled for a port, the

switch will immediately remove this port from the

multicast group upon receiving MLD done messages.

LAG: Displays the LAG number.

8.2.3 VLAN Config

On this page you can configure MLD snooping function with each single VLAN. You need to create

VLAN if you want to enable MLD snooping function in this VLAN.

Choose the menu Multicast→MLD Snooping→VLAN Config to load the following page.

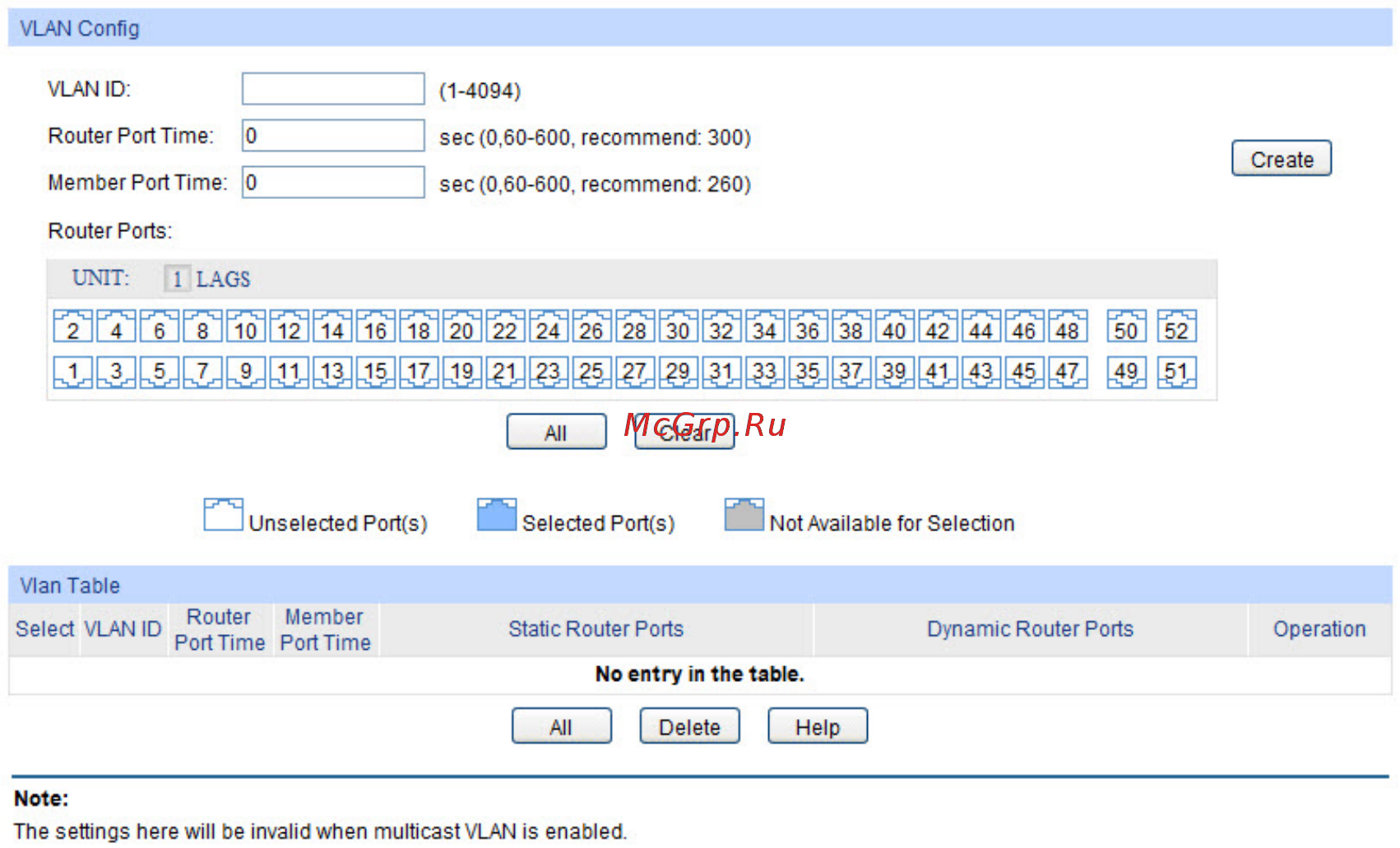

Figure 8-15 VLAN Config

The following entries are displayed on this screen:



VLAN Config

VLAN ID: Enter the VLAN ID you want to configure.

Router Port Time:

Specify the aging time of the router port. Within this time, if the

switch don't receive MLD query message from the router

port, it

will consider this port is not a router port any more.

By default, it

is 0 and the global router-time will be used.

Member Port Time:

Specify the aging time of the member port. Within this time, if the

switch don't receive MLD report message from

the member port,

it will consider this port is not a member port any more.

default, it is 0 and the global member-time will be used.
