Tp-Link T1600G-28PS (TL-SG2424P) [215/269] Dos defend

205

13.4.1 DoS Defend

On this page, you can enable the DoS Defend type appropriate to your need.

Choose the menu Network Security→DoS Defend→DoS Defend to load the following page.

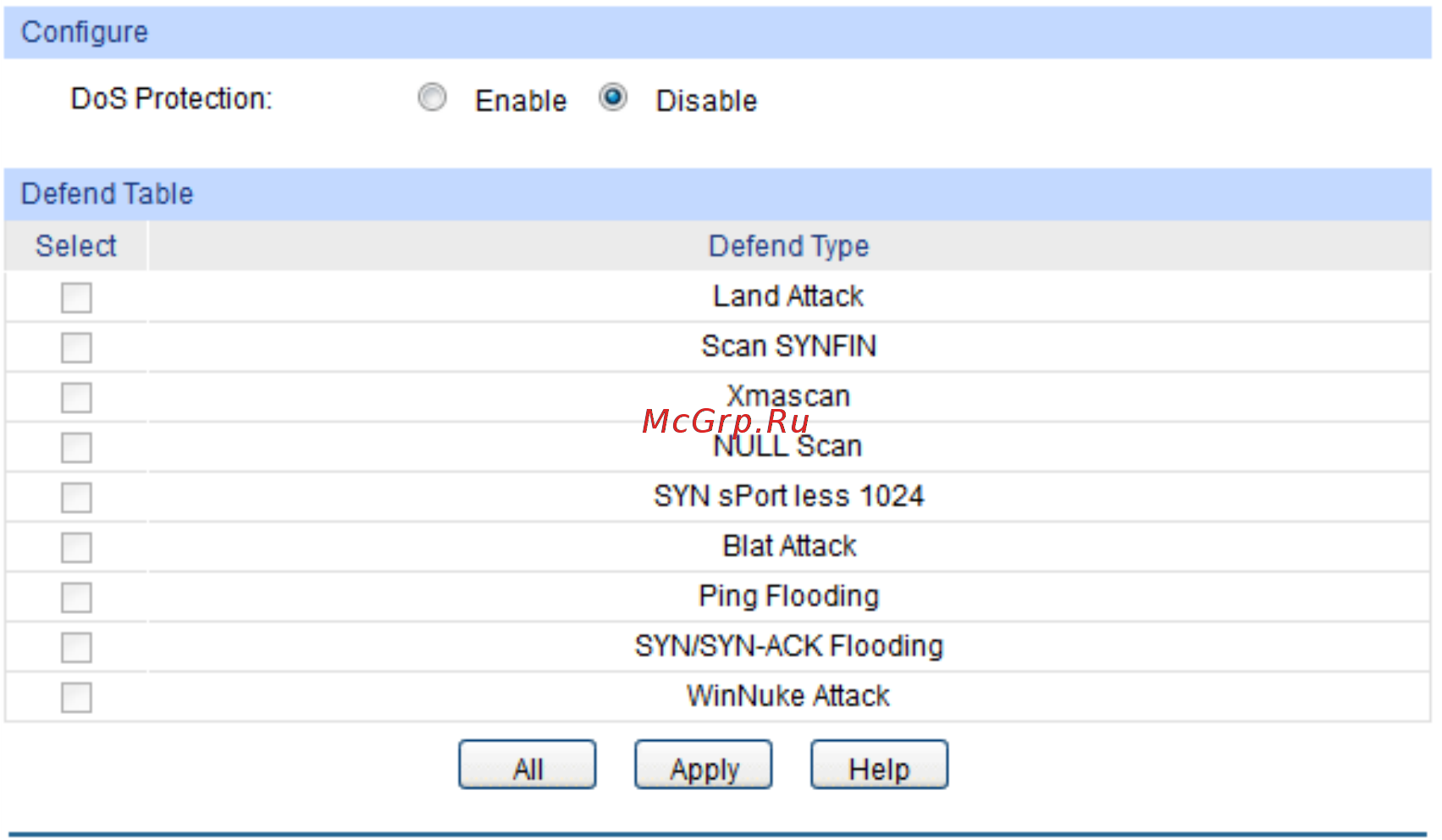

Figure 13-17 DoS Defend

The following entries are displayed on this screen:



Defend Config

DoS Defend:

Allows you to Enable/Disable DoS Defend function.



Defend Table

Select:

Select the entry to enable the corresponding Defend Type.

Defen

d Type: Displays the Defend Type name.

13.5 802.1X

The 802.1X protocol was developed by IEEE802 LAN/WAN committee to deal with the security

issues of wireless LANs. It was then used in Ethernet as a common access control mechanism for

LAN ports to solve mainly authentication and security problems.

802.1X is a port-based network access control protocol. It authenticates and controls devices

requesting for access in terms of the ports of LAN access control devices. With the 802.1X

protocol enabled, a supplicant can access the LAN only when it passes the authentication,

whereas those failing to pass the authentication are denied when accessing the LAN.



Architecture of 802.1X Authentication

802.1X adopts a client/server architecture with three entities: a supplicant system, an

authenticator system, and an authentication server system, as shown in the following figure.
