Interface ID: Displays the ID of the interface, including

VLAN ID, loopback

interface, routed port and port-channel ID.

IP Address Mode: Displays the IP address allocation mode.

 None: without ip.

 Static: setup manually.

 DHCP: allocated through DHCP.

 BOOTP: allocated through BOOTP.

IP Address: Displays the IP address and subnet mask of the interface.

Secondary IP: Displays Secondary IP Address and subnet mask.

Interface Status:

Displays the interface current working status, which is up when

Admin Status is enable, line protocol is up and IP address is set.

Line Protocol

Status:

Displays the line protocol status, which is up if any up-

link port is

connected to the interface.

Admin Status: Displays the Admin status. Choose Disable

to disable the

interface's Layer 3 capabilities.

Interface Name: Displays the name of the interface.



Interface Setting Detail Information

Displays the detailed setting information of the interface.

9.2 Routing Table

This page displays the routing information summary generated by different routing protocols.

Choose the menu Routing→Routing Table→Routing Table to load the following page.

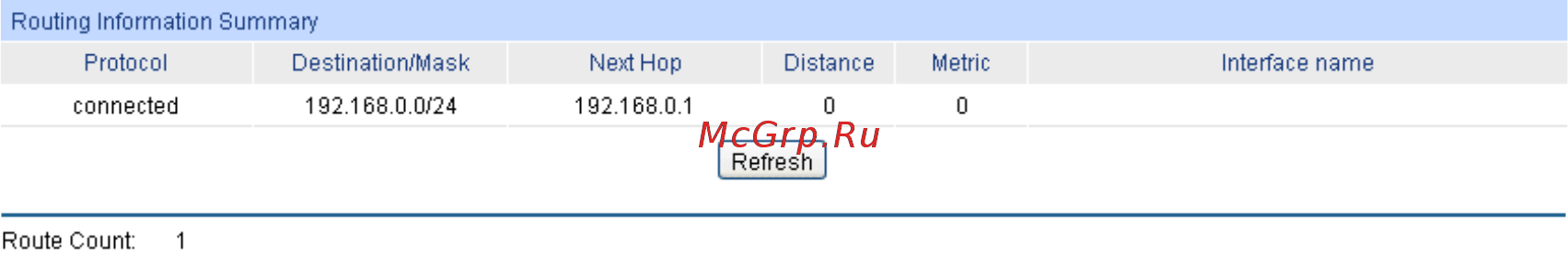

Figure 9-2 Routing Table



Routing Information Summary

Protocol:

Displays the protocol of the route.

Destination/Mask:

Displays the destination and subnet of the route.

Next Hop: Displays the IP address to which the packet should be sent next.

Distance:

Displays the management distance of the route. The smaller the

distance is, the higher the priority is.

Metric: Displays the metric of the route.
