14.3.4 Alarm Config

On this page, you can configure Statistic Group and Alarm Group for RMON.

Choose the menu SNMP→RMON→Alarm to load the following page.

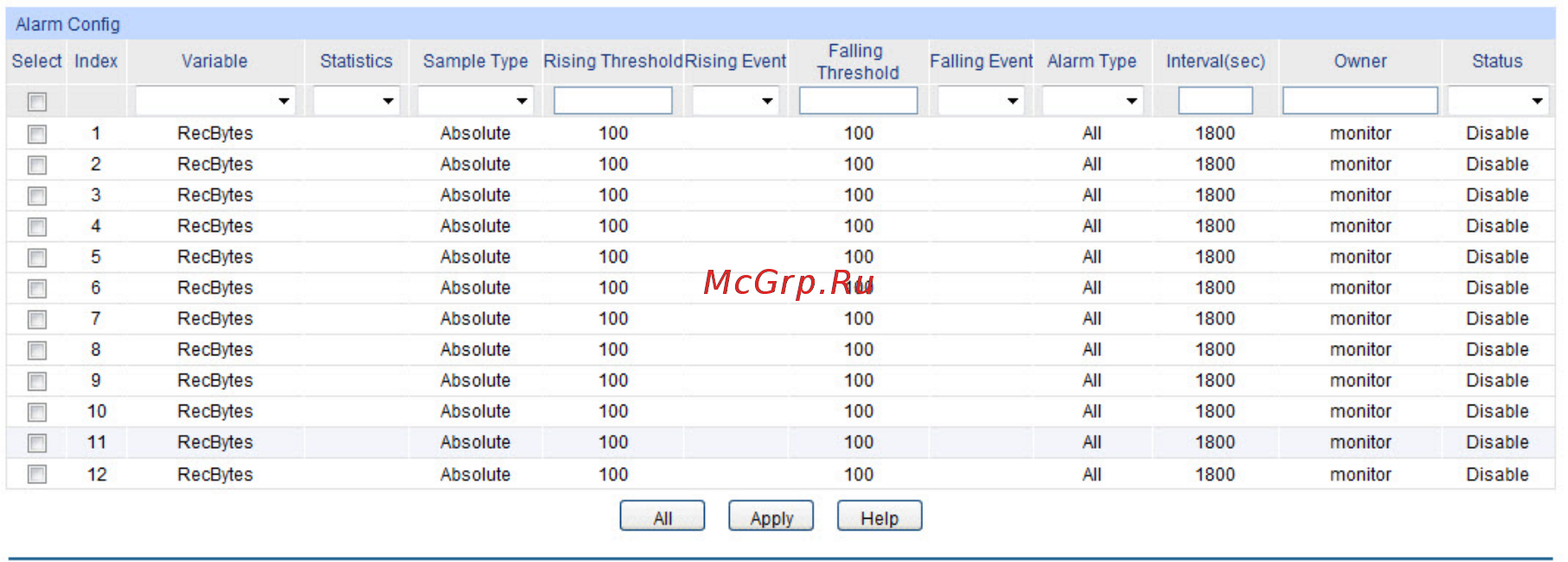

Figure 13-12 Alarm Config

The following entries are displayed on this screen:



Alarm Config

Select:

Select the desired entry for configuration.

Index:

Displays the index number of the entry.

Variable

: Select the alarm variables from the pull-down list.

Statistics

Select the RMON statistics entry from which we get the value of

the selected alarm variable.

Sample Type:

Specify the sampling method for the selected variable and

comparing the value against the thresholds.

 Absolute:

Compares the values directly with the thresholds

at the end of the sampling interval.

 Delta:

Subtracts the last sampled value from the current

value. The difference in the values is compared to the

threshold.

Rising Threshol

Enter the rising counter value that triggers the Rising Threshold

alarm.

Rising Event:

Select the index of the corresponding event which will be

triggered if the sampled value is larger than the Rising

Threshold.

Falling Threshold:

Enter the falling

counter value that triggers the Falling Threshold

alarm.

Falling Event:

Select the index of the corresponding event which will be

triggered if the sampled value is lower than the Falling

Threshold.
