Tp-Link T1600G-28PS (TL-SG2424P) [168/269] Storm control

158

Egress

Rate(1-1000000Kbps):

Configure t

he bandwidth for sending packets on the port. You can

select a rate from the dropdown list or manually set Egress rate,

the system will automatically select integral multiple of 64Kbps

that closest to the rate you entered as the real Egress rate.

LAG: Displays the LAG number which the port belongs to.

Note:

1. If you enable ingress rate limit feature for the storm control-enabled port, storm control feature

will be disabled for this port.

2. When manually set Ingress/Egress rate, the system will automatically select integral multiple

of 64Kbps that closest to the rate you entered as the real Ingress/Egress rate. For example, if

you enter 1000Kbps for egress rate, the system will automatically select 1024Kbps as the real

Egress rate.

3. When egress rate limit feature is enabled for one or more ports, you are suggested to disable

the flow control on each port to ensure the switch works normally.

10.2.2 Storm Control

Storm Control function allows the switch to filter broadcast, multicast and UL frame in the network.

If the transmission rate of the three kind packets exceeds the set bandwidth, the packets will be

automatically discarded to avoid network broadcast storm.

Choose the menu QoS→Bandwidth Control→Storm Control to load the following page.

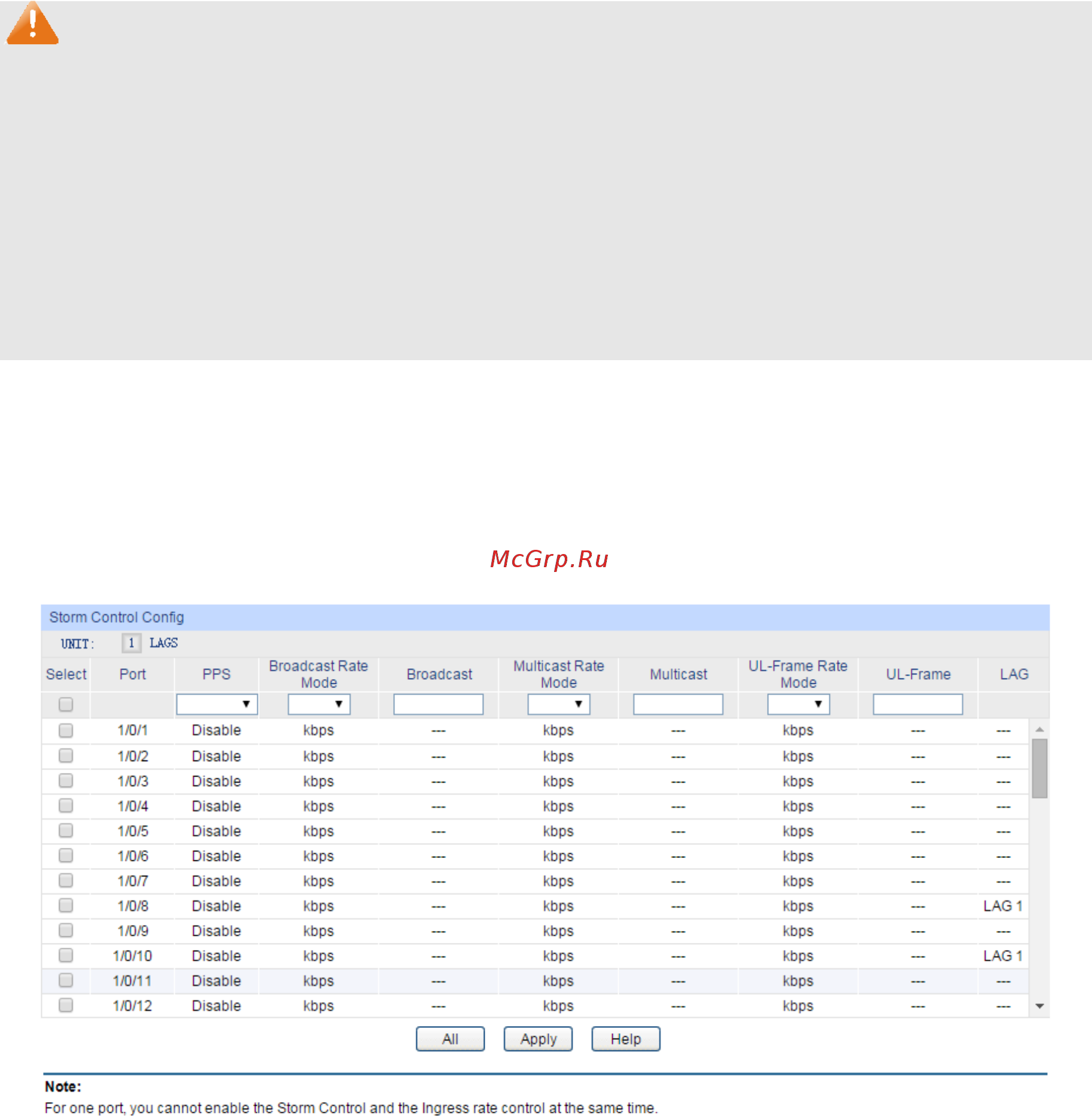

Figure 10-11 Storm Control

The following entries are displayed on this screen:

 Storm Control Config

UNIT:1/LAGS:

Click 1 to configure the physical ports. Click LAGS

to configure

the link aggregation groups.

Select:

Select the desire

d port for Storm Control configuration. It is

multi-optional.
