Query message.
General Query
Source IP:
Enter t
he Query Message source IP address. It is
FE80::02FF:FFFF:FE00:0001 by default.
MLD Snooping Querier List
Select: Select the Querier you want to change.
VLAN ID: Displays the VLAN ID.
Query Interval: Displays the Query message interval time.
Max Response Time: Displays the value of Maximum Response Time of the
Query message.
General Query
Source IP:
Displays the Query message source IP address.
Note:
The MLD Snooping Querier doesn’t participate in the MLD Querier Election, but an MLD Snooping
Querier will affect the MLD Querier Election in the IPv6 network running MLD because of its
relatively smaller IP address.
8.2.6 Profile Config
On this page you can configure an MLD profile.
Choose the menu Multicast→MLD Snooping→Profile Config to load the following page.

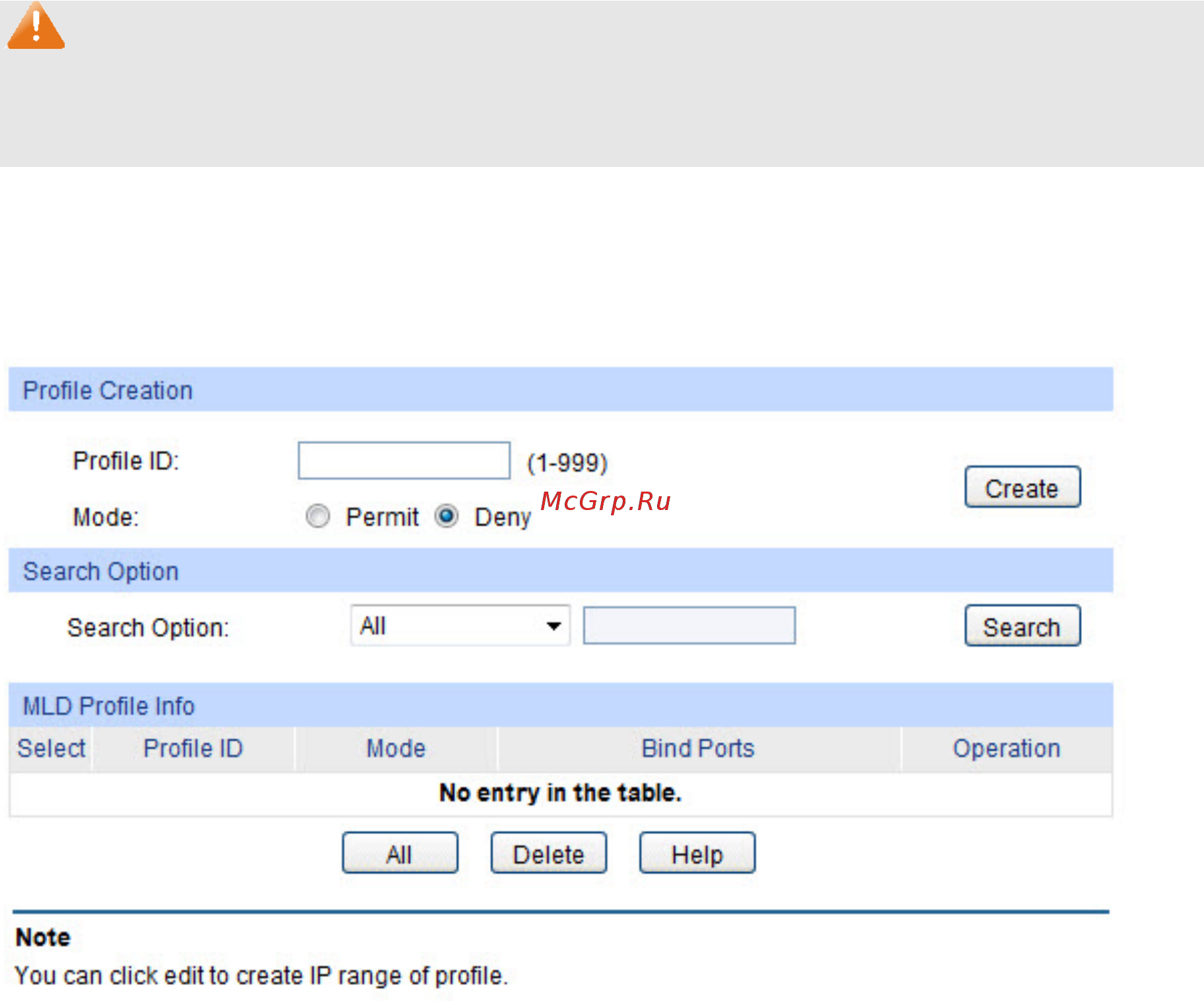

Figure 8-18 Profile Config
The following entries are displayed on this screen:
Profile Creation
Profile ID: Specify the Profile ID you want to create, and it should
range from 1 to 999.
