Notification Mode: Allows you to enable or disable
the ports' SNMP notification. If
enabled, the local device will notify the trap event to SNMP server.
Included TLVs: Select TLVs to be included in outgoing LLDPDU.
15.2 Device Info
You can view the LLDP information of the local device and its neighbors on the Local Info and
Neighbor Info pages respectively.
15.2.1 Local Info
On this page you can see all ports' configuration and system information.
Choose the menu LLDP→Device Info→Local Info to load the following page.

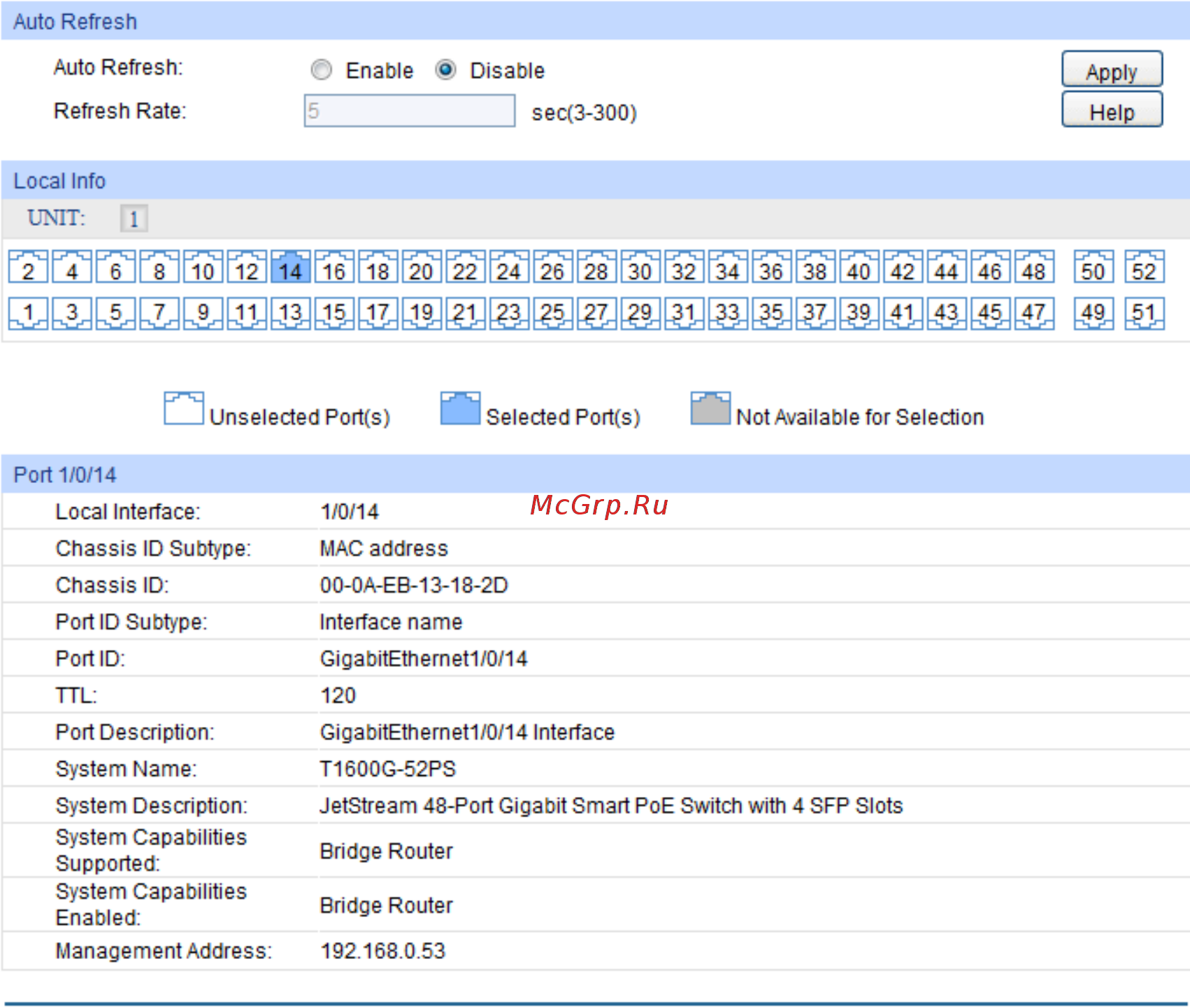

Figure 15-3 LLDP Local Information
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh: Enable/Disable the auto refresh function.
Refresh Rate: Specify the auto refresh rate.
Local Info
Select the desired port number to display the information of the corresponding port.
