7.3.1 Region Config

On this page you can configure the name and revision of the MST region.

Choose the menu Spanning Tree→MSTP Instance→Region Config to load the following page.

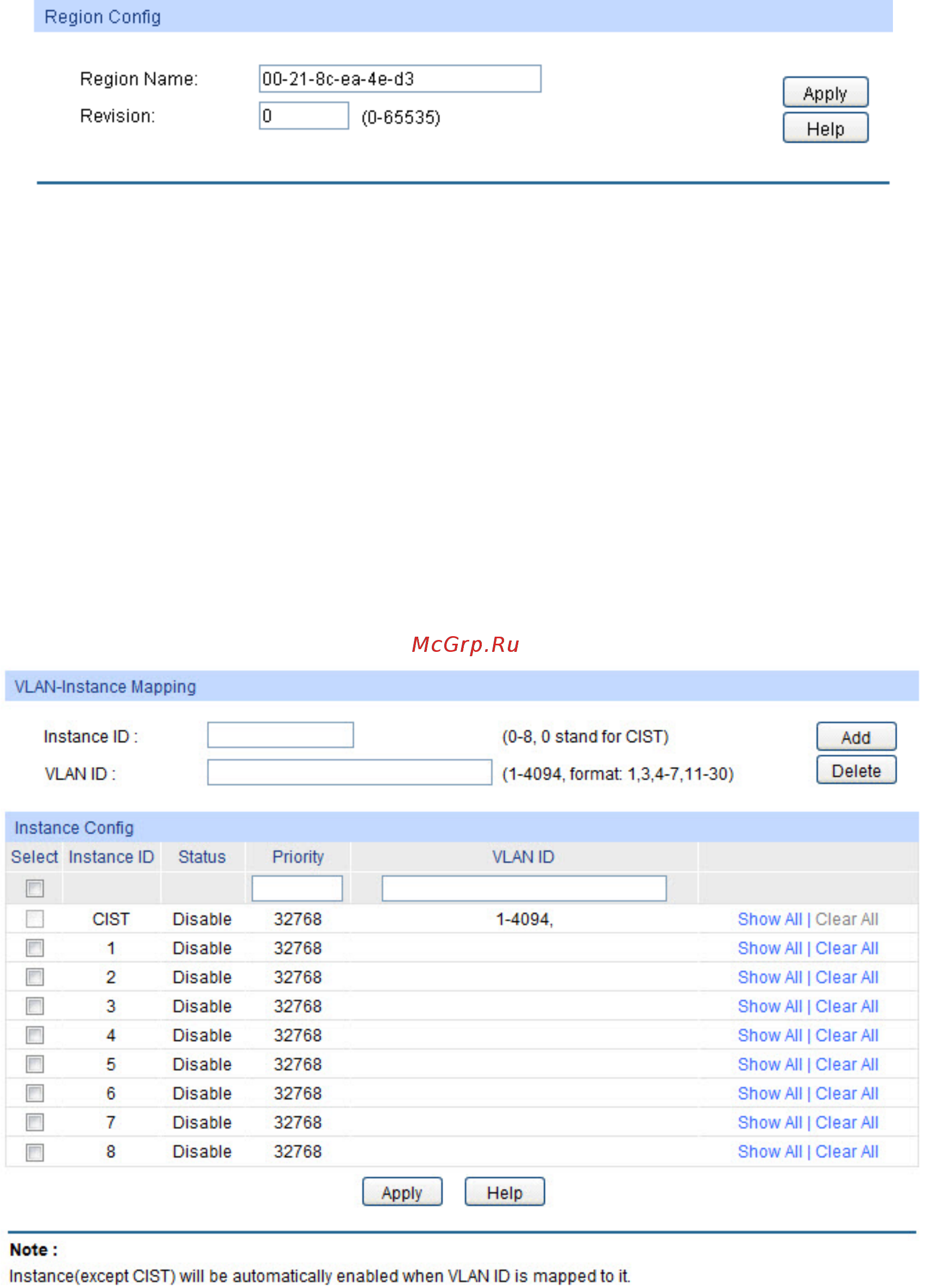

Figure 7-7 Region Config

The following entries are displayed on this screen:



Region Config

Region Name: Create a name for MST region identification using up to 32 characters.

Revision: Enter the revision from 0 to 65535 for MST region identification.

7.3.2 Instance Config

Instance Configuration, a property of MST region, is used to describe the VLAN to Instance

mapping configuration. You can assign VLAN to different instances appropriate to your needs.

Every instance is a VLAN group independent of other instances and CIST.

Choose the menu Spanning Tree→MSTP Instance→Instance Config to load the following page.

Figure 7-8 Instance Config
