Tp-Link T1600G-28PS (TL-SG2424P) [62/269] Loopback detection

Click Edit to display the following figure.

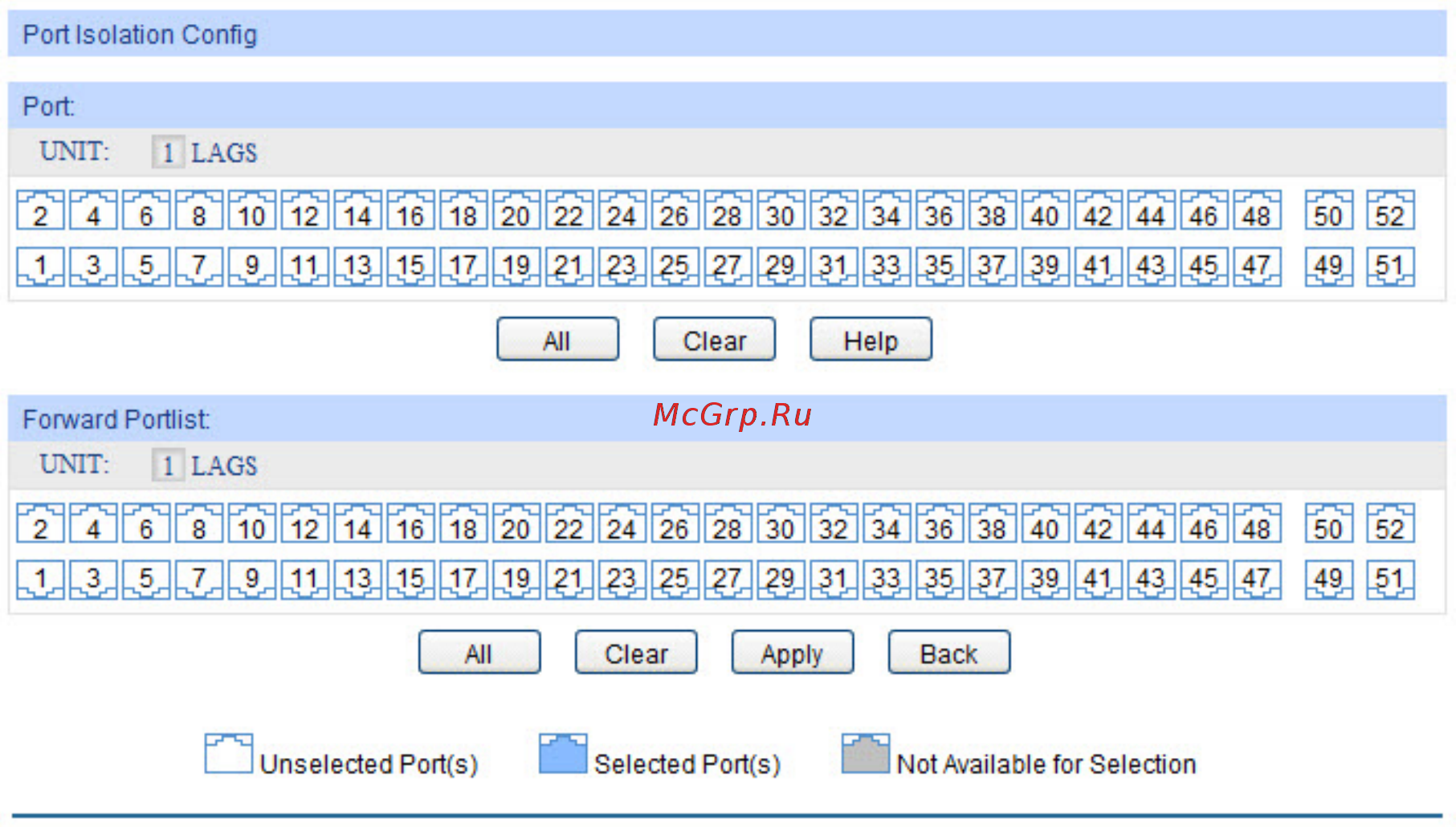

Figure 5-6 Port Isolation Config

5.1.5 Loopback Detection

With loopback detection feature enabled, the switch can detect loops using loopback detection

packets. When a loop is detected, the switch will display an alert or further block the corresponding

port according to the port configuration.
