Tp-Link T1600G-28PS (TL-SG2424P) [237/269] Statistics

227

The RMON Groups can be configured on the Statistics, History, Event and Alarm pages.

14.3.1 Statistics

On this page you can configure and view the statistics entry.

Choose the menu SNMP→RMON→Statistics to load the following page.

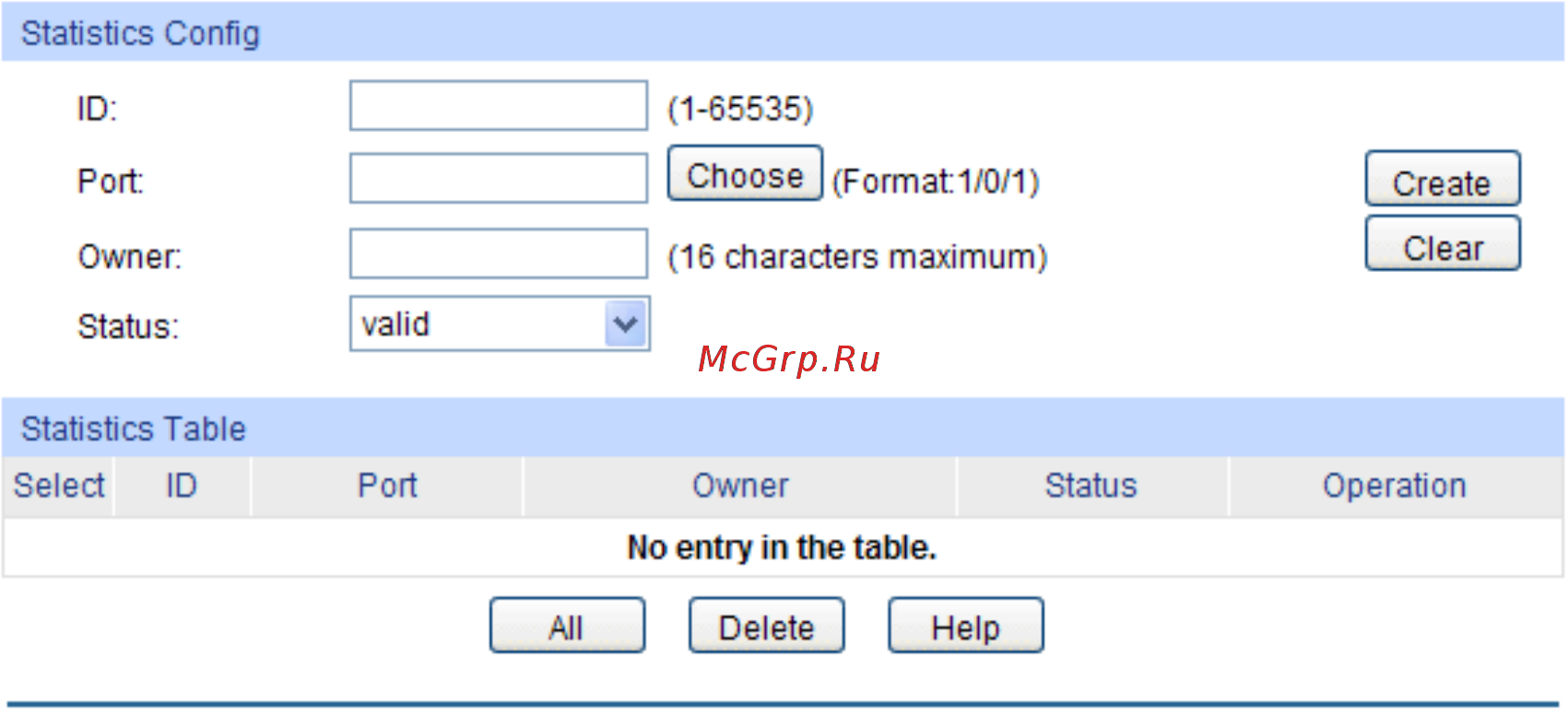

Figure 13-9 Statistics

The following entries are displayed on this screen:



Statistics Config

ID:

Enter the ID number of statistics entry, ranging from 1 to 65535.

Port:

Enter or choose the Ethernet interface from which to collect the

statistics.

Owner:

Enter the owner name.

Status:

Choose the status of statistics entry.

 valid: The entry exists and is valid.

 underCreation: The entry exists, but is not valid.



Statistics Table

Select:

Select the desired entry to delete the corresponding statistics

entry. It's multi-optional.

ID:

Displays the ID number of the statistics entry.

Port:

splays the Ethernet interface from which to collect the

statistics.

Owner:

Displays the owner name.

Status:

Displays the status of the statistics entry.
