8.1.6 Profile Config
On this page you can configure an IGMP profile.
Choose the menu Multicast→IGMP Snooping→Profile Config to load the following page.

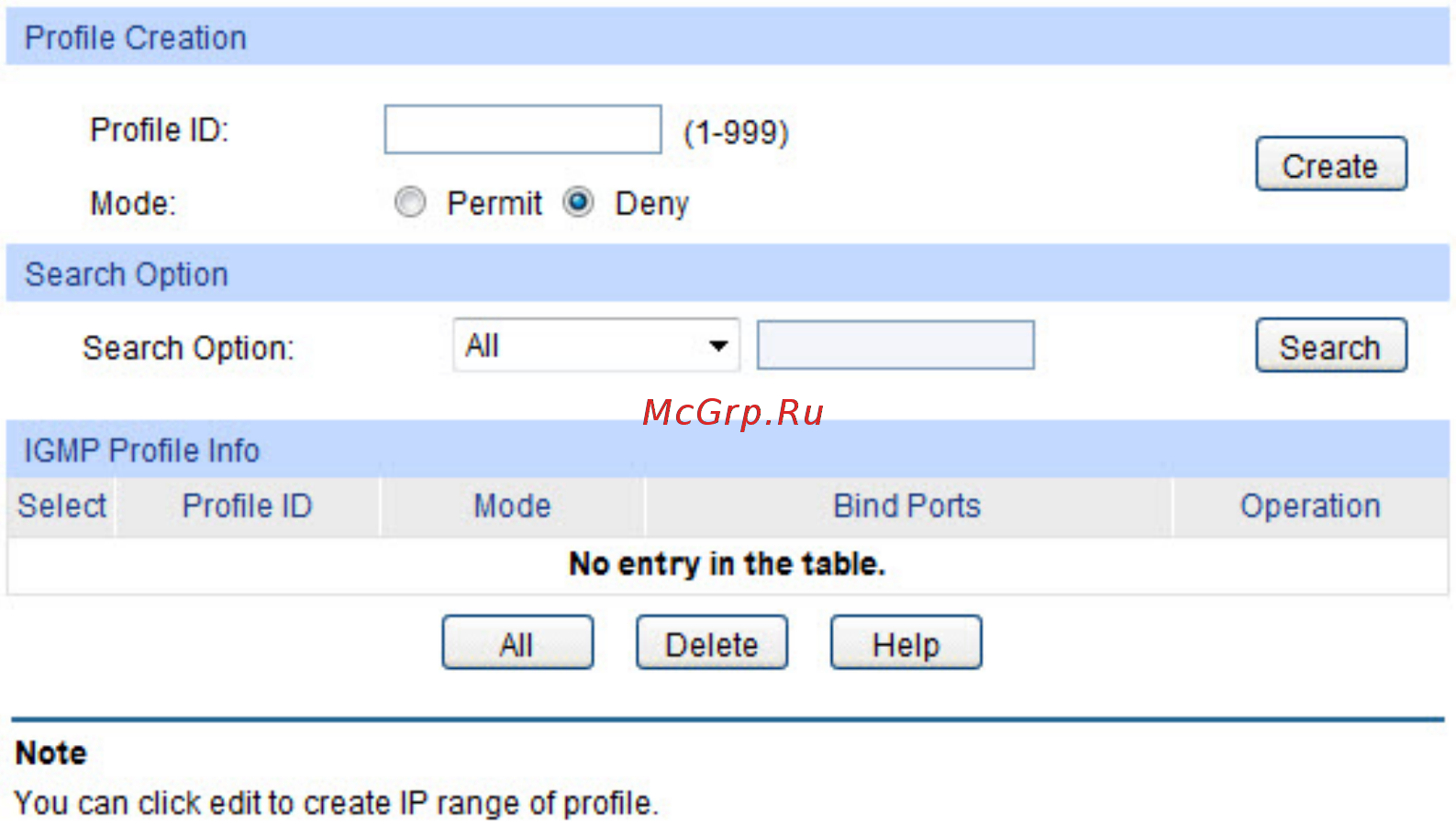

Figure 8-10 Profile Config
The following entries are displayed on this screen:
Profile Creation
Profile ID: Specify the Profile ID you want to creat
e, and it should be a
number between 1 and 999.
Mode: The attributes of the profile.
Permit
: Only permit the IP address within the IP range and
deny others.
Deny
: Only deny the IP address within the IP range and permit
others.
Search Option
Search Option: Select the rules for displaying profile entries.
All: Display all profile entries.
Profile ID: Display profile entry of the ID.
IGMP Profile Info
Select: Select the desired entry for configuration.
Profile ID: Displays the profile ID.
Mode:
Displays the attribute of the profile.
Permit
: Only permit the IP address within the IP range and
deny others.
Deny
: Only deny the IP address within the IP range and permit
others.
Bind Ports: Displays the ports that the Profile bound to.
