help to create and maintain multicast forwarding table on the switch with the Query messages it
generates.
Choose the menu Multicast→IGMP Snooping→Querier Config to load the following page.

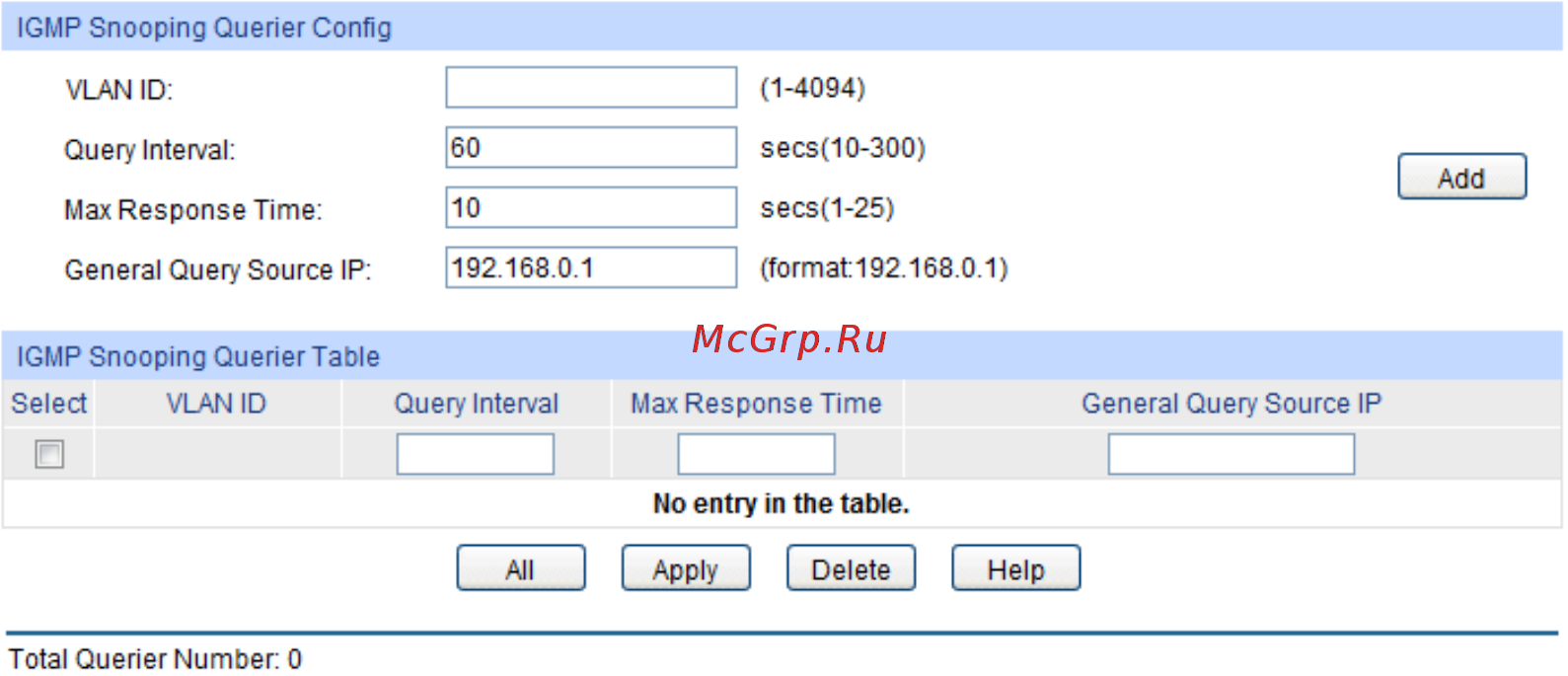

Figure 8-9 Querier Config
The following entries are displayed on this screen:
IGMP Snooping Querier Config
VLAN ID: Enter the ID of the VLAN that enables IGMP Snooping Querier.
Query Interval:
Enter the time interval of sending a general query frame by IGMP
Snooping Querier.
Max Response
Time:
Enter the maximal time for the host to respond to a general query
frame sent by IGMP Snooping Querier.
General Query
Source IP:
Enter the source IP of the general query frame sent by IGMP
Snooping Querier. It should not be a multicast IP or a broadcast IP.
IGMP Snooping Querier Table
Select: Select the desired entry. It is multi-optional.
VLAN ID: Displays t
he ID of the VLAN that enables IGMP Snooping Querier.
Query Interval: Displays the Query Interval of the IGMP Snooping Querier.
Max Response
Time:
Displays the maximal time for the host to respond to a general
query frame sent by IGMP Snooping Querier.
General Query
Source IP:
Displays the source IP of the general query frame sent by IGMP
Snooping Querier.
