The following entries are displayed on this screen:
Create Static Multicast
Multicast IP: Enter the multicast IP add
ress the desired entry must
carry.
VLAN ID: Enter the VLAN ID the desired entry must carry.
Forward Port: Enter the forward ports.
Search Option
Search Option: Select the rule for displaying multicast IP table.
All: Displays all static multicast IP entries.
Multicast IP:
Enter the multicast IP address the
desired entry must carry.
VLAN ID
: Enter the VLAN ID the desired entry must
carry.
Forward Port:
Enter the port number the desired
entry must carry.
Static Multicast Table
Select: Select the stat
ic multicast group entries you want to
configure.
Multicast IP: Displays multicast IP address.
VLAN ID: Displays the VLAN ID of the multicast group.
Forward Port: Displays the forward port of the multicast group.
8.3.3 IPv6 Multicast Table
This page displays the multicast groups which are already on the switch.
Choose the menu Multicast→Multicast Table→IPv6 Multicast Table to load the following page.

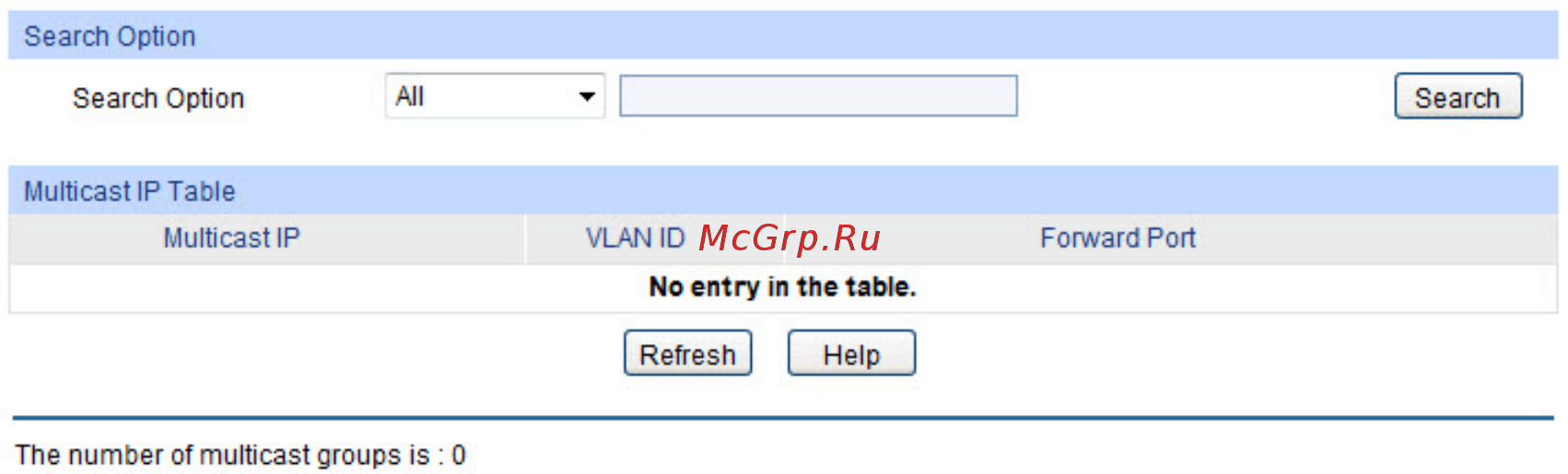

Figure 8-23 IPv6 Multicast Table
The following entries are displayed on this screen:
Search Option
Search Option: Select the rules for displaying multicast IP table.
All: Displays all multicast IP entries.
Multicast IP
: Enter the multicast IP address the
desired entry must carry.
VLAN ID: Enter the VLAN ID the desired entry must
carry.
