Tp-Link T1600G-28PS (TL-SG2424P) [51/269] Application example 2 for ssh

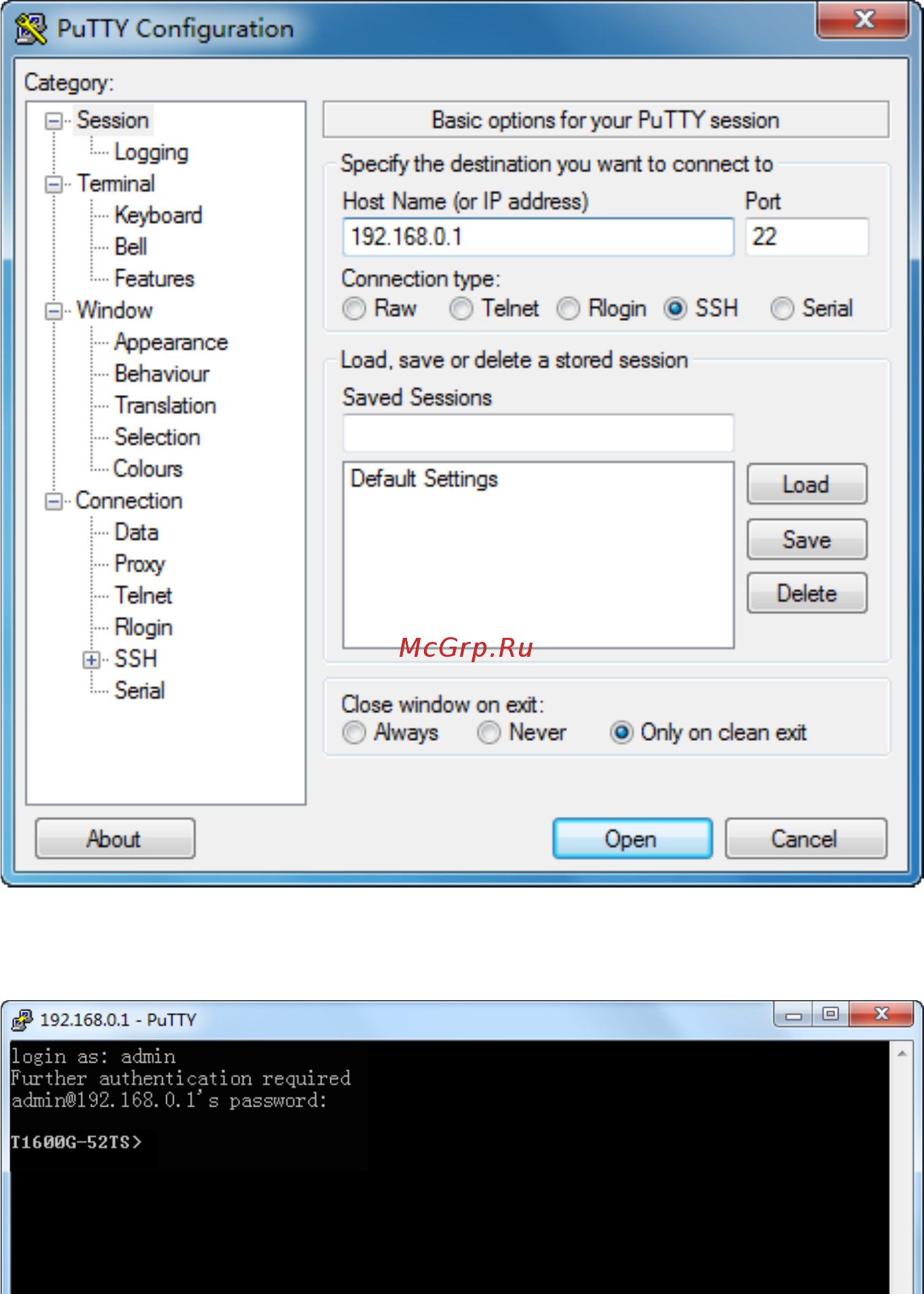

2. Click the Open button in the above figure to log on to the switch. Enter the login user name and

password, and then you can continue to configure the switch.

Application Example 2 for SSH:



Network Requirements

1. Log on to the switch via key authentication using SSH and the SSH function is enabled on the

switch.

2. PuTTY client software is recommended.
