Security Mode of Voice VLAN
When voice VLAN is enabled for a port, you can configure its security mode to filter data stream. If
security mode is enabled, the port just forwards voice packets, and discards other packets whose
source MAC addresses do not match OUI addresses. If security mode is not enabled, the port
forwards all the packets.
Security Mode
Packet Type Processing Mode
Enable
UNTAG packet When the source MAC addre
ss of the packet is the OUI
address that can be identified, the packet can be
transmitted in the voice VLAN. Otherwise, the packet will
be discarded.
Packet with voice
VLAN TAG
Packet with other
VLAN TAG
The processing mode for the device to deal w
ith the packet
is determined by whether the port permits the VLAN or not,
independent of voice VLAN security mode.
Disable
UNTAG packet
Do not check the source MAC address of the packet and all
the packets can be transmitted in the voice VLAN.
Packet
with voice
VLAN TAG
Packet with other
VLAN TAG
The processing mode for the device to deal with the packet
is determined by whether the port permits the VLAN or
not, independent of voice VLAN security mode.
Table 10-3 Security mode and packets processing mode
Note:
Don’t transmit voice stream together with other business packets in the voice VLAN except for
some special requirements.
The Voice VLAN function can be implemented on Global Config, Port Config and OUI Config
pages.
10.3.1 Global Config
On this page, you can configure the global parameters of the voice VLAN, including VLAN ID and
aging time.
Choose the menu QoS→Voice VLAN→Global Config to load the following page.

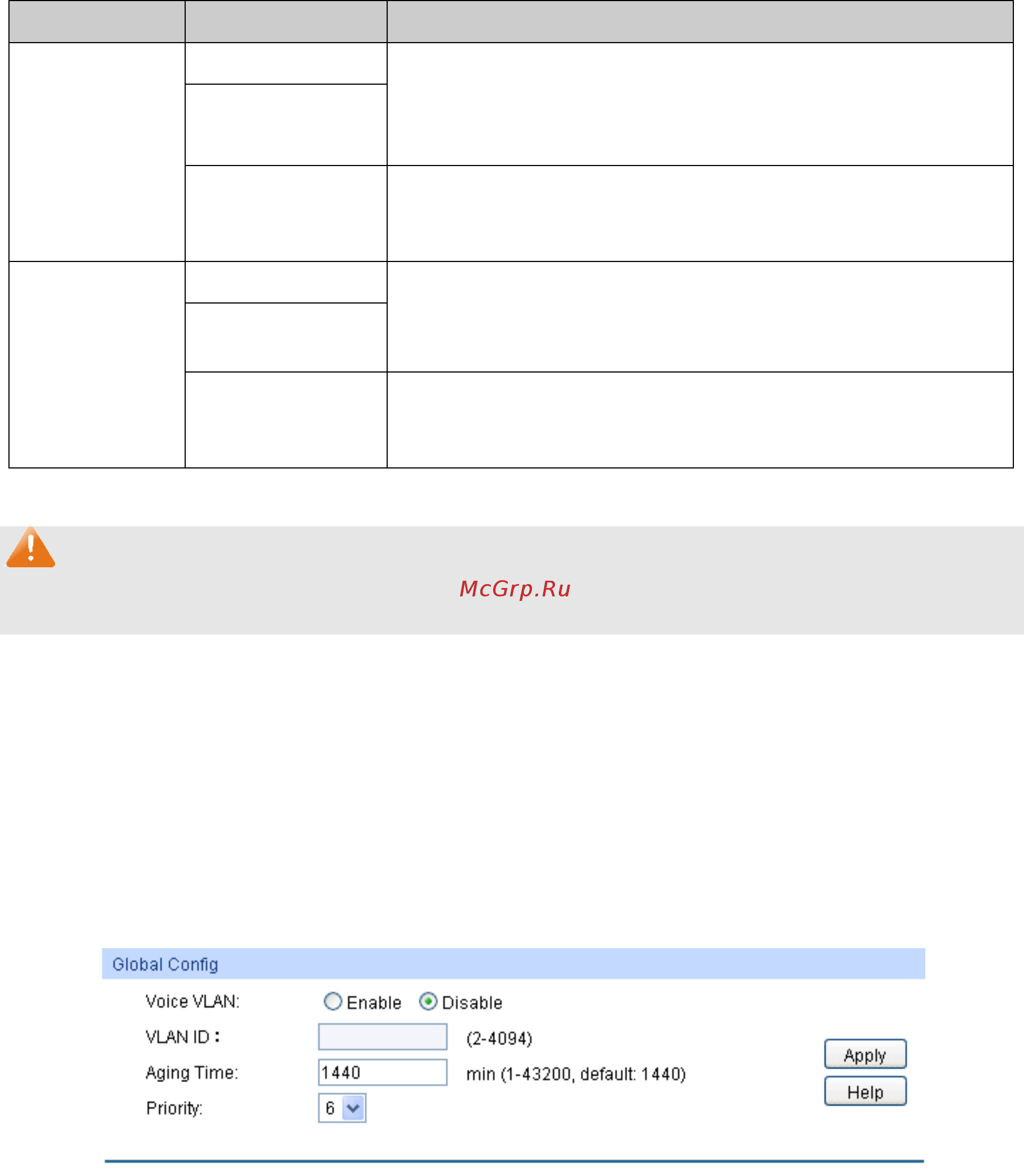

Figure 10-12 Global Configuration
The following entries are displayed on this screen:
Global Config
Voice VLAN: Select Enable/Disable Voice VLAN function.
