Choose the menu PoE→Time-Range→Time-Range Summary to load the following page.

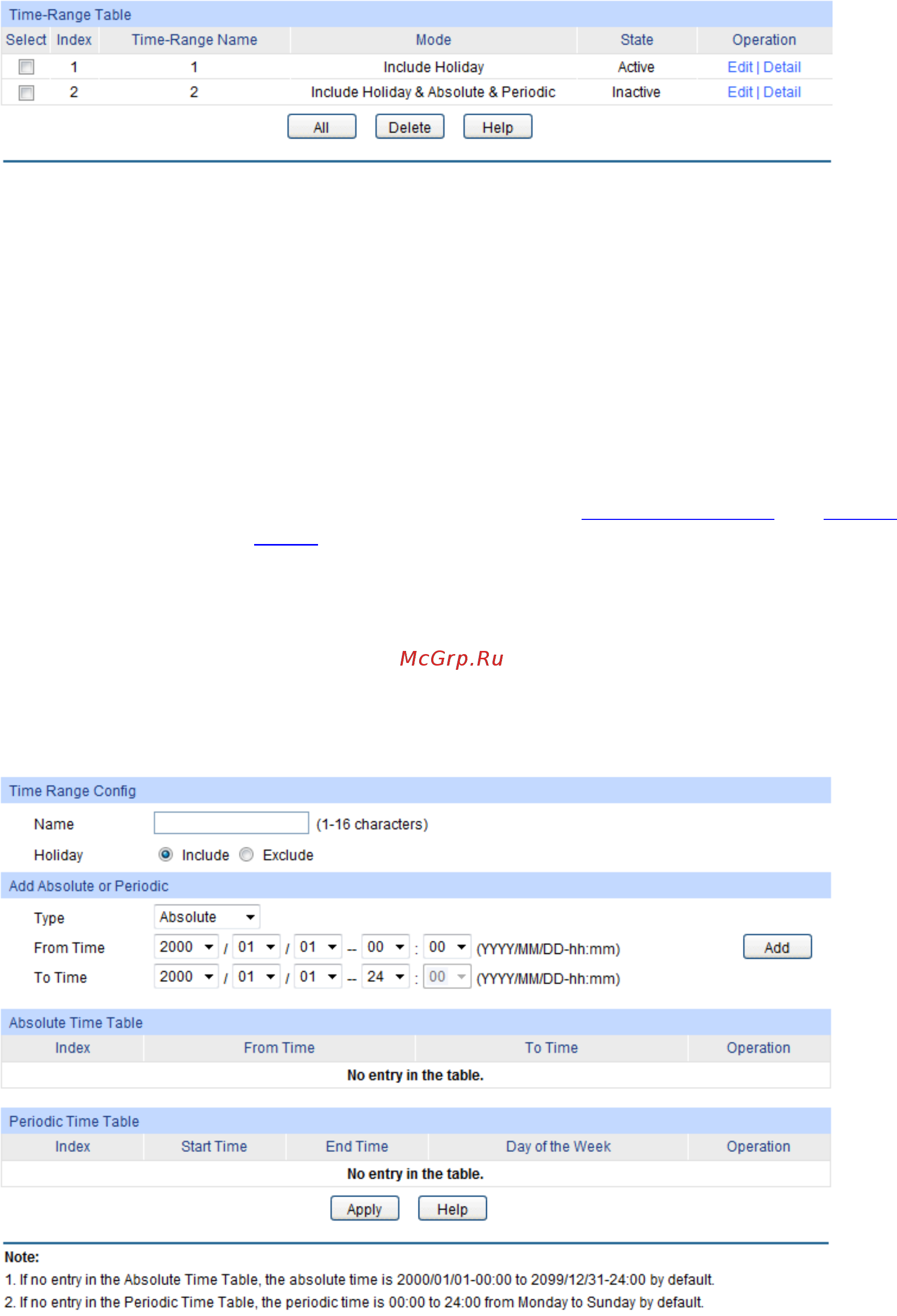

Figure 11-3 Time-Range Table
The following items are displayed on this screen:
Time-Range Table
Select: Select the desired entry to delete the corresponding time-range.
Index: Displays the index of the time-range.
Time-Range Name: Displays the name of the time-range.
Mode: Displays the mode of the time-
range. The mode can be one or a
combination of the following modes: Include/Exclude Holiday
,
Absolute and Periodic. Refer to Time-Range Create and Holiday
Config for more details.
Operation: Click Edit to modify this time-range and click Detail
to display the
complete information of this time–range.
11.2.2 Time-Range Create
On this page you can create time-ranges.
Choose the menu PoE→Time-Range→Time-Range Create to load the following page.
Figure 11-4 Time-Range Create
