The following entries are displayed on this screen:
Auto Fresh
Auto Fresh: Select Enable/Disable auto fresh feature.
Fresh Period:
Enter the time from 3 to 300 seconds to specify the
auto fresh period.
MLD Statistics
Port: Displays the port number of the switch.
Query Packet:
Displays the number of query packets the port
received.
Report Packet (V1): Displays the number of MLDv1 report packets the port
received.
Report Packet (V2): Displays the number of MLDv2 report packets the port
received.
Done Packet:
Displays the number of leave packets the port
received.
Error Packet: Displays the number of error pack
ets the port
received.
8.3 Multicast Table
In a network, receivers can join different multicast groups appropriate to their needs. The switch
forwards multicast streams based on IPv4/IPv6 multicast address table.
The Multicast Table function is implemented on the IPv4 Multicast Table, Static IPv4 Multicast
Table, IPv6 Multicast Table and Static IPv6 Multicast Table pages.
8.3.1 IPv4 Multicast Table
On this page you can view the information of the multicast groups already on the switch. Multicast
IP addresses range from 224.0.0.0 to 239.255.255.255. The range for receivers to join is from
224.0.1.0 to 239.255.255.255.
Choose the menu Multicast→Multicast Table→IPv4 Multicast Table to load the following page.

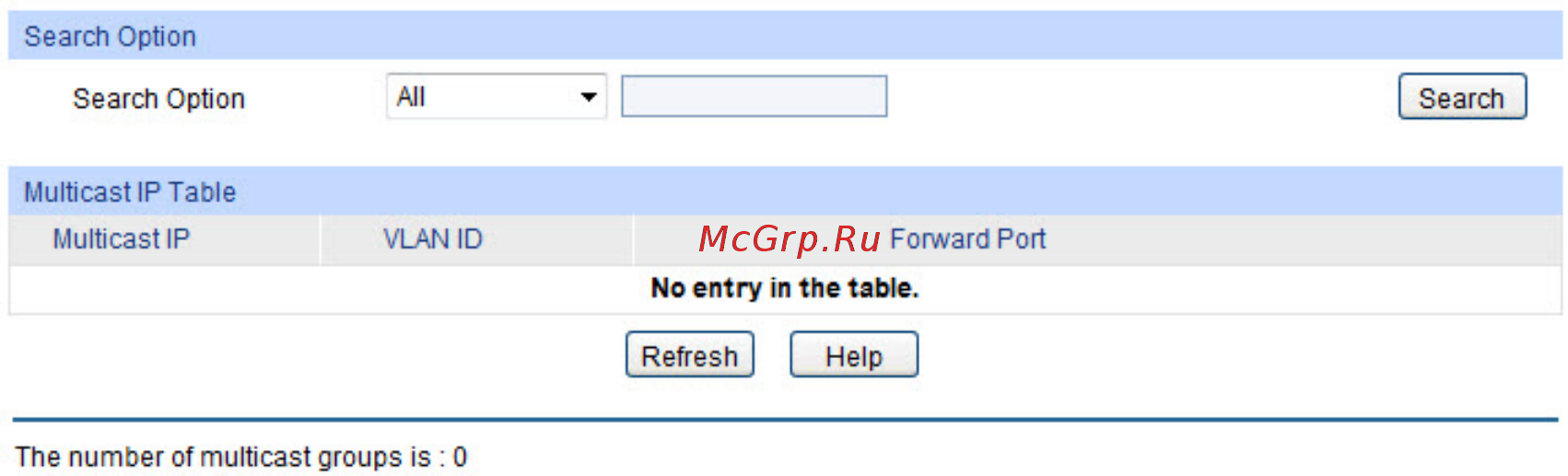

Figure 8-21 IPv4 Multicast Table
