122

Operation:

Click the Edit button to configure the mode or IP-

range of the

Profile.

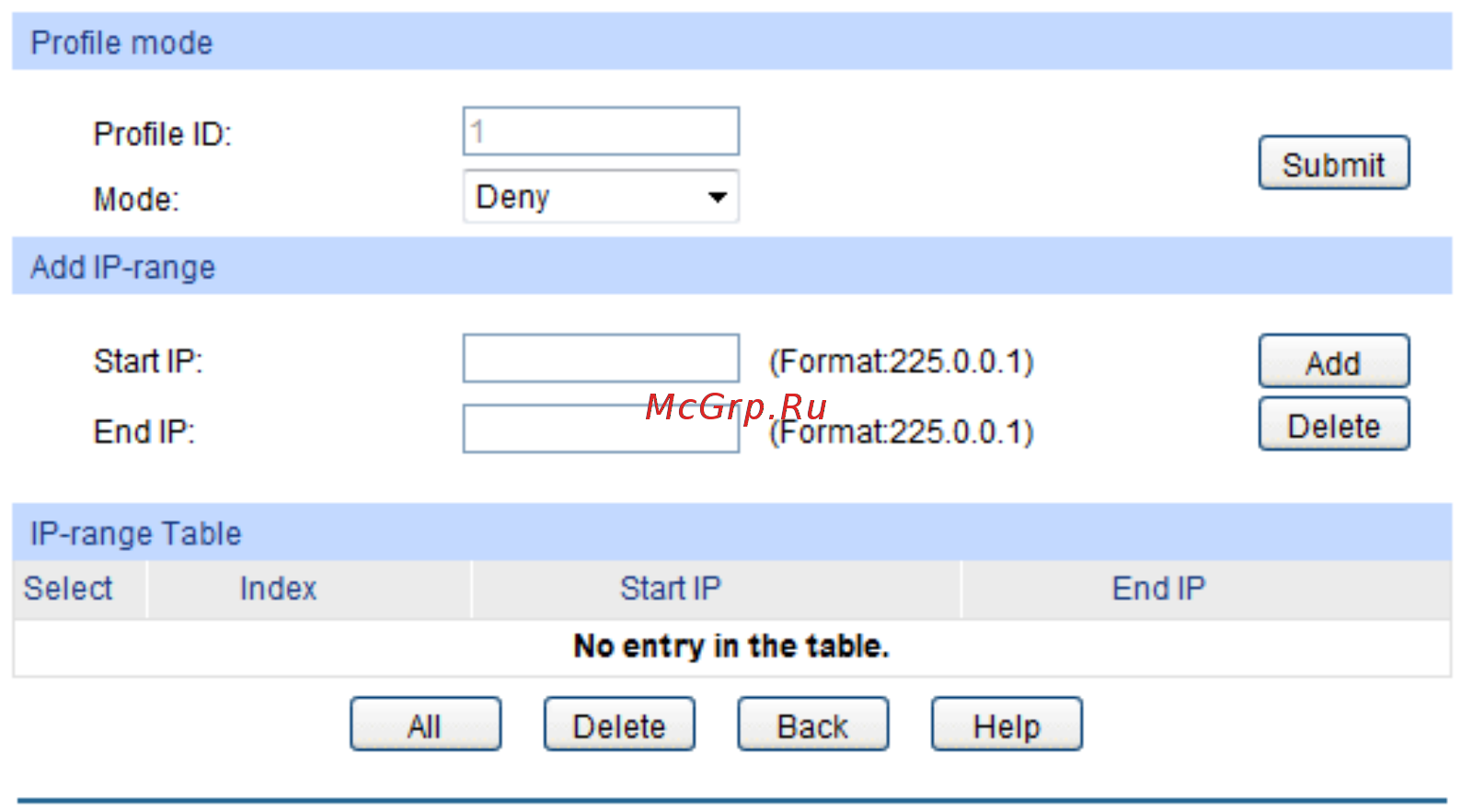

After you have created a profile ID, click Edit to display the following figure.

The following entries are displayed on this screen:



Profile Mode

Profile ID: Displays the Profile ID you have created.

Mode: The attributes of the profile.

 Permit

: Only permit the IP address within the IP range and

deny others.

 Deny

: Only deny the IP address within the IP range and permit

others.



Add IP-range

Start IP: Enter start IP address of the IP-range.

End IP: Enter end IP address of the IP-range.



IP-range Table

Select: Select the desired entry for configuration.

Index: Displays index of the IP-range which is not configurable.

Start IP: Displays the start IP address of the IP-range.

End IP: Displays the

end IP address of the IP-range.

8.1.7 Profile Binding

When the switch receives IGMP report message, it examines the profile ID bound to the access

port to determine if the port can join the multicast group. If the multicast IP is not filtered, the switch

will add the port to the forward port list of the multicast group. Otherwise, the switch will drop the

IGMP report message. In that way, you can control the multicast groups that users can access.
