Tp-Link T1600G-28PS (TL-SG2424P) [166/269] Configuration procedure

156

Choose the menu QoS→DiffServ→DSCP Priority to load the following page.

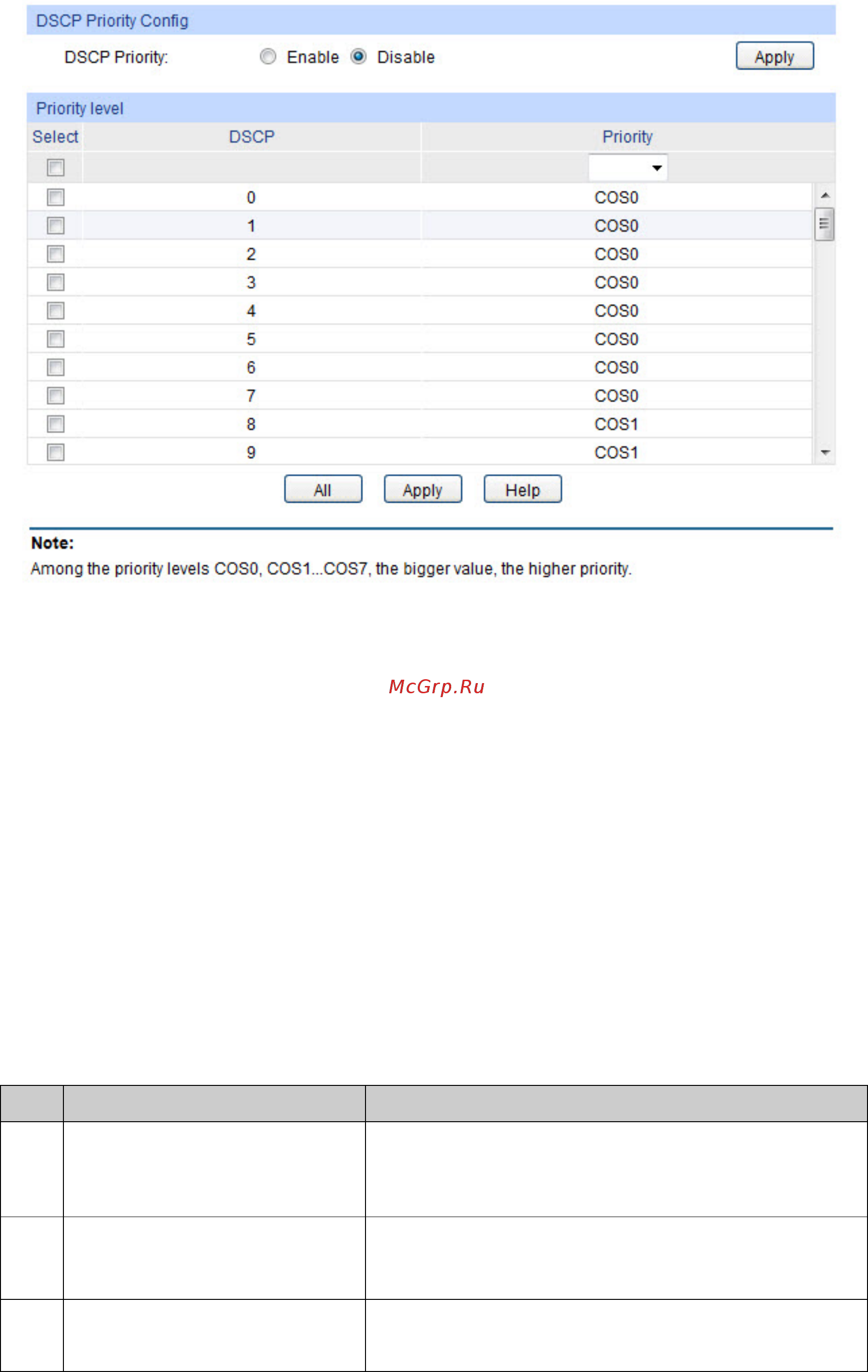

Figure 10-9 DSCP Priority

The following entries are displayed on this screen



DSCP Priority Config

DSCP Priority: Select Enable or Disable DSCP Priority.



Priority Level

Select:

Select the desired DSCP value for DSCP priority configuration. It

is multi-optional.

DSCP:

Indicates the priority determined by the DS region of IP datagram.

It ranges from 0 to 63.

Priority: Indicates the 802.1P priority the pac

kets with tag are mapped to.

The priorities are labeled as CoS0 ~ CoS7.

Configuration Procedure:

Step Operation Description

Configure the mapping relation

between the DSCP priority and

802.1P priority

Required. On QoS→DiffServ→DSCP Priority

page,

enable DSCP Priority and configure the mapping

relation between the DSCP priority and CoS.

Configure the mapping relation

between the CoS and the TC

Required. On QoS→DiffServ→802.1P Priority

page,

configure the mapping rela

tion between the CoS and

the TC.

3 Select a schedule mode

Required. On QoS→DiffServ→Schedule Mode

page,

select a schedule mode.
