Mode: The attributes of the profile.
Permit
: Only permit the IP address within the IP
range and deny others.
Deny:
Only deny the IP address within the IP
range and permit others.
Search Option
Search Option: Select the rules for displaying profile entries.
All: Display all profile entries.
Profile ID: Display profile entry of the ID.
MLD Profile Info
Select: Select the profile entries you want to config.
Profile ID: Displays the profile ID.
Mode: Displays the attribute of the profile.
Permit:
Only permit the IP address within the IP
range and deny others.
Deny:
Only deny the IP address within the IP
range and permit others.
Bind Ports: Displays the ports that the profile bound to.
Operation: Click the Edit
button to configure the mode or
IP-range of the Profile.

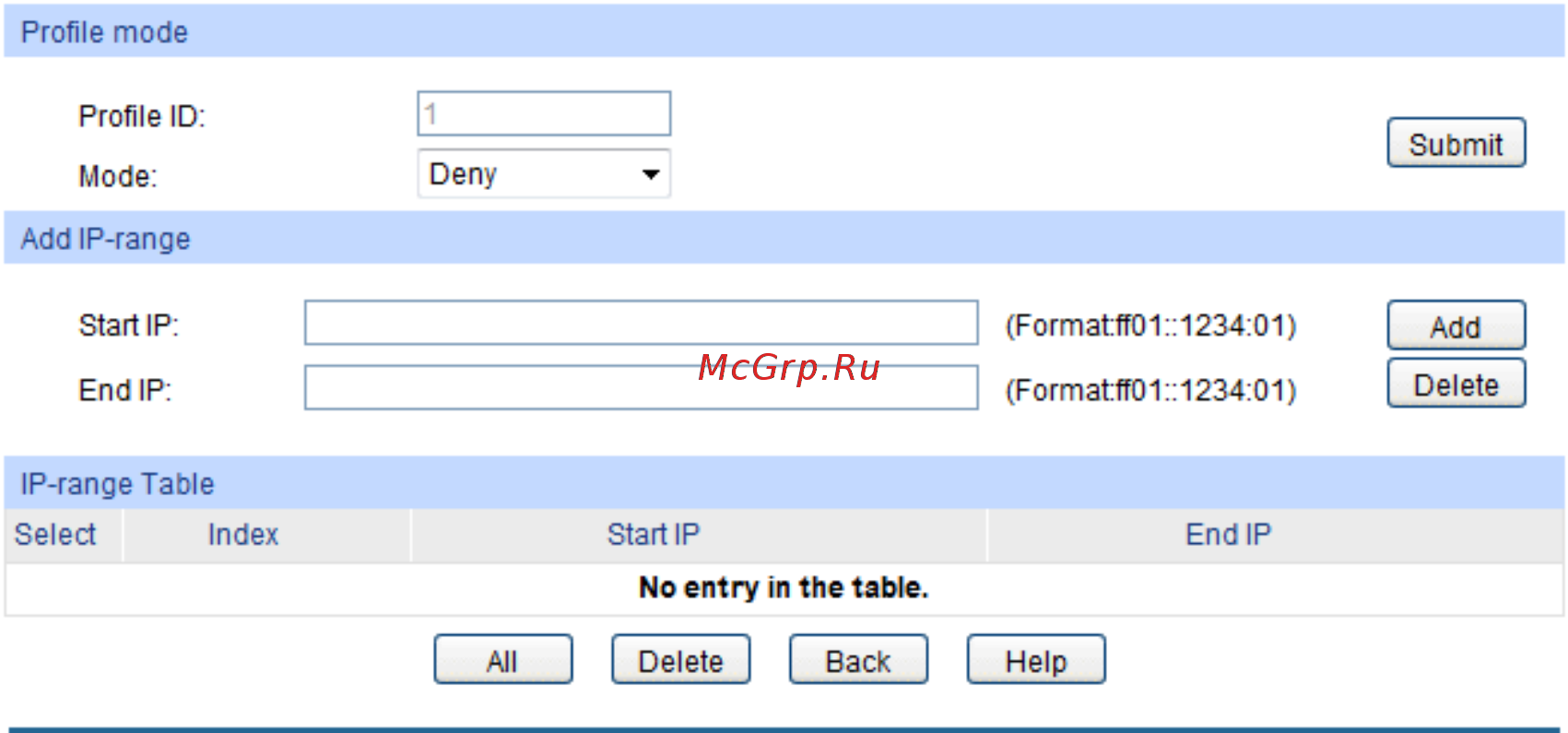

After you have created a profile ID, click Edit to display the following figure.
The following entries are displayed on this screen:
Profile Mode
Profile ID: Displays the Profile ID you have created.
