136

Choose the menu Multicast→MLD Snooping→Profile Binding to load the following page.

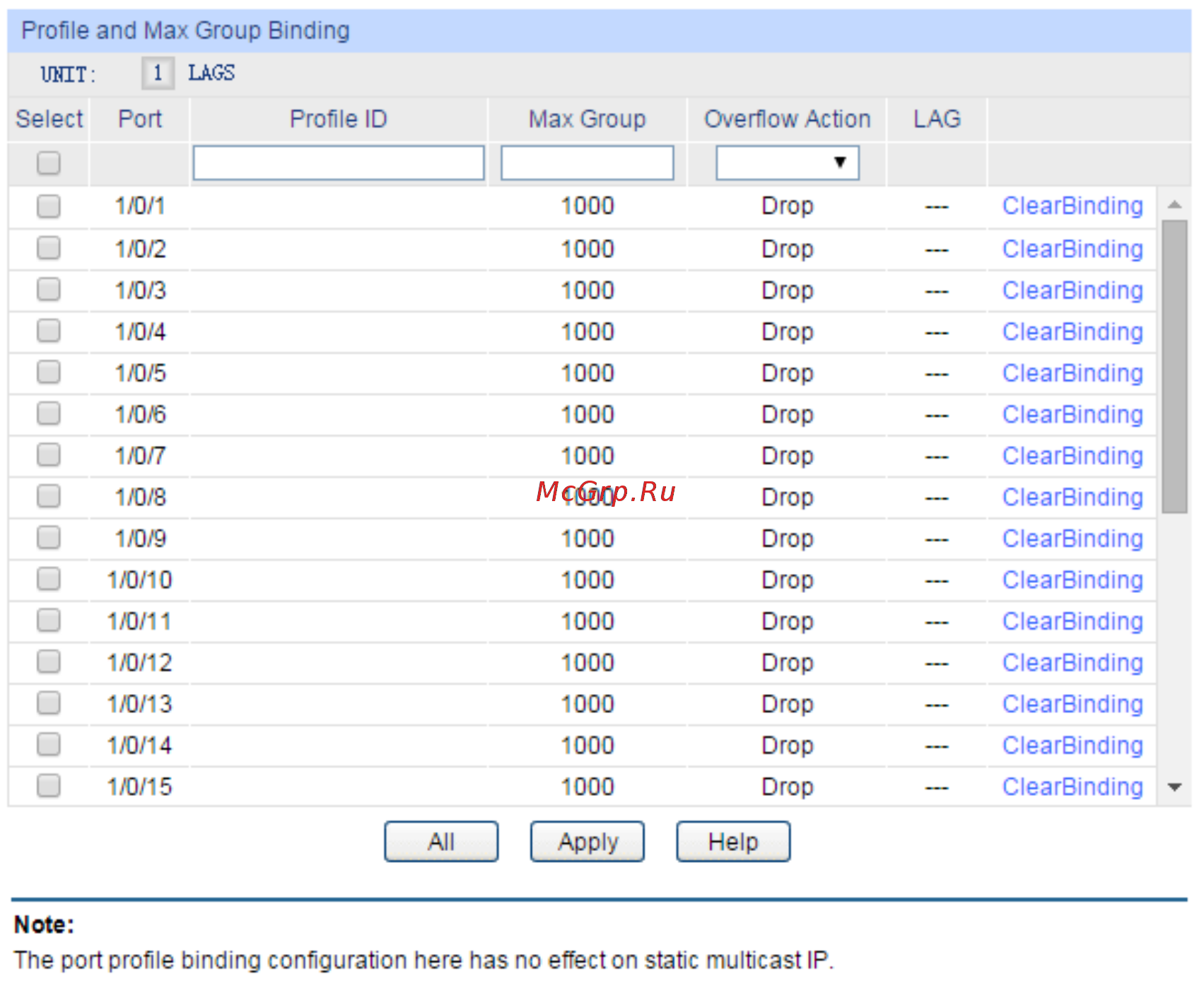

Figure 8-19 Profile Config

The following entries are displayed on this screen:



Profile and Max Group Binding

UNIT:1/LAGS: Click 1 to configure the physical ports. Click LAGS to

configure the link aggregation groups.

Select:

Select the desired port for multicast filtering. It is

multi-optional.

Port: The port to be bound.

Profile ID: The existing Profile ID bound to the selected port.

Max Group: T

he maximum multicast group a port can join, range

from 0 to 1000.

Overflow Action:

The policy should be taken when the number of

multicast group a port has joined reach the maximum.

 Drop:

Drop the successive report packet, and this

port cannot join any other multicast group.

 Replace: When the number of the dynamic multicast

groups that a port joins has exceeded the max-group,

the newly joined multicast group will replace an

existing multicast group with the lowest multicast

group address.

LAG: The LAG number which the port belongs to.
