LEDs
Name Status Indication
PWR
On The switch is powered on
Flashing Power supply is abnormal
Off The switch is powered off or power supply is abnormal
SYS
Flashing
The switch is working normally
On/Off The switch is working abnormally
1000Mbps
On
A 1000Mbps device is connected to the corresponding port
Off
A 10/100Mbps device or no device is connected to the
corresponding port
Link/Act
On
A device is connected to the corresponding port but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port

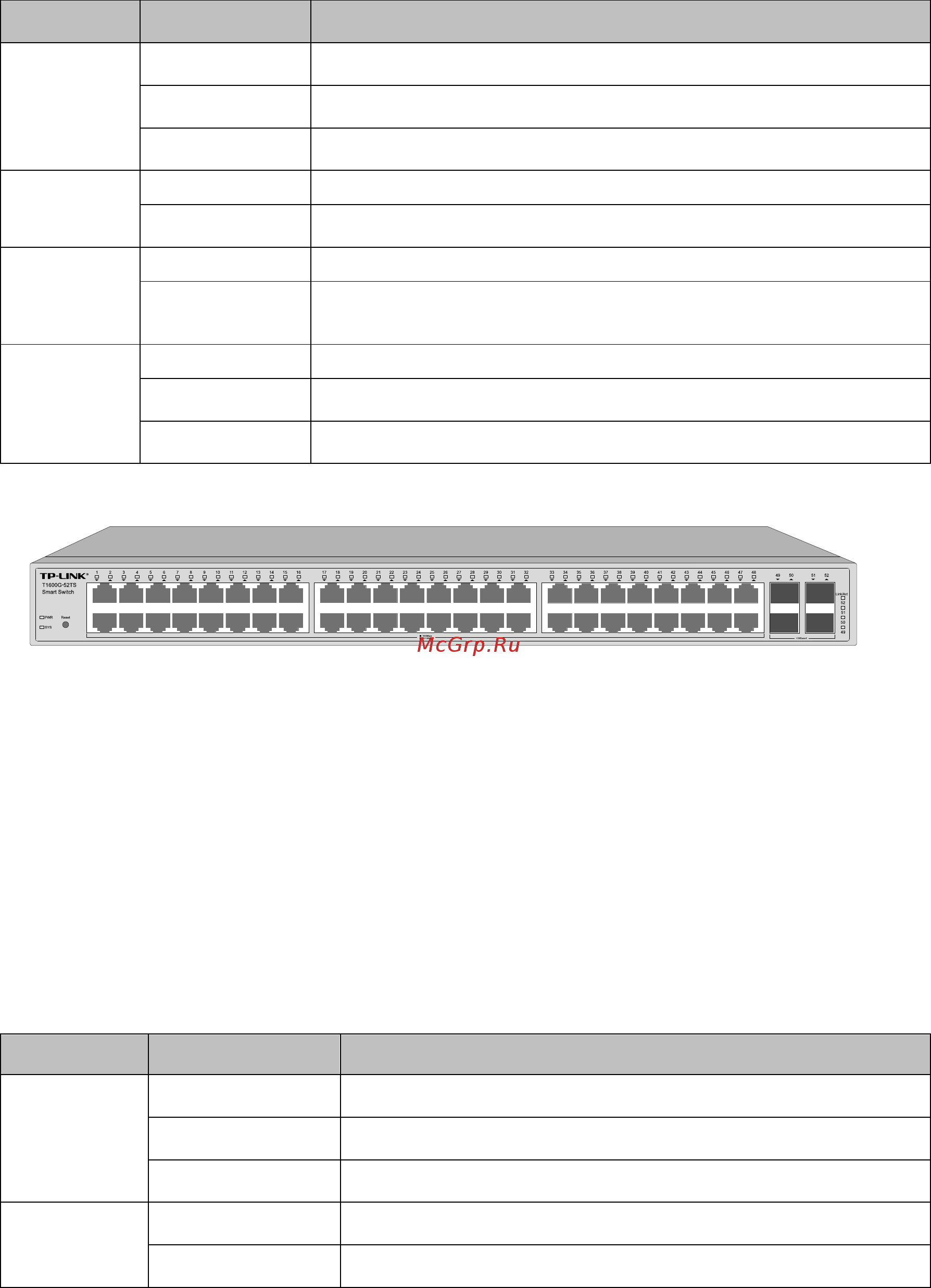

The front panel of T1600G-52TS is shown as Figure 2-2.
Figure 2-2 Front Panel of
T1600G-52TS
The following parts are located on the front panel of T1600G-52TS:
Reset: Press this button for 5 seconds or above to reset the software setting back to factory
default settings.
10/100/1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps,
100Mbps or 1000Mbps. Each has a corresponding 10/100/1000Mbps LED.
SFP Ports: Designed to install the SFP module. T1600G-52TS features 4 individual SFP ports
and supports 1000M SFP module connection only.
LEDs
Name Status Indication
PWR
On The switch is powered on
Flashing Power supply is abnormal
Off The switch is powered off or power supply is abnormal
SYS
Flashing The switch works properly
On/Off The switch works improperly
