193

Option 82 can contain 255 sub-options at most. If Option 82 is defined, at least a sub-option

should be defined. This switch supports two sub-options: Circuit ID and Remote ID. Since there is

no universal standard about the content of Option 82, different manufacturers define the

sub-options of Option 82 to their need. For this switch, the sub-options are defined as the following:

The Circuit ID is defined to be the number of the port which receives the DHCP Request packets

and its VLAN number. The Remote ID is defined to be the MAC address of DHCP Snooping

device which receives the DHCP Request packets from DHCP Clients.



DHCP Cheating Attack

During the working process of DHCP, generally there is no authentication mechanism between

Server and Client. If there are several DHCP servers in the network, network confusion and

security problem will happen. The common cases incurring the illegal DHCP servers are the

following two:

(1) It’s common that the illegal DHCP server is manually configured by the user by mistake.

(2) Hacker exhausted the IP addresses of the normal DHCP server and then pretended to be

a legal DHCP server to assign the IP addresses and the other parameters to Clients. For

example, hacker used the pretended DHCP server to assign a modified DNS server

address to users so as to induce the users to the evil financial website or electronic trading

website and cheat the users of their accounts and passwords. The following figure

illustrates the DHCP Cheating Attack implementation procedure.

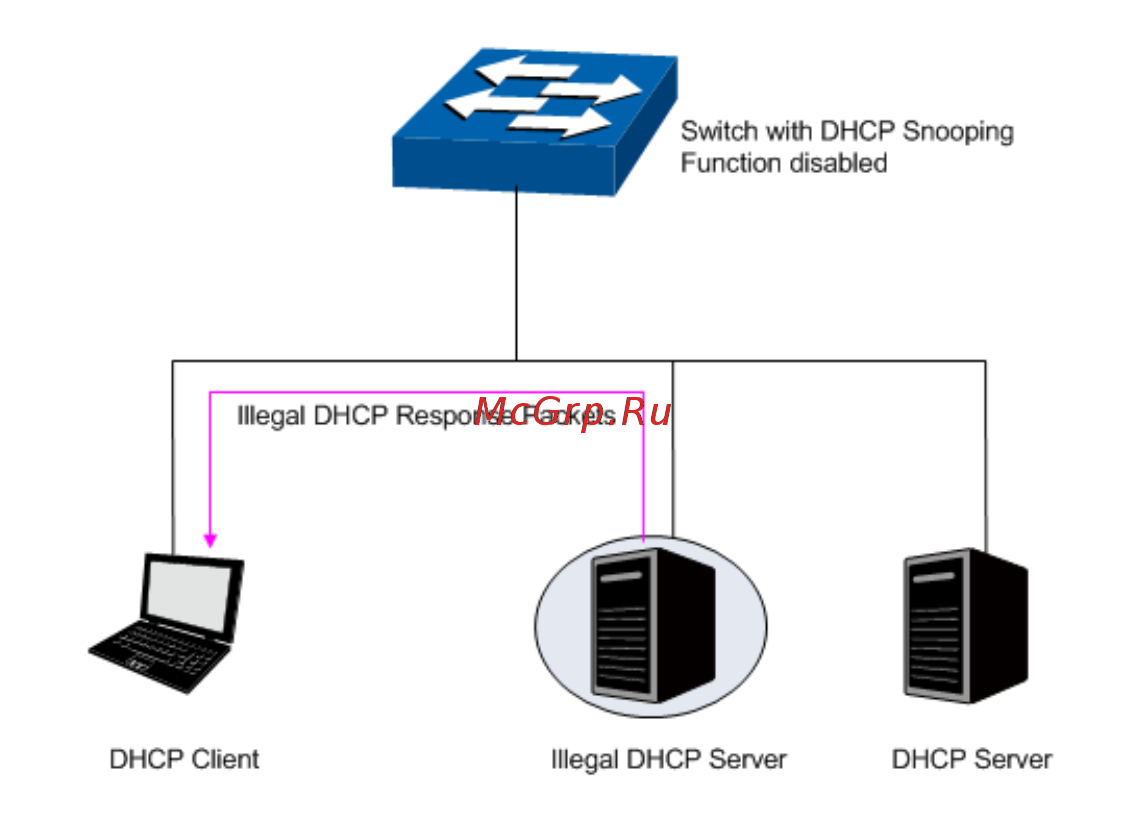

Figure 13-8 DHCP Cheating Attack Implementation Procedure

DHCP Snooping feature only allows the port connected to the DHCP Server as the trusted port to

forward all types of DHCP packets and thereby ensures that users get proper IP addresses. DHCP

Snooping is to monitor the process of the Host obtaining the IP address from DHCP server, and

record the IP address, MAC address, VLAN and the connected Port number of the Host for

automatic binding. The bound entry can cooperate with the ARP Inspection and the other security

protection features. DHCP Snooping feature prevents the network from the DHCP Server

Cheating Attack by discarding the DHCP response packets on the distrusted port, so as to

enhance the network security.
