48
Source: Displays the mirrored ports.
Operation: You can configure the mirror session by clicking Edit
, or clear the
mirror session configuration by clicking the Clear.
Click Edit to display the following figure.

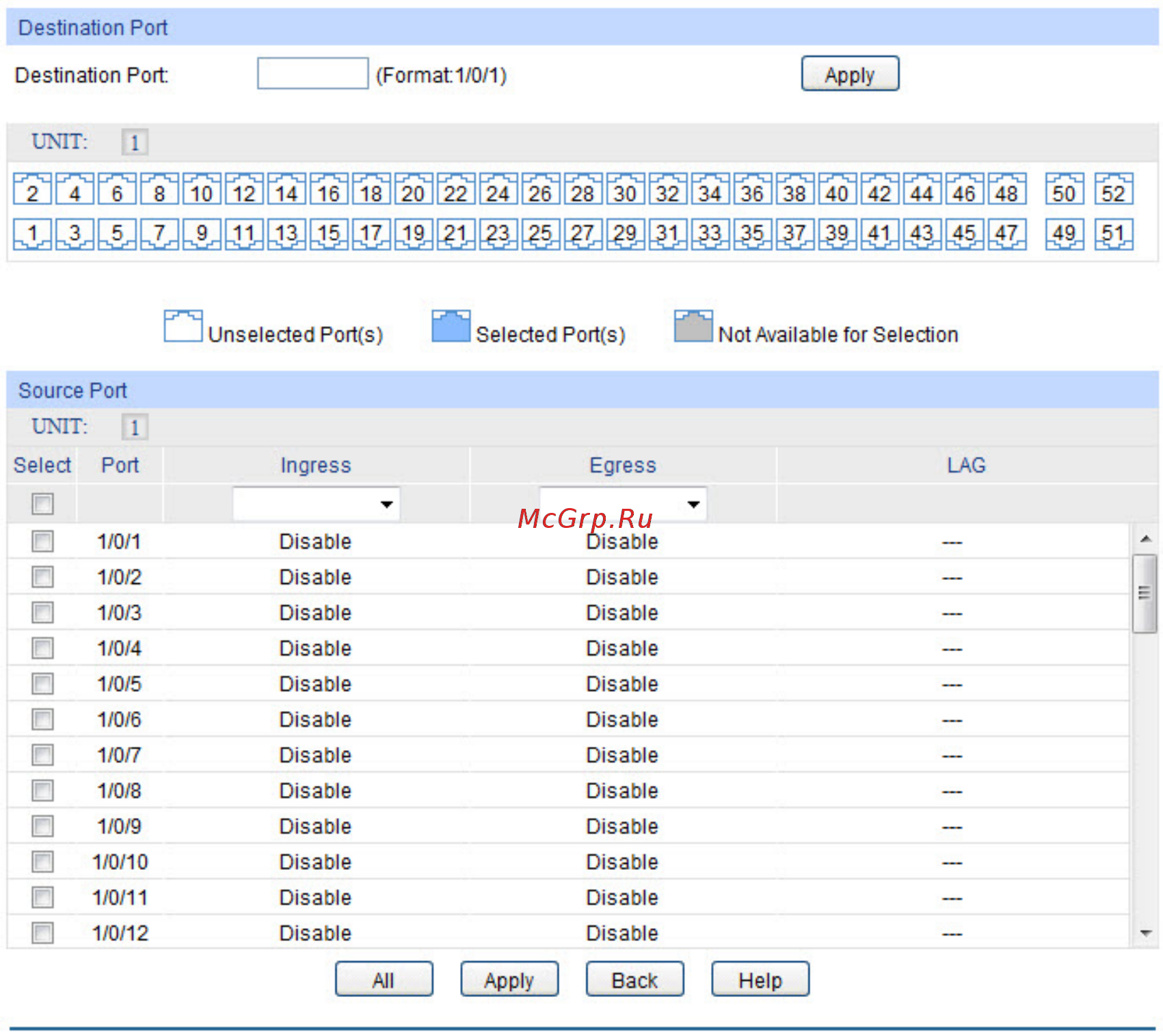

Figure 5-3 Port Mirror Config
The following entries are displayed on this screen:
Destination Port
Destination Port:
Input or select a physical port from the port panel as the mirroring
port.
Source Port
Select: Select the desired port as a mirrored port. It is multi-optional.
Port: Displays the port number.
Ingress:
Select Enable/Disable the Ingress feature. When the Ingress is
enabled, the incoming packets received by the mirrored port will be
copied to the mirroring port.
