Choose the menu VLAN→802.1Q VLAN→Port Config to load the following page.

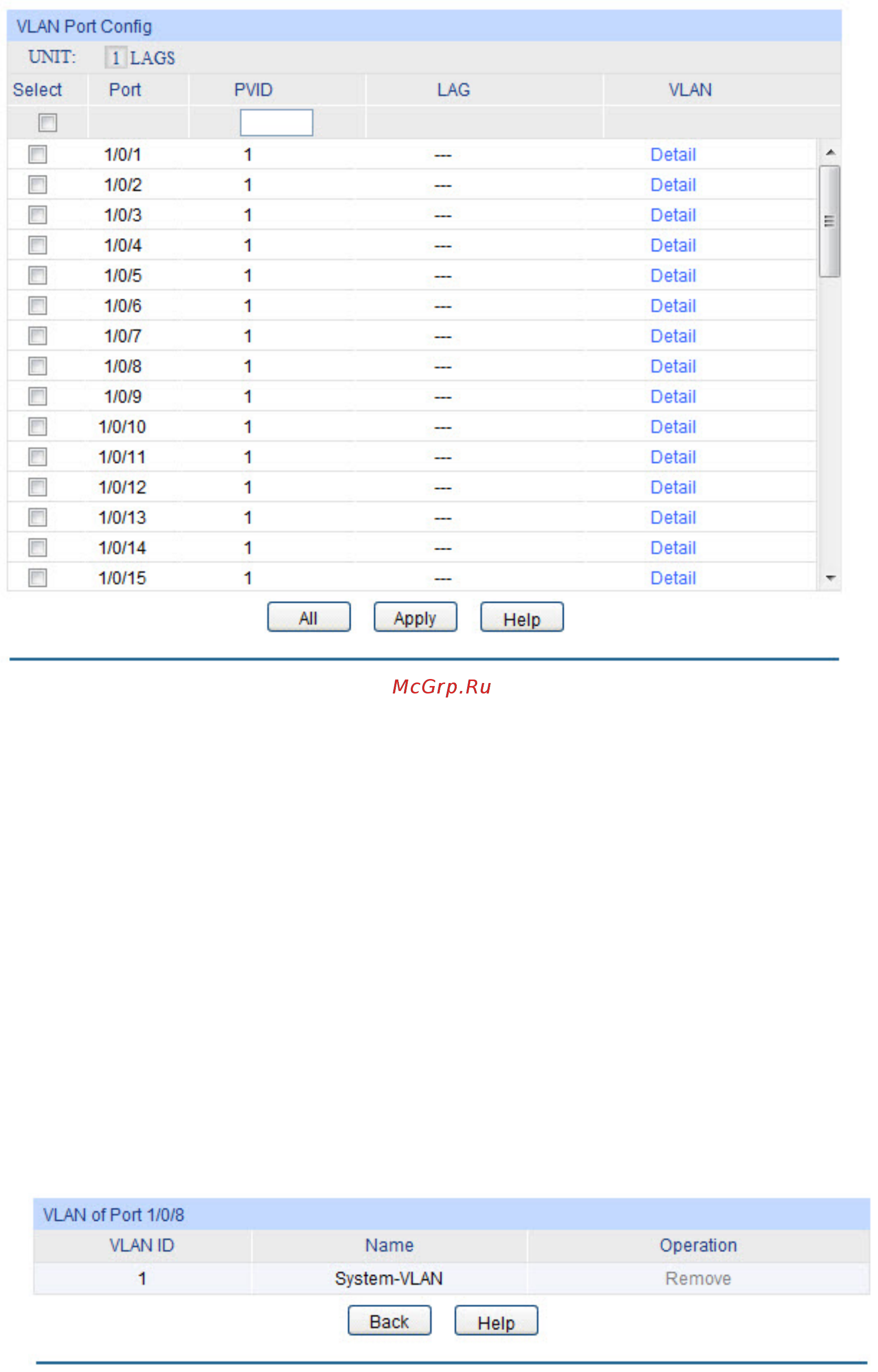

Figure 6-5 Port Config

The following entries are displayed on this screen:



VLAN Port Config

UNIT:1/LAGS: Click 1 to configure the physical ports. Click LAGS

to configure the

link aggregation groups.

Select:

Select the desired port for configuration. It is multi-optional.

Port:

Displays the port number.

PVID: Enter the PVID number of the port.

LAG: Displays the LAG to which the port belongs.

VLAN: Click the Detail

button to view the information of the VLAN to

which the port belongs.

Click the Detail button to view the information of the corresponding VLAN.

Figure 6-6 View the Current VLAN of Port
