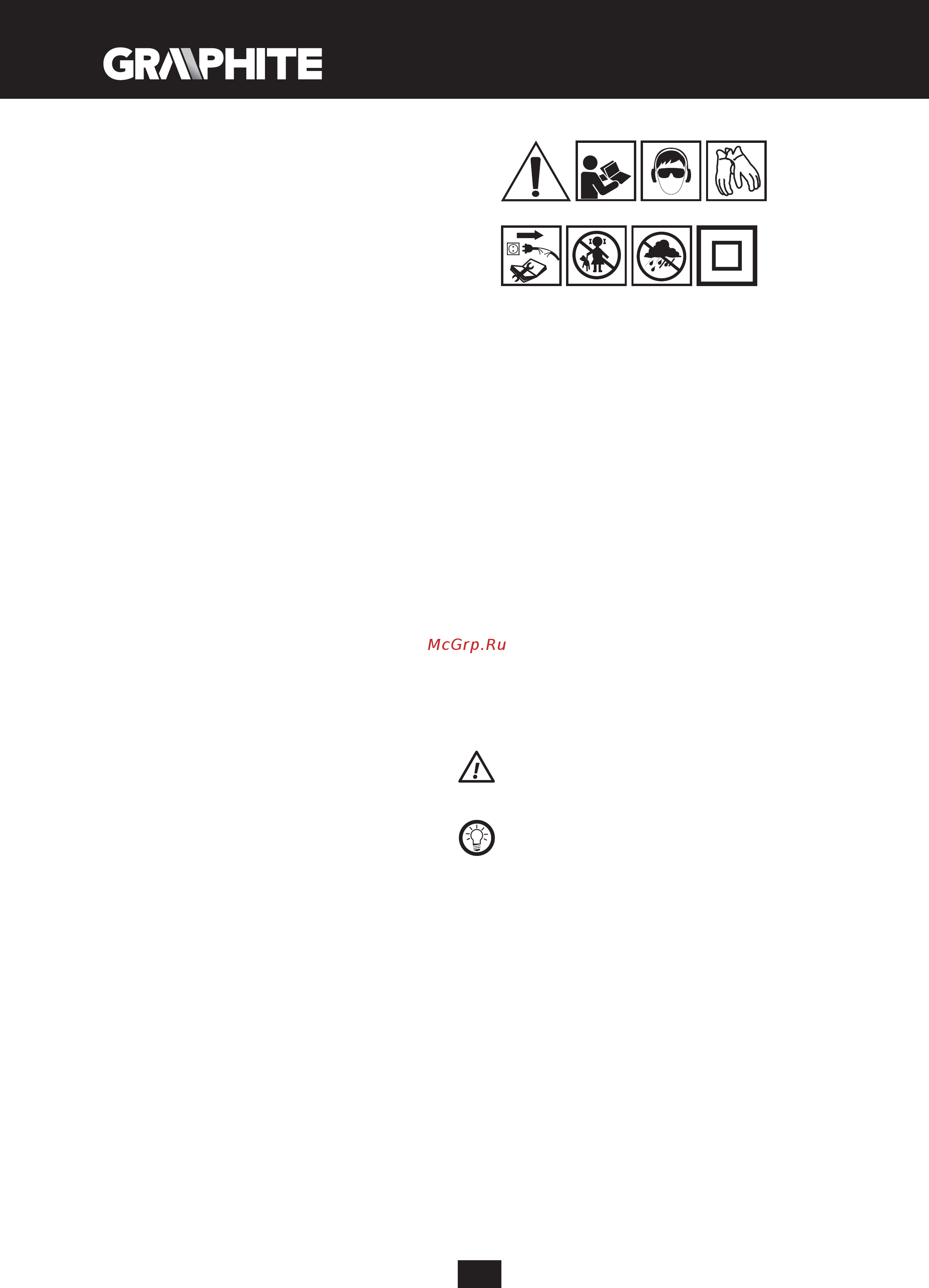

Descriptions of used pictograms.

1 2 3 4

5 6 7 8

1. Warning, take special precautions.

2. Read the instruction manual, observe warnings and safety

conditions included in it!

3. Use personal protection equipment (safety goggles, ear

protectors).

4. Use safety gloves.

5. Disconnect the power cord, before maintenance or repair

works are begun.

6. Keep out of reach of children.

7. Protect against rain

8. Protection class II

DESIGN AND APPLICATION

The angle grinder is a hand-held power tool with the II

class isolation. The power tool is driven with a single-phase,

commutator motor, whose rotational speed is reduced by means

of an intersecting axis gear. The power tool can used both for

grinding and cutting. This type of power tools is widely used for

removal of burrs from metal surfaces, weld surface processing,

cutting light-wall tubes and other small metal objects etc. They

are used in engineering industry, automotive and chemical

industry. With the use of proper tools, the angle grinder can be

used not only for cutting or grinding, but also for rust and paint

coats removal.

The areas of its application include repair and construction

works, not only related to metals. The angle grinder can also be

used for cutting and grinding of construction materials, such as

brick, paving stones, ceramic tiles, etc.

The power tool is designed for dry operation only and it must

not be used for polishing. The power tool should be used

according to its purpose.

Use inconsistent with its purpose

• Do not work materials that contain asbestos. Asbestos is

carcinogenic.

• Do not work materials, whose dust is inflammable or

explosive. During operation, the power tool produces sparks,

which may ignite emitted vapours.

• Do not use cut-off wheels for grinding. The cut-off wheels

are used to cut with its face, while grinding with lateral surface

of such a cut-off wheel threatens with its damages and puts the

operate in danger of injuries.

DESCRIPTION OF GRAPHIC PAGES

The below list refers to device components shown in the graphic

pages of this instruction manual.

1. Spindle lock button

2. Switch

3. Additional handle

4. Grinding wheel cover

5. External flange

6. Internal flange

7. Switch lock button

8. Carbon brush cover

9. Main handle lock

10. Lever (grinding disc guard)

* There can be differences between the drawing and actual product.

Specific safety guidelines for working with wire brushes

• It should always be remembered that pieces of wire are

lost even during normal use. Do not overload wires by

putting excessive pressure. Airborne pieces of wire may easily

puncture thin clothing and/or skin.

• If a guard is recommended to be used, prevent a brush

from touching the guard. A brush diameter for plates and pots

may increase due to the pressure and centrifugal forces.

Additional safety guidelines

• Before connecting to the power source, always make sure

the supply voltage is compatible with the value specified

on the nameplate of the tool.

• Before the grinder is connected, always check the power

cord. In case of damage, have it repaired in an authorised

workshop.

• Before all installation works, the plug should be taken out

of the receptacle.

• Grinding tools should be checked before each use. A

grinding tool must be correctly fastened and should rotate

freely. As part of the test, the tool should be switched on

with no load for at least one minute in a safe position. Do

not use damaged or vibrating grinding tools. Grinding

tools should be round. Damaged grinding tools may break

and cause injuries.

• Once a grinding tool is installed and before the grinder

is switched on, check the grinding tool for correct

installation and free rotations, and whether it does not

catch the guard.

• The spindle lock button can be activated, only when the

grinder spindle does not move.

• In case of tools adapted for fastening of grinding wheels

with a threaded opening, make sure the grinding wheel

thread length is suitable for the spindle thread length.

• Always secure the workpiece. It is always preferable to

secure the workpiece in a vice or other fastening tool than

holding it in your hand.

• If own weight of the workpiece does not guarantee a stable

position, it should be fastened.

• Do not touch cut-off and grinding wheels, before they cool

down.

• Do not exert lateral pressure on the grinding or cut-off

wheel.

• Do not cut a workpiece of a thickness larger than the

maximum cutting depth of the cut-off wheel.

• When quick release flange is used, make sure that inner

flange seated on the spindle is equipped with rubber

O-ring and this ring is not damaged. Also surfaces of the

outer flange and the inner flange must be clean.

• Use quick release flange only with cutting and grinding

discs. Use only flanges that are free from defects, that

operate correctly.

• In case of temporary mains power failure or after

disconnecting plug from mains socket with the switch in

ON position, unlock the switch and set it to OFF position

before starting the tool again.

NOTE: The tools is intended for indoor works.

Despite using the construction, which is safe by design itself,

protection means and additional safety features, there is

always a residual risk of injuries during operation.
