75

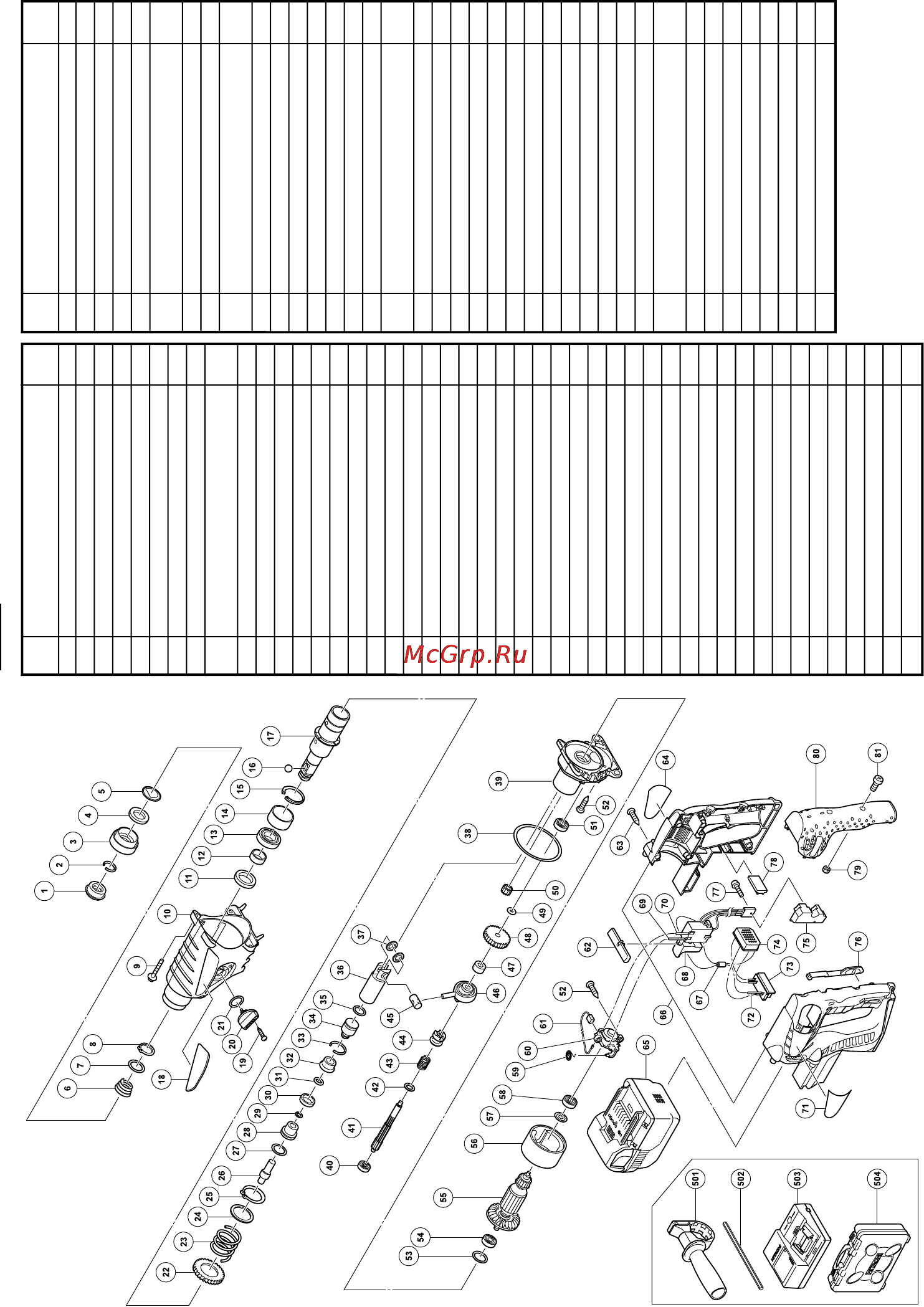

DH25DL
Item
No.
Part Name Q’TY
1 FRONT CAP 1
2 STOPPER RING 1
3 GRIP 1
4 BALL HOLDER 1
5 HOLDER PLATE 1
6 HOLDER SPRING 1
7 WASHER (B) 1
8 RETAINING RING FOR D20 SHAFT 1
9
TAPPING SCREW (W/FLANGE)
D5×25
4
10 GEAR COVER (A) 1
11 OIL SEAL 1
12 SLEEVE 1
13 BALL BEARING 6904DDPS2L 1
14 SLEEVE (A) 1
15 RETAINING RING 37MM 1
16 STEEL BALL D7.0 1
17 CYLINDER 1
18 HITACHI PLATE 1
19 TAPPING SCREW D2.6×10 1
20 CHANGE LEVER (A) 1
21 O-RING (S-18) 1
22 SECOND GEAR 1
23 SPRING (A) 1
24 WASHER (A) 1
25 RETAINING RING D30 1
26 SECOND HAMMER 1
27 O-RING (1AP-20) 1
28 HAMMER HOLDER 1
29 O-RING (B) 1
30 DAMPER (A) 1
31 O-RING (C) 1
32 DAMPER HOLDER 1
33 STOPPER RING 1
34 STRIKER 1
35 O-RING (I.D. 16) 1
36 PISTON 1
37 WASHER (C) 2
38 O-RING (I.D. 72) 1
39 INNER COVER ASS'Y (INCLUD.51) 1
40 BALL BEARING 608DDC2PS2L 1
41 SECOND SHAFT (A) 1
42 WASHER (B) 1
43 CLUTCH SPRING 1
44 CLUTCH 1
45 PISTON PIN 1
46 RECIPROCATING BEARING 1
Item
No.
Part Name Q’TY
47 COLLAR 1
48 FIRST GEAR 1
49 SPACER 1
50 PINION 1
51 BALL BEARING 626VVC2PS2L 1
52
TAPPING SCREW (W/FLANGE)
D4×16
4
53 O-RING (P-22) 1
54 BALL BEARING 608DDC2PS2L 1
55
ARMATURE AND PINION ASS'Y
(INCLUD.50,54,57,58)
1
56 MAGNET 1
57 WASHER (A) 1
58 BALL BEARING 608DDC2PS2L 1
59 SPRING 2
60 BRUSH HOLDER 1
61 CARBON BRUSH 2
62 PUSHING BUTTON 1
63
TAPPING SCREW (W/FLANGE)
D4×20
6
64 NAME PLATE 1
65 BATTERY BSL2530 2
66 HOUSING (A).(B) SET 1
67 FERRITE CORE 1
68 DC-SPEED CONTROL SWITCH 1
69 INTERNAL WIRE (RED) 1
70 INTERNAL WIRE (BLACK) 1
71 HITACHI LABEL 1
72 INTERNAL WIRE 1
73 BATTERY TERMINAL 1
74 CONTROLLER 1
75 HEAT SINK 1
76 SHIFT KNOB 1
77
MACHINE SCREW (W/WASHERS)
M3×12
1
78 RUBBER HOLDER 1
79 NUT M4 2
80 GRIP COVER 1
81 MACHINE SCREW M4×82
501 SIDE HANDLE 1
502 DEPTH GAUGE 1
503 CHARGER (MODEL UC36YRL) 1
504 CASE 1
