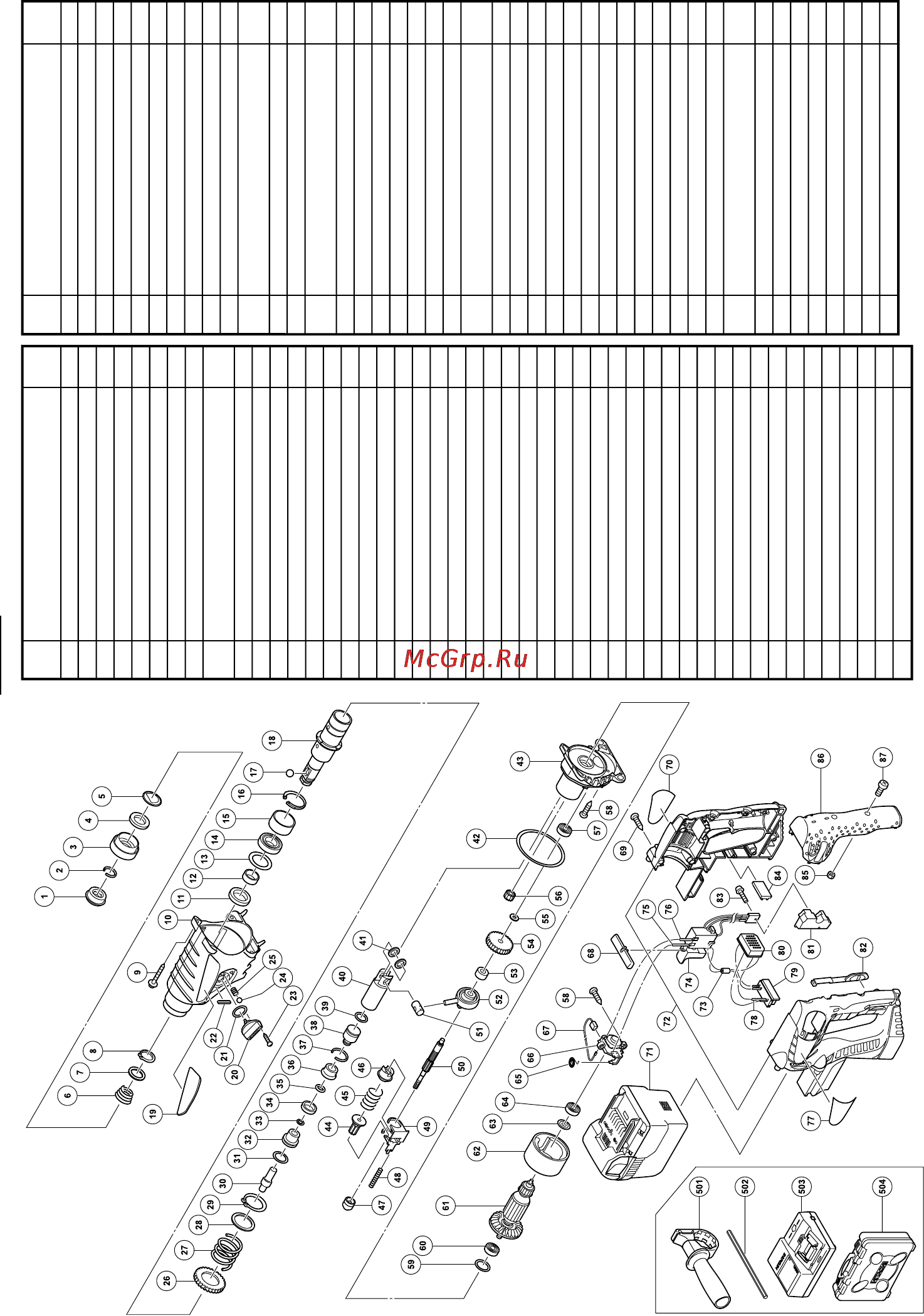

Hitachi DH 25 DL [79/86] Dh3 dal

DH36DAL

Item

No.

Part Name Q’TY

1 FRONT CAP 1

2 STOPPER RING 1

3 GRIP 1

4 BALL HOLDER 1

5 HOLDER PLATE 1

6 HOLDER SPRING 1

7 WASHER (B) 1

8 RETAINING RING FOR D20 SHAFT 1

TAPPING SCREW (W/FLANGE)

D5×25

10 GEAR COVER (A) 1

11 OIL SEAL 1

12 SLEEVE 1

13 FELT PACKING (B) 1

14 BALL BEARING 6904DDPS2L 1

15 SLEEVE (A) 1

16 RETAINING RING 37MM 1

17 STEEL BALL D7.0 1

18 CYLINDER 1

19 HITACHI PLATE 1

20 CHANGE LEVER (A) 1

21 O-RING (S-18) 1

22 FELT PACKING 1

23 TAPPING SCREW D2.6×10 1

24 STEEL BALL D3.97 1

25 SPRING (H) 1

26 SECOND GEAR 1

27 SPRING (A) 1

28 WASHER (A) 1

29 RETAINING RING D30 1

30 SECOND HAMMER 1

31 O-RING (1AP-20) 1

32 HAMMER HOLDER 1

33 O-RING (B) 1

34 DAMPER (A) 1

35 O-RING (C) 1

36 DAMPER HOLDER 1

37 STOPPER RING 1

38 STRIKER 1

39 O-RING (I.D. 16) 1

40 PISTON 1

41 WASHER (C) 2

42 O-RING (I.D. 72) 1

43 INNER COVER ASS’Y (INCLUD.56) 1

44 SECOND PINION 1

45 CLUTCH SPRING 1

46 CLUTCH 1

47 PINION SLEEVE 1

Item

No.

Part Name Q’TY

48 SPRING (C) 1

49 LOCK PLATE 1

50 SECOND SHAFT (A) 1

51 PISTON PIN 1

52 RECIPROCATING BEARING 1

53 COLLAR 1

54 FIRST GEAR 1

55 SPACER 1

56 PINION 1

57 BALL BEARING 626VVC2PS2L 1

TAPPING SCREW (W/FLANGE)

D4×16

59 O-RING (P-22) 1

60 BALL BEARING 608DDC2PS2L 1

ARMATURE AND PINION ASS’Y

(INCLUD.55,59,62,63) 1

62 MAGNET 1

63 WASHER (A) 1

64 BALL BEARING 608DDC2PS2L 1

65 SPRING 2

66 BRUSH HOLDER 1

67 CARBON BRUSH 2

68 PUSHING BUTTON 1

TAPPING SCREW (W/FLANGE)

D4×20

70 NAME PLATE 1

71 BATTERY BSL3626 2

72 HOUSING (A).(B) SET 1

73 FERRITE CORE 1

74 DC-SPEED CONTROL SWITCH 1

75 INTERNAL WIRE (RED) 1

76 INTERNAL WIRE (BLACK) 1

77 HITACHI LABEL 1

78 INTERNAL WIRE 1

79 BATTERY TERMINAL 1

80 CONTROLLER 1

81 HEAT SINK 1

82 SHIFT KNOB 1

MACHINE SCREW (W/WASHERS)

M3×12

84 RUBBER HOLDER 1

85 NUT M4 2

86 GRIP COVER 1

87 MACHINE SCREW M4×82

501 SIDE HANDLE 1

502 DEPTH GAUGE 1

503 CHARGER (MODEL UC36YRL) 1

504 CASE 1
