Hitachi DH 25 DL [9/86] English
![Hitachi DH 25 DL [9/86] English](/views2/1000418/page9/bg9.png)
8
English
䡬 Anchor setting adapter (for manual hammer)
4. Bolt placing operation with Chemical Anchor.
(rotation + hammering)
5. Demolishing operation (Hammering only)
(Model DH25DAL and DH36DAL only)
Bull point (Round type) (SDS-plus shank)
Bull point (Square type) (SDS-plus shank)
6. Groove digging and edging (Hammering only)
Cold chisel (SDS-plus shank) (Model DH25DAL and
DH36DAL only)
Cutter (SDS-plus shank) (Model DH25DAL and
DH36DAL only)
7. Grooving (Hammering only)
Grooving chisel (SDS-plus shank) (Model DH25DAL
and DH36DAL only)
8. Drilling holes and driving screws (rotation only)
䡬 Drill chuck, chuck adapter (G) and chuck wrench
9. Drilling holes (rotation only)
䡬 13 mm drill chuck ass’y (include chuck wrench
ass’y) and chuck (for drilling in steel or wood).
(SDS-plus shank)
12.7 mm Chemical Anchor Adapter
19 mm Chemical Anchor Adapter
Standard socket
on the market
( )
Special
screw
Drill chuck (13VLR) Chuck adapter (G)
(SDS plus shank)
Chuck wrench
Drill chuck (13VLA) Chuck adapter (D)
(SDS plus shank)
Chuck wrench
Anchor size
W1/4"
W5/16"
W3/8"
W1/2"
W5/8"
Anchor setting adapter
(for manual hammer)

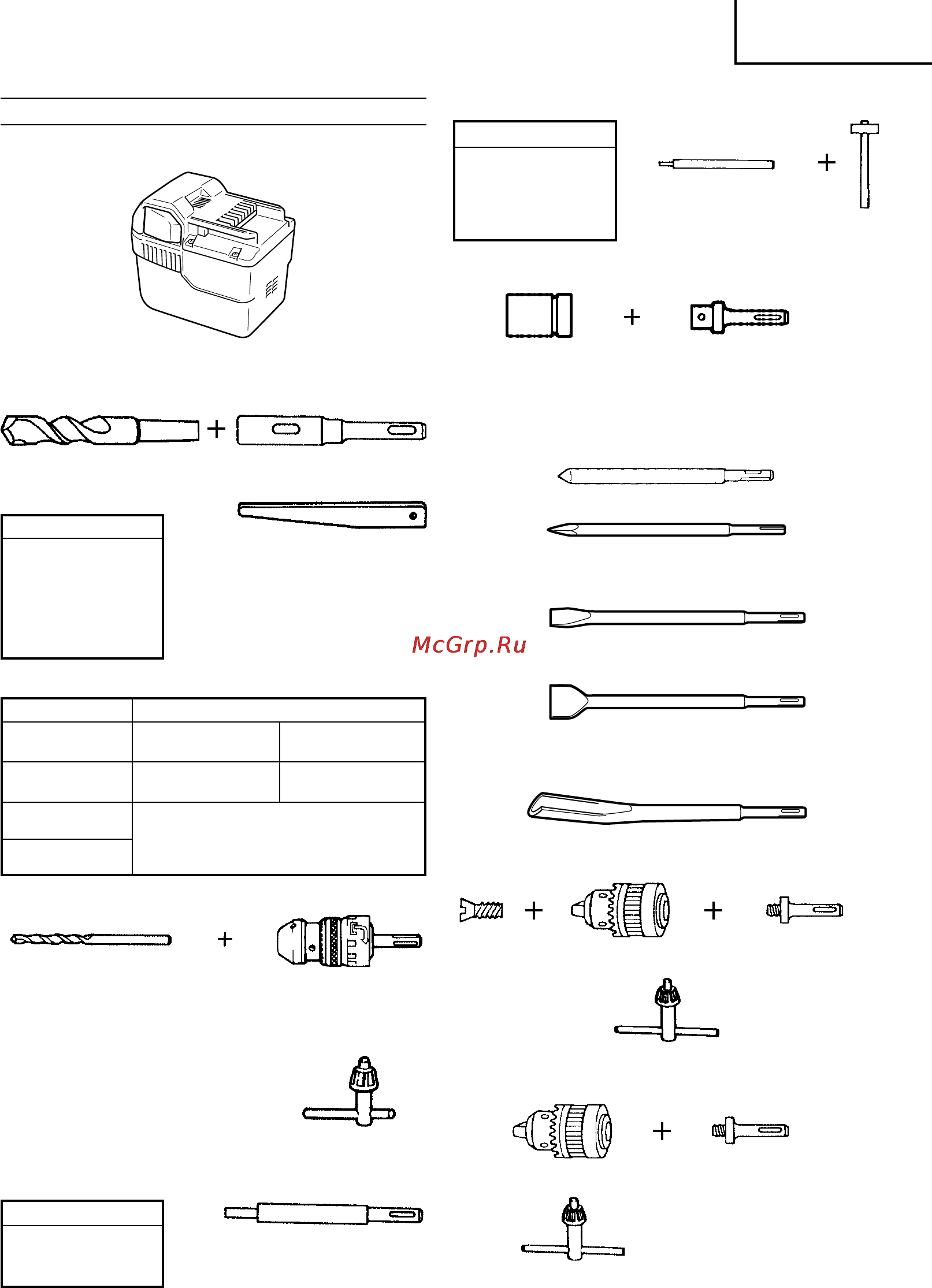

OPTIONAL ACCESSORIES (sold separately)
1. Battery (BSL2530, BSL3626)
It may be convenient to prepare some extra batteries.
2. Drilling anchor holes (rotation + hammering)
䡬 Drill bit (taper shank) and taper shank adapter
Outer diameter
11.0 mm
12.3 mm
12.7 mm
14.3 mm
14.5 mm
17.5 mm
21.5 mm
Taper mode Applicable drill bit
Morse taper Drill bit
11.0 – 17.5 mm
(No. 1) (taper shank)
Morse taper Drill bit
21.5 mm
(No. 2) (taper shank)
A-taper
B-taper
Taper shank adapter formed A-taper
or B-taper is provided as an optional
accessory, but drill bit for it is not
provided.
Taper shank adapter
(SDS plus shank)
Drill bit (taper shank)
Cotter
13 mm Hammer
Drill Chuck
(SDS plus shank)
Impact Drill Application
Straight Shank Bit
()
䡬 13 mm Hammer Drill chuck and Chuck wrench
Anchor size
W1/4"
W5/16"
W3/8"
3. Anchor setting (rotation + hammering)
䡬 Anchor setting adapter (for rotary hammer)
Anchor setting adapter
(for rotary hammer)
(SDS plus shank)
Chuck wrench
Drill bit
Taper shank adapter
