132D-Link DIR-685 User Manual
Section 7 - LCD Screen Options

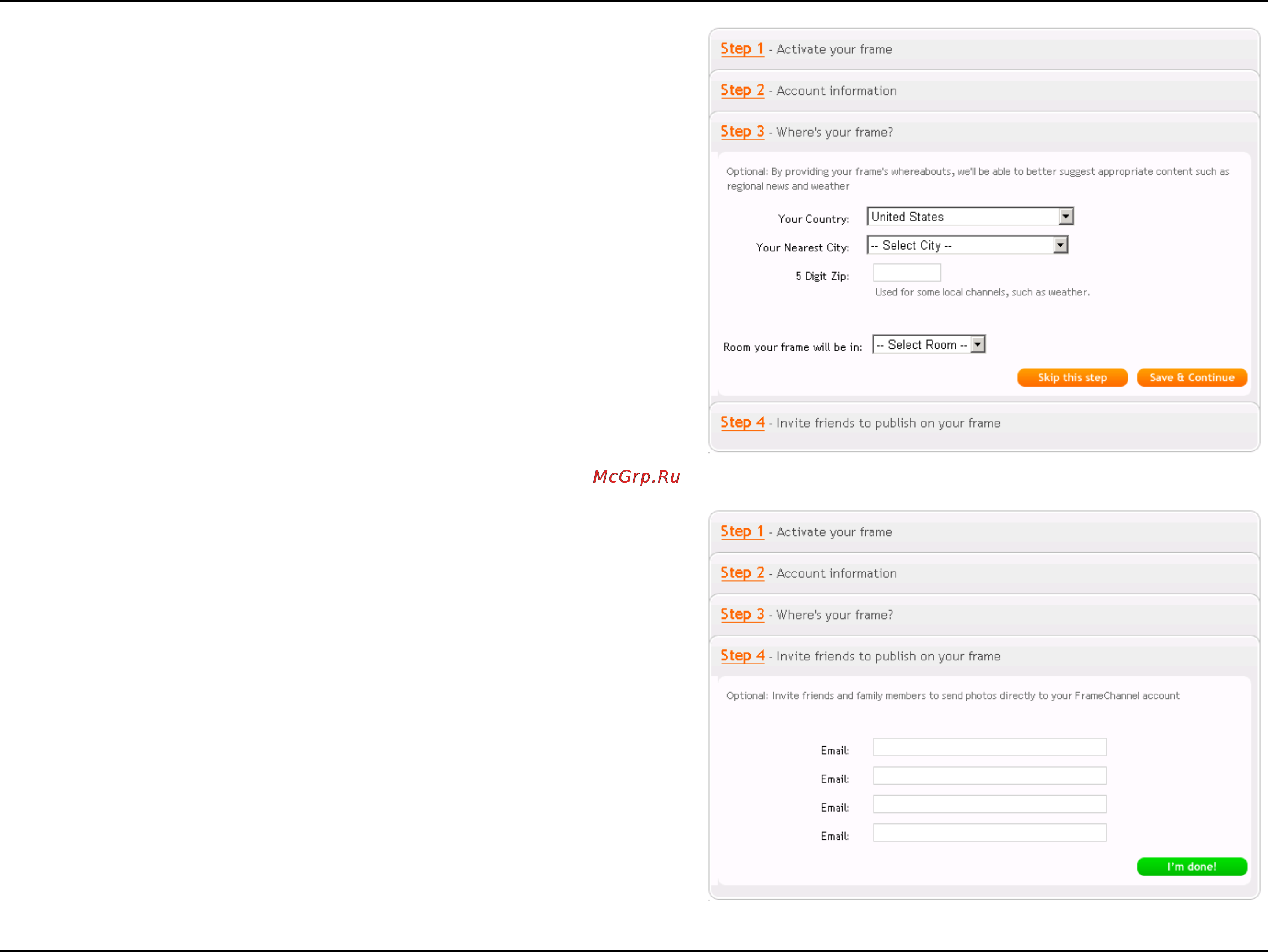

8. You may invite your friends to join or click I’m done! to
begin your FrameChannel experience.
7. Enter the remaining information for your account and
click Save & Continue to proceed.
