133D-Link DIR-685 User Manual
Section 7 - LCD Screen Options
9. Once your account is active, you can use the FrameChannel website to select the channels that you would like to
display on your frame.

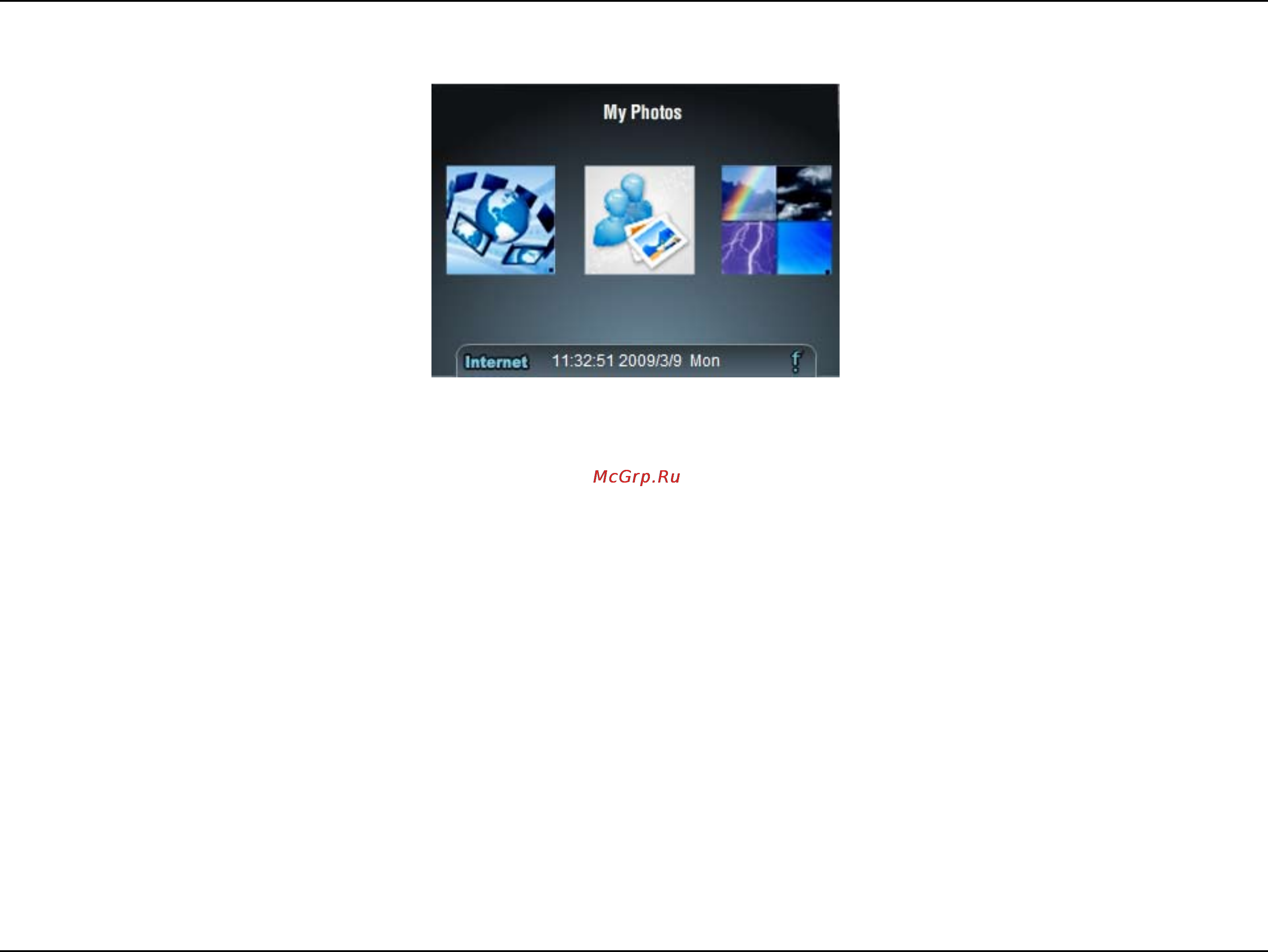

To immediately view changes to your channel, open FrameChannel from the router’s LCD menu, and use the touch
pad buttons to select the item labeled Refresh Channel.
Note: The Reset Channel button of the FrameChannel menu will clear all of your FrameChannel information from the
router. After resetting the channel information, a new activation code will be displayed.
