D-Link DSM-G600 [15/74] Connect now continued
![D-Link DSM-G600 [15/74] Connect now continued](/views2/1045701/page15/bgf.png)
15
DSM-G600 User’s Manual
D-Link Systems, Inc.

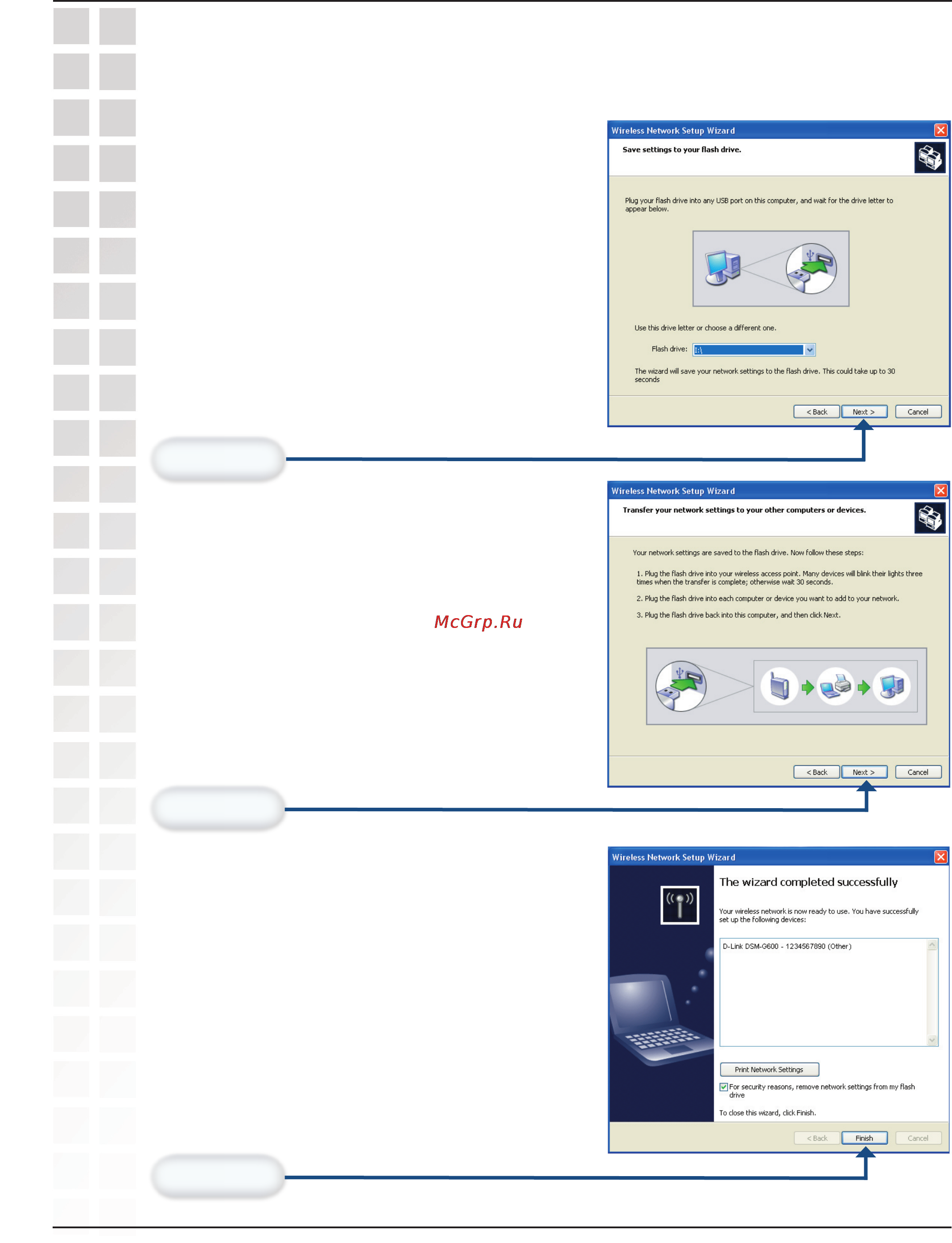

This screen appears when the WEP or WPA
key has been assigned. Follow the directions
on the screen
to transfer settings to the USB
flash drive.
This screen appears after the settings are
successfully transferred to the USB flash drive.
Follow the directions on the screen.
When inserting the USB flash drive into the
USB port on the DSM-G600, the USB LED will
blink as it detects the USB flash drive and then
turn off. The USB LED will then blink quickly 3
times and turn off again. Once the USB light
is solid and the WLAN light blinks, you may
unplug the USB flash drive
.
When the DSM-G600 wireless setup is
successful, a window similar to this one will
appear.
You have completed the wireless configuration
of the DSM-G600.
Windows
®
Connect Now (Continued)
Windows Connect Now
Click Next.
Click Next.
Click Finish.
