D-Link DSM-G600 [7/74] Hardware overview
![D-Link DSM-G600 [7/74] Hardware overview](/views2/1045701/page7/bg7.png)
7
DSM-G600 User’s Manual
D-Link Systems, Inc.

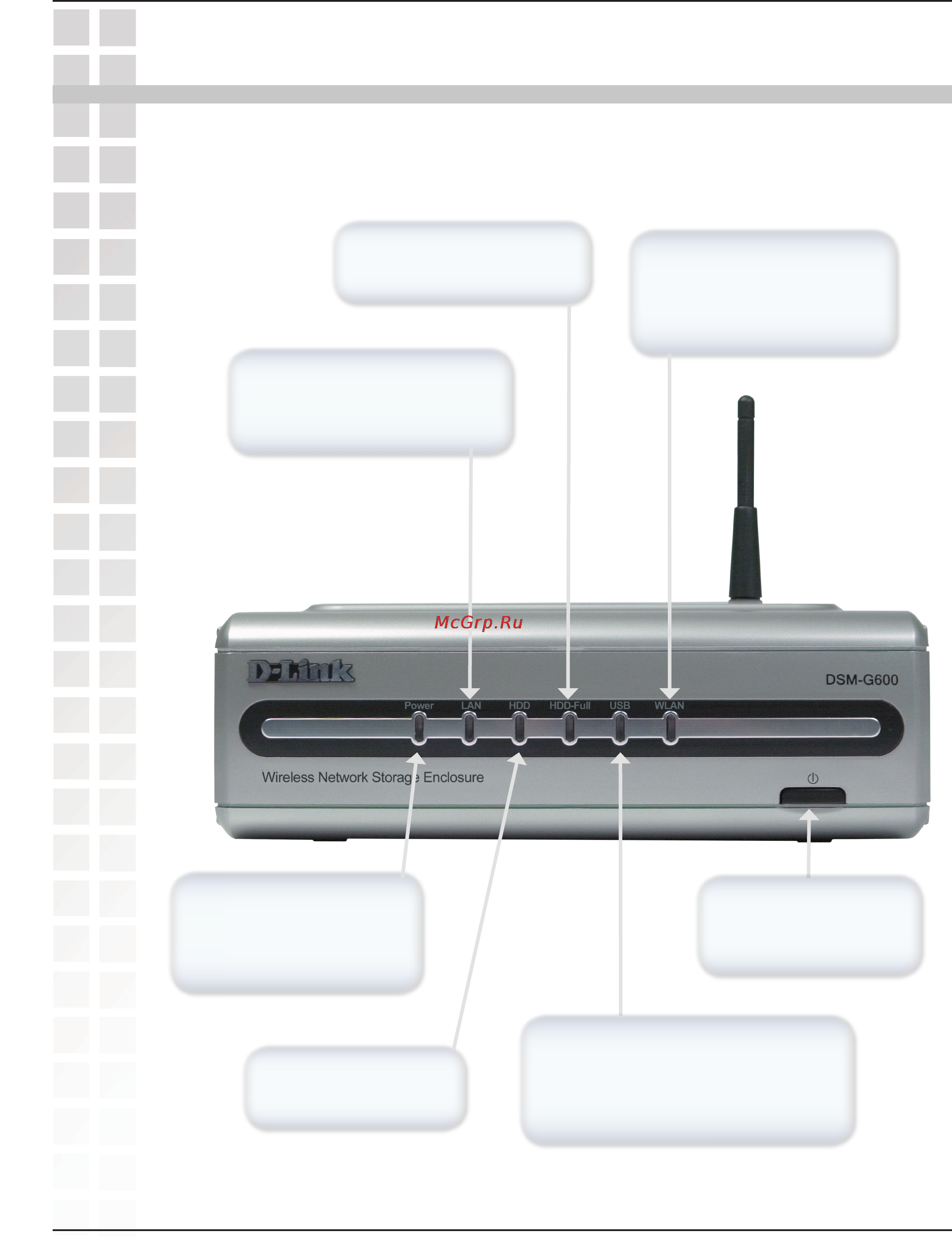

Hardware Overview
Front Panel
Hardware Overview
LAN LED
Solid indicates an Ethernet
connection. Blinking indicates
traffic at the Ethernet port.
HDD LED
Indicates activity on the
internal hard drive.
Power LED
Solid indicates a connection
to a good power source.
Blinking indicates startup,
rebooting, or formatting
.
USB LED
A solid light indicates that a USB
drive is connected. Blinking indicates
the USB drive is being detected
when first plugged in.
HDD-Full LED
Indicates that the internal
hard drive is out of space.
WLAN LED
A solid light indicates that
wireless is ready. This LED
blinks during wireless data
transmission.
Power Button
Press to turn the device
on. To turn off, hold button
in until the unit shuts off.
