50
DSM-G600 User’s Manual
D-Link Systems, Inc.

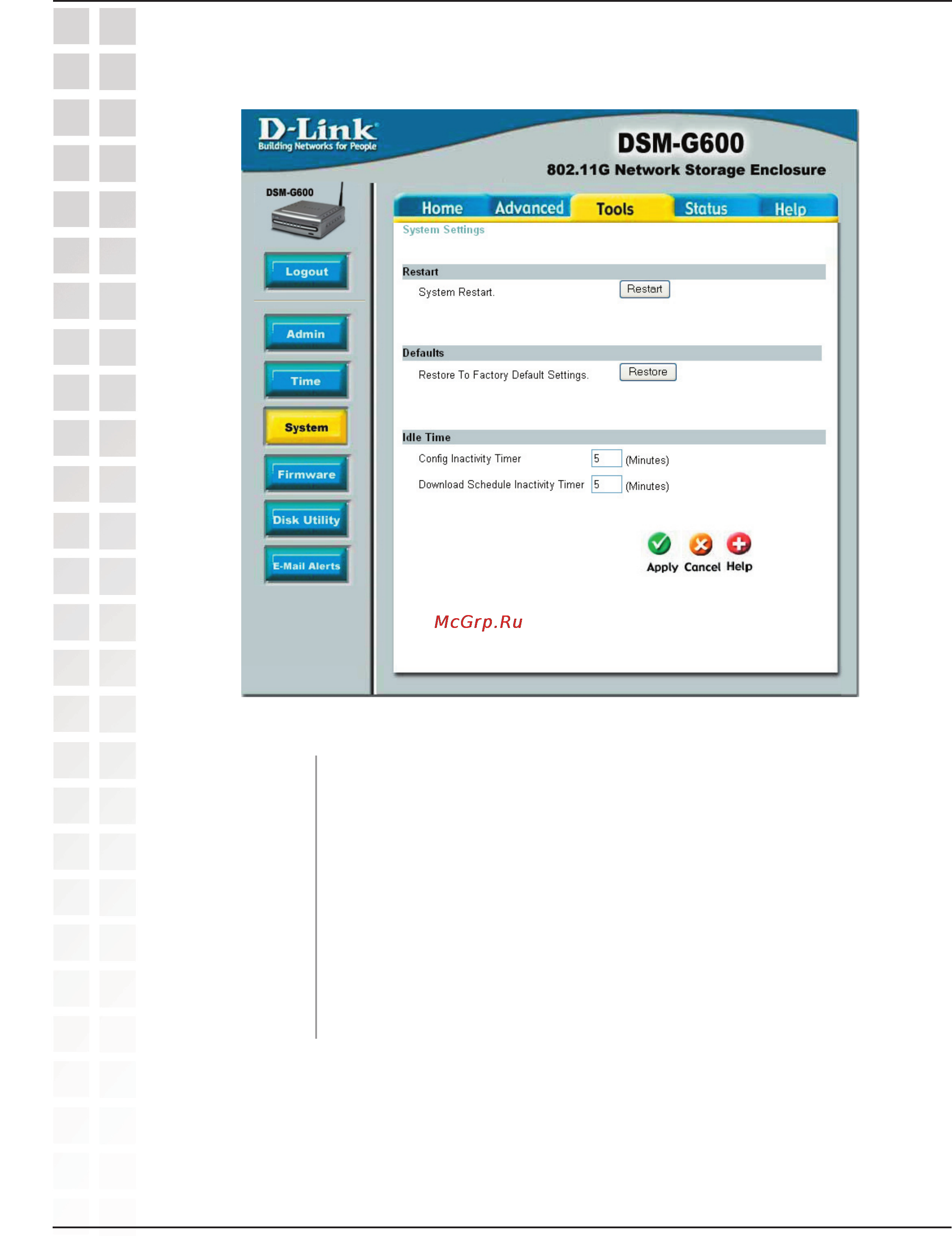

Tools > System
Using the Configuration Utility
System Restart:
Restore to Factory
Defaults:
Click Restart to reboot your DSM-G600.
Click
Restore to reset the DSM-G600 back to the
factory default settings - erasing all changes you
have made.
Enter the time (in minutes) for the idle time in both
the Scheduling and Config sections. Users will be
logged off if the idle time is exceeded.
Apply:
Click Apply to save your settings.
Idle Time:
