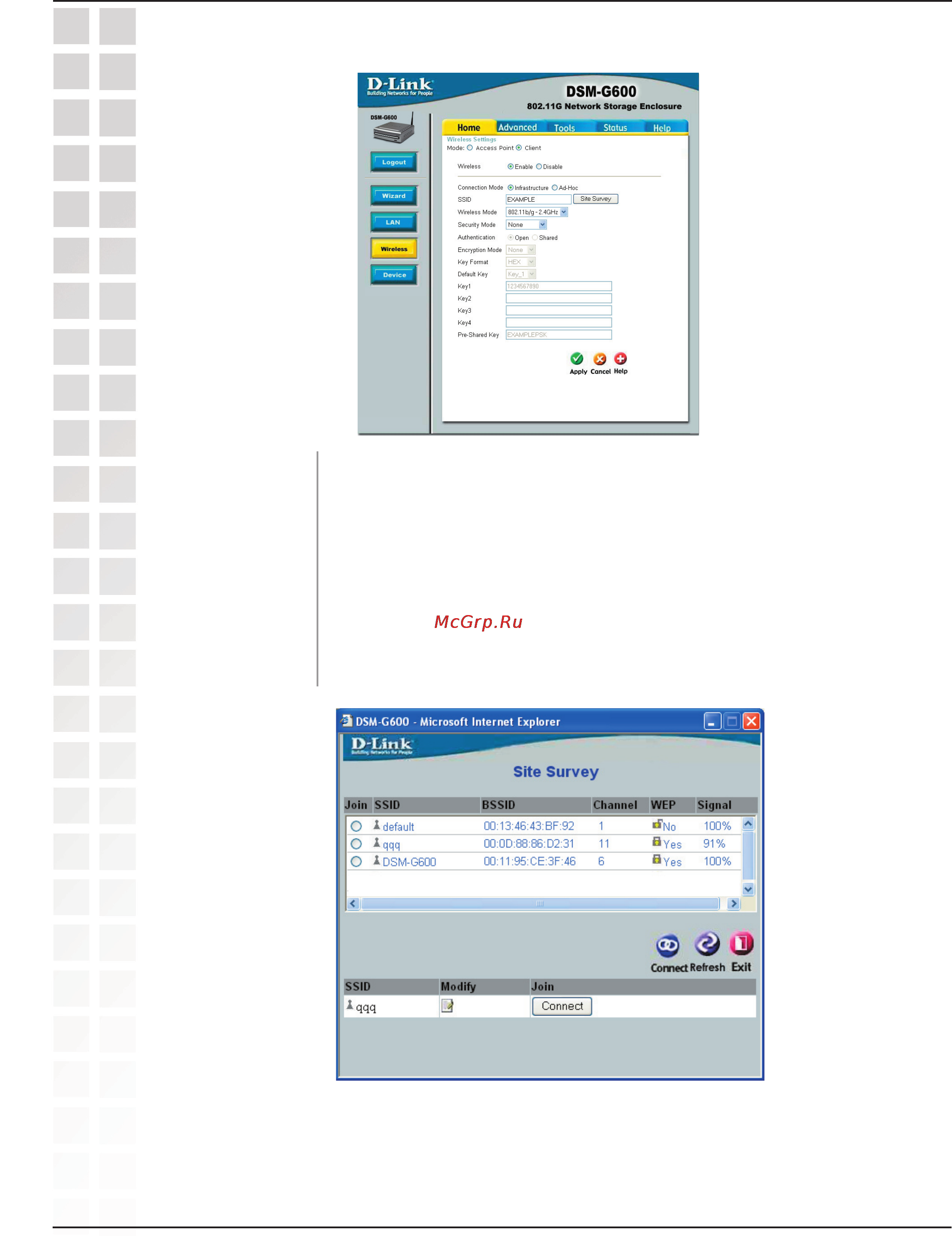

![D-Link DSM-G600 [31/74] Wireless client mode](/views2/1045701/page31/bg1f.png)
31
DSM-G600 User’s Manual
D-Link Systems, Inc.
Home > Wireless (Client Mode)
Mode:
Wireless:
Connection Mode:
SSID:
Select Enabled or Disabled.
Select the network type:
Infrastructure - Connect to an access point or router.
Ad-Hoc - Connect to another wireless client (peer-to-peer).
Enter the SSID of your network. You may click Site Survey to
select an available wireless AP or router.
Please refer to page 13 if you wish to use Windows
®
Connect Now to configure the wireless settings.
Select Client.
Using the Configuration Utility
The Site Survey window will allow you to view and connect to any existing wireless
network in your area. Click the radio button next to the network and click
Connect.
