D-Link DSM-G600 [8/74] Hardware overview
![D-Link DSM-G600 [8/74] Hardware overview](/views2/1045701/page8/bg8.png)
8
DSM-G600 User’s Manual
D-Link Systems, Inc.
Hardware Overview

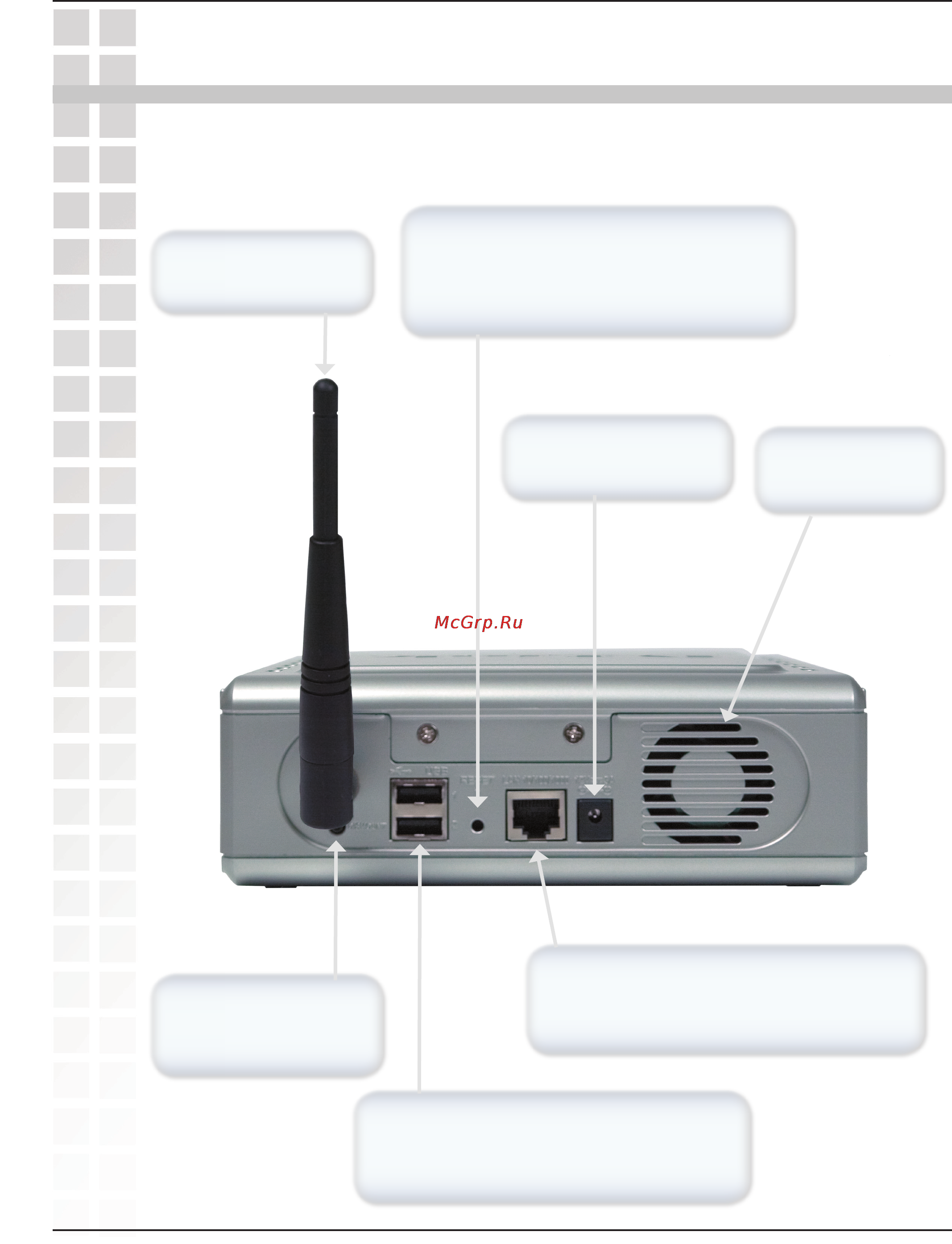

Rear Panel
Hardware Overview
Reset Button
Pressing the reset button for 10 seconds with
a paper clip will restore the unit to the original
factory default settings. The button is inside the
hole to prevent an accidental reset.
USB 2.0 Ports
Use these ports to connect USB 2.0 drives.
USB 1.1 drives may also be connected but will
be limited to USB 1.1 speed.
Power Receptor
Receptor for the supplied
power adap
ter.
LAN Port
Connects to your Ethernet network. The LAN
port supports Auto MDI/MDI-X, allowing you to
connect a straight-through or crossover cable.
Antenna
Connects to a wireless
network.
Dismount Button
Press to safely remove
USB drives from the
DSM-G600.
Fan/Vent
Fan to cool the
internal hard drive.
