D-Link DSM-G600 [64/74] Assigning a static ip address in windows xp 2000
![D-Link DSM-G600 [64/74] Assigning a static ip address in windows xp 2000](/views2/1045701/page64/bg40.png)
64
DSM-G600 User’s Manual
D-Link Systems, Inc.
Note: DHCP-enabled routers will automatically assign IP addresses to the computers
on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you
are using a DHCP-capable router you will not need to assign static IP addresses.
If you are not using a DHCP capable router, or you need to assign a static IP address,
please follow these instructions:

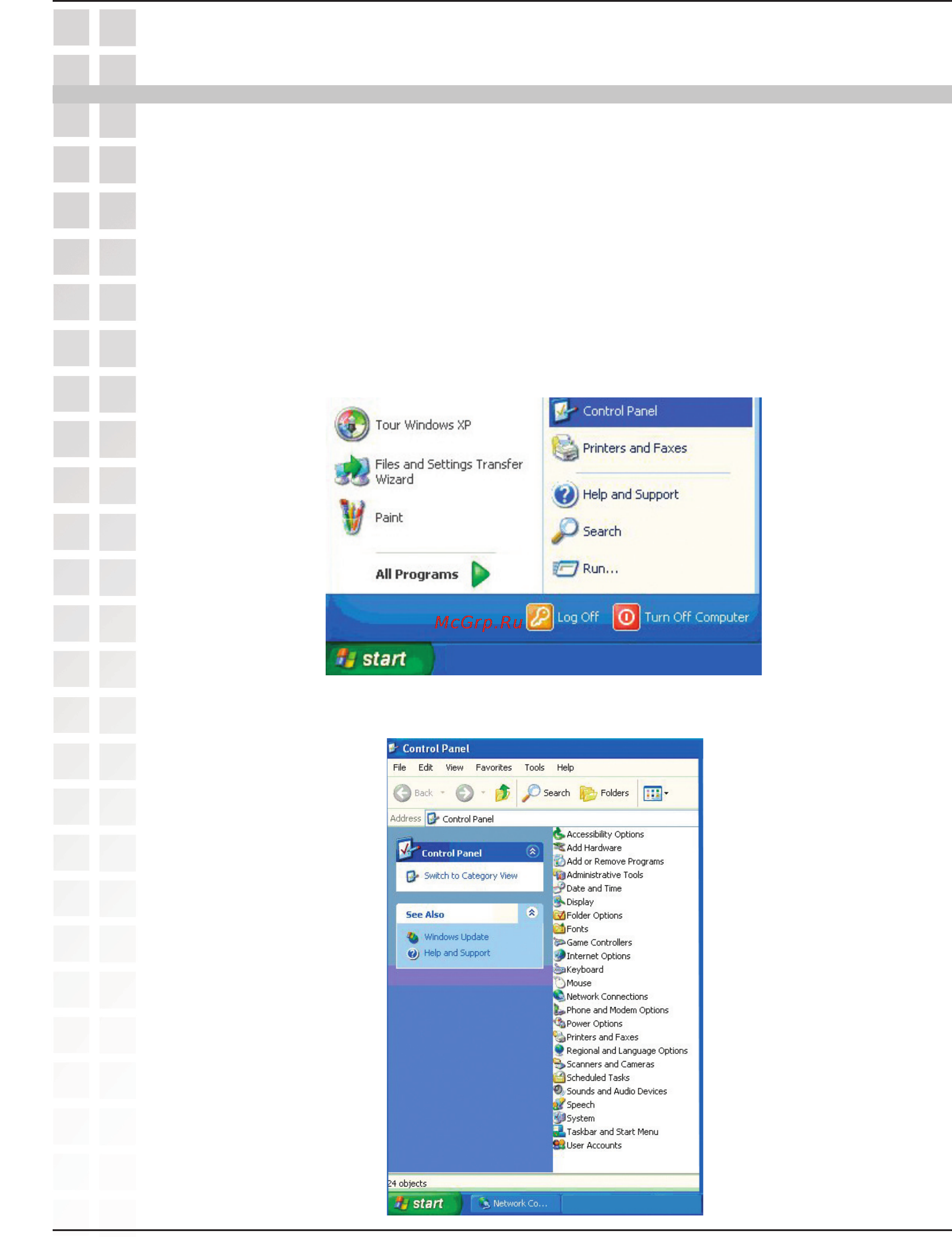

Go to Start.
Double-click on Control Panel.
Assigning a Static IP Address in Windows XP/2000
Networking Basics
Double-click on Network Connections.
